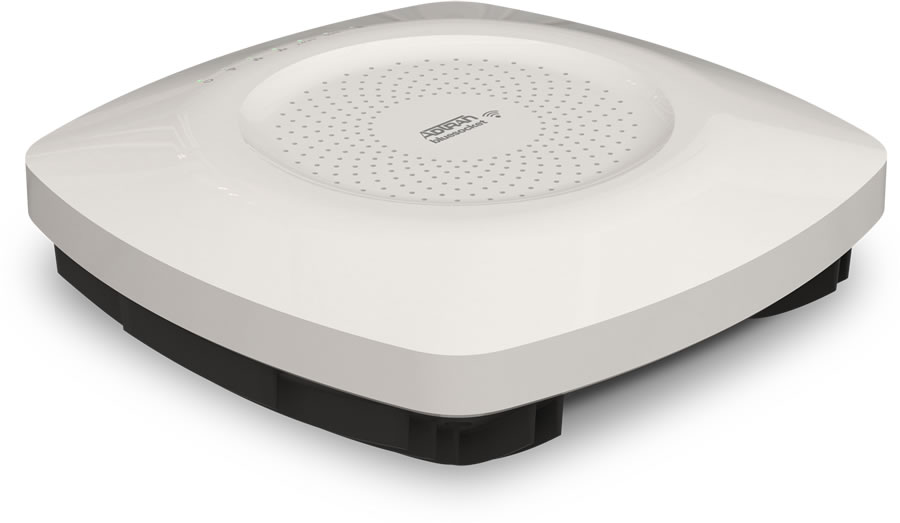

Bluesocket 3040 802.11ac Wave 2 (4x4:4) indoor AP - 1700965F1

The Bluesocket 3040 APs provide the highest performance and reliable coverage in ultra-high density wireless environments such as indoor arenas, conference centers, libraries, and other high traffic areas. The Bluesocket 3040 Series APs support the newer generation of laptops with three-stream radio support, and offer higher receive sensitivity on both the 2.4 and 5 GHz radios to compensate for Bring Your Own Devices (BYOD) such as smartphones and tablets and Internet of Things (IoT) devices that have a fraction of the transmit power of traditional laptops.

High-Performance, Reliable Connectivity

The ADTRAN 3040 and 3045 indoor APs offer carrier-class performance with four radios including concurrent 5 and 2.4 GHz radios with four transmit and four receive streams providing data rates up to 1.733 Gbps on the 5 GHz radio and 800 Mbps on the 2.4 GHz radio for a total of 2.5 Gbps, a dedicated dual-band scanning/ security radio for DynamicRF Radio Resource Management (RRM) and Wireless Intrusion Detection (WIDS), and an integrated Bluetooth Low Energy (BLE) radio. The ADTRAN 3040 AP includes a total of 10 internal modular high-efficiency Planar Inverted-F omnidirectional antennas (PIFA) - four internal antennas with 6 dBi peak gain for the 5 GHz radio, four internal antennas with 4 dBi peak gain for the 2.4 GHz radio, one internal antenna with 3/5 dBi peak gain for the dual-band scanning/ security radio (2.4/5 GHz respectively) and one internal antenna with 4 dBi peak gain for the BLE radio. The ADTRAN 2020 AP is fully functional with the power delivered

Key Features:

• Quad Radio; concurrent 2.4 and 5 GHz radios, dedicated dual-band scanning/security radio and integrated BLE
• Zero-touch AP deployment - APs automatically discover vWLAN, download firmware, and download configuration
• DynamicRF Radio Resource Management (RRM) Technology with dedicated scanning radio - automatically configures optimal radio settings to maximize performance
• DynamicSteering – Band/client steering, load balancing and sticky client prevention technology allows the Wi-Fi infrastructure to take charge making informed, coordinated, connectivity and roaming decisions
• Layer 7 Device Fingerprinting provides reporting and analytics of device types and device-specific policies
• Integrated wireless intrusion detection system (WIDS) with dedicated security radio to identify rogue access points and wireless attacks
• Stateful firewall for highest security at the edge
• Powered via 802.3at (POE+)
