hiX 5635 - IP Multi-service Access Node - 1132009G1

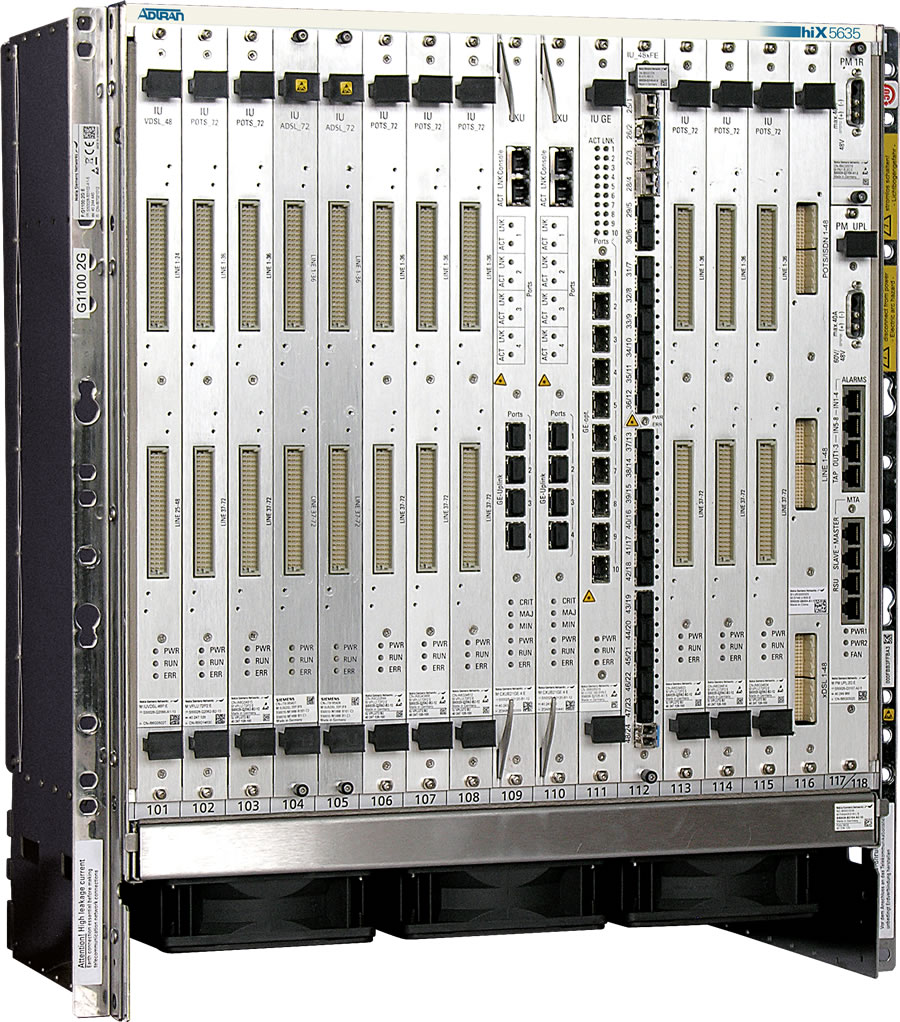

The hiX 5635 is a high performance, carrier-class IP multi-service access and aggregation node designed to ETSI standards. It bridges the gap between the carrier IP network and the end subscriber for POTS, ISDN, VDSL, SHDSL, ADSL, Fast Ethernet, GbE, IPTV and other services. The hiX 5630 is built upon a pure IP core and supports both legacy and emerging service interfaces over copper and fibre. This mix of services on one platform enables service providers to future proof their networks. New services can be deployed with the simple change of a line card, equipment obsolescence can be avoided and network investments protected. The chassis supports fourteen service slots enabling the system to deliver up to 1008 ports making it ideal for large and mid-size applications at the Central Office or deep in the network. Service slots include ADSL2+ (72 ports/slot), POTS (VoIP capable, 72 ports/slot), VDSL2 (48 ports/slot), ISDN (32 ports/slot), GbE (10 ports/slot), Fast Ethernet (48 ports/ slot) and more. With the 10 GB capable redundant star backplane architecture, the hiX 5635 provides high capacity and high reliability in one system. This is complemented by redundant central control cards, redundant 1 GbE or 10GE uplinks on the central control card and redundant power supplies making the hiX 5635 truly carrier-grade.

High performance, carrier-class IP multi-service access and aggregation node designed to ETSI standards

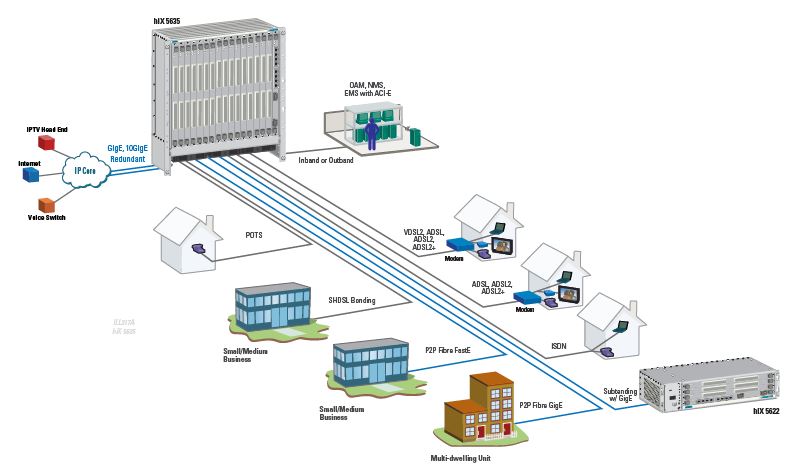

The system provides voice and data services as well as a simple migration path from legacy interfaces to IP. Voice services can be transitioned from POTS or ISDN to VoIP for example. Broadband data access can be provided using SHDSL, ADSL or VDSL (with or without splitters) as well as high-density fibre using Fast Ethernet or Gigabit Ethernet. This unique mix of services from one single IP based platform enables service providers to quickly adapt to new business opportunities and remain highly competitive. In order to ensure maximum flexibility, the common equipment, and line cards are temperatures hardened allowing the system to be deployed virtually anywhere, ranging from the Central Office to compact outdoor cabinets. The hiX 5635 is managed by ADTRAN’s Access Integrator Ethernet (ACI-E) Element Management System. The ACI-E EMS and hiX 5635 nodes communicate using SNMP via in-band or out-band channels. The ACI-E provides a Graphical User Interface (GUI) and northbound interfaces such as SNMP, TMF CORBA, WSPI (Web service-based XML provisioning I/F) for smooth integration into service provider operational systems.

Key Features:

• True IP multi-service access node
• Advanced service delivery - IPTV, POTS, ISDN, Business & Residential Ethernet, xDSL
• A carrier-grade gateway between the provider network and service subscriber
• Up to 108 Gbit/s Switching Capacity
• 14 Service Slots
• Identical service cards for all shelf-based hiX5600
• Copper and fibre transport and access
• Very high density for POTS and DSL access (up to 1008 ports per shelf)
• Redundant architecture (Control card, uplink, Bus, Power)
• Digital and metallic onboard test for voice and xDSL
• Supported by ACI-E EMS
• Temperature hardened (can be deployed in an outside plant)
• Cabinet solutions available

Solutions:
