TA 850

Live Search

Tel: 410-583-1701     Email: Sales & Technical

  • Cost-effective single T1/FT1 TDM, T1 ATM, or SDSL IAD
  • Modular chassis supports voice-only or voice and data
  • Migration path to packet technologies such as ATM with software upgrade
  • VoATM and VoDSL support
  • Compact size, 3.5"(h) x 8.5"(w) x 11"(d)
  • Two common slots, one Power Supply Unit (PSU) slot and one System Controller slot for Ban Controller Unit (BCU) or Router Controller Unit (RCU)
  • Integral FT1/DSX-1 port (activated by BCU L2 or T1 RCU)
  • Integral IP router (10BaseT Ethernet interface), SNMP, and V.35 Nx56/64 interface for integrated data support and Internet access activated with any version of the RCU
  • Six access module slots plus special AB slot
  • Six slots for FXS, FXO, E&M, U-BR1TE, DSO DP, OCU DP, and Total Reach DDS
  • Special AB slot for Nx56/64 data module (activates V.35 DTE when BCU L1/L2 is installed in system controller slot), Echo Cancellation Module, or Echo Cancellation/ADPCM Module
  • Supports up to 24 FXS/FXO interfaces
  • 50-pin Amphenol connector for subsciber loop terminations
  • Rugged metal chassis is NEBS Level 3 and UL 1950 compliant
  • AC or DC power options
  • Optional 48 Volt, 8-hour battery backup
  • Wallmount or rackmount design (19" and 23") rackmount brackets available
  • 10-year warranty

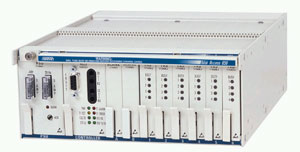

The Total Access� 850 is an integrated access device designed for cost-effective deployment of voice and data services at the customer�s premises. The Total Access 850 benefits enterprise customers as well as inte-grated communications providers, such as CLECs, ILECs and ISPs, who require a customer premises device that integrates voice and data functions, and provides a viable migration path from TDM to packet-based technology.

The Total Access 850 features remote management, an integrated IP router, and special services slots. Total Access 850 is a modular device with two common slots and eight access slots. Common cards required for operation are a power supply unit (PSU) and a system control unit. System Control Units include either a Bank Control Unit (BCU) or a Router Control Unit (RCU). With a BCU, the Total Access 850 can be configured as a cost-effective TDM channel bank. The BCU activates a T1 network interface and a fractional T1 (DSX-1) interface located on the rear of the chassis.

The RCU is another system control option that offers TDM functionality and a migration path to packet technologies including ATM. The RCU also offers an integral IP router and activates a Nx56/64 V.35 port on the rear of the chassis for connecting an additional external data device. Additionally, a variety of user modules are available for use with either the BCU or RCU. Six access slots allow the user to combine a variety of voice and data services. Up to six Quad FXS or Quad FXO access modules can be installed to support up to 24 analog voice lines. Other access modules for data applications include the OCU DP and ISDN U-BR1TE. The other two access slots are for future hardware options. Using local or remote inband manage-ment, carriers can turn features, functions and access ports on and off. Easy access to modules, common cards, the power supply, and the optional battery back-up system simplify maintenance procedures. Hot-swap-pable modules may be replaced without disrupting other units. The four-circuit-per-module design ensures that a maximum of only four analog circuits are affected when replacing a module.

A compact, NEBS-compliant cabinet suit-able for the customer premises or the central office provides added safety and reliability. The 2U design uses a minimum amount of rack space with an 8.5-inch by 11-inch foot-print the size of a standard piece of notebook paper. Two Total Access 850 systems can be mounted side-by-side in either 19-inch or 23- inch relay racks. Pre-configured packages are available.
