602 10G Business Class ONT - 1287800F1
The ADTRAN 602 10G optical network terminal (ONT), part of the ADTRAN family of next-generation 10G ONTs, that uses a flexible optics approach allows service providers to support existing fiber-to-the-home (FTTH) subscribers while also providing a path to higher- bandwidth business and backhaul services. The 602 10G PON ONT supports the delivery of symmetric 10G services making it an ideal solution for businesses requiring high-bandwidth, redundant connections or for 5G x-haul needs. The 602 10G ONT utilizes both fixed XGS-PON (1577 nm downstream and 1270 nm upstream wavelengths) as well as tunable Next-Gen PON optics to deliver 10Gbps data rates. With the 602 10G ONT, service providers can overlay existing GPON (2.5Gbps) networks and provide the capability to offload business customers and offer higher-speed services.
Delivering Cost-Effective Converged
The biggest challenge facing Next Gen 10G PON networks is coming up with a single system that meets the scale and flexibility needs of premium business and backhaul services, while also delivering on the price points needed for mass-market residential applications.

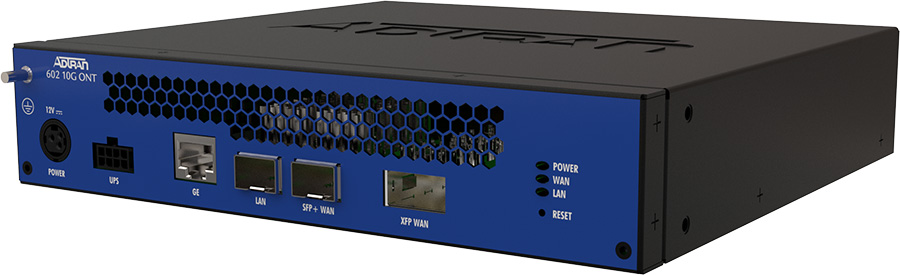

The ADTRAN 602 10G optical network terminal (ONT), part of the ADTRAN family of next-generation 10G ONTs, that uses a flexible optics approach allows service providers to support existing fiber-to-the-home (FTTH) subscribers while also providing a path to higher- bandwidth business and backhaul services. The 602 10G PON ONT supports the delivery of symmetric 10G making it an ideal solution for businesses requiring high-bandwidth, redundant connections or for 5G x-haul needs. The 602 10G ONT utilizes both fixed XGS-PON (1577 nm downstream and 1270 nm upstream wavelengths) as well as tunable Next Gen PONoptics to deliver 10Gbps data rates. With the 602 10G ONT, service providers can overlay existing GPON (2.5Gbps) networks and provide the capability to offload business customers and offer higher-speed services. On the PON side 602 10G ONT offers both SFP+ and XFP interfaces. On the subscriber side, both 1G Ethernet copper and 10G Ethernet SFP+ interfaces are provided allowing for symmetric 1Gor 10G service delivery. Carrier Ethernet 2.0 (CE 2.0) and MEF 2.0 services are supported allowing for SLA-based services.
Key Features:
- Cost-effective delivery of symmetric multi-gigabit services
- Supports CE 2.0/MEF 2.0 services
- Pluggable WAN interface for fixed wavelength or tunable optics
- Simple migration from fixed to tunable optics
- 10GE/1GE user interface
- Small 1RU half-rack form factor
- IPTV video support including IGMP snooping feature set
- Traffic management through priority queuing, scheduling, policing and traffic shaping
Solutions:
Have more questions about Adtran Telecom and Networking Access products or solutions? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
