Total Access 3000/3010 High-Speed Fiber Line Module - 1181455L1




Designed to be used in a Total Access 3000 Shelf, the High-Speed Fiber Line Module (HSF LM) has been designed to operate in multiple distinct applications. The primary applications involve interacting with the Total Access 1100F or Total Access 1200F. The Total Access 1100F/1200F are devices used to “host” the ever-popular Total Access 1148 and 1248 DSLAMs and provide a high-speed fiber connection to the network. In these applications, the Total Access 3000 may be populated with either an ATM or Ethernet switch module depending on the requirements of the existing network. The HSF may also be used with any standard compliant Ethernet device, including a switch, router, CPE or even an IAD. Please refer to the product detail page at www.adtran.com for additional information.



     Total Access 3000/3010 High-Speed Fiber Line Module - 1181455L1Total Access 3000 Primary Controller Unit (PCU) - 1181918L1



High-Density DSLAMs and Splitter Shelves

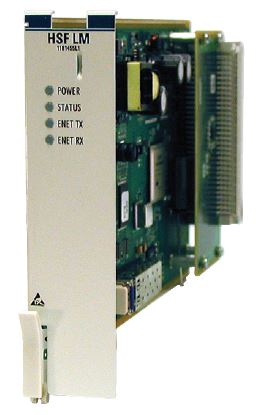

The High-Speed Fiber Line Module (HSF LM) is a revolutionary new module for the Total Access 3000 line of products. As the demand rises for higher speeds to support advanced applications for home and business DSL users, copper-fed DSLAMs can fall short of the mark. For this reason, ADTRAN introduces the HSF Line Module. The HSF provides a 10/100/1000 Mbps interface to ADTRAN DSLAMs and/or other compliant Ethernet devices. The HSF LM has been designed to operate in multiple distinct applications. The primary applications involve interacting with the Total Access 1100F or Total Access 1200F. The Total Access 1100F/1200F are devices used to “host” the ever-popular Total Access 1148 and 1248 DSLAMs and provide a high-speed fiber connection to the network. In these applications, the Total Access 3000 may be populated with either an ATM or Ethernet switch module depending on the requirements of the existing network. The HSF may also be used with any standard compliant Ethernet device, including a switch, router, CPE or even an IAD. The Total Access 3000 HSF module requires two slots in the Total Access 3000 chassis and has an SFP cage on the PCB for easy access. The front of the card is slotted on the top in such a manner that the signal media goes directly into the fiber routing tray installed above the chassis for a clean installation. The Total Access 3000 accepts up to 14 HSF modules or other modules can be combined with the HSF multiservice operation. The Total Access 3000 HSF supports High-Speed Fiber Line Module Total Access® 3000 High-Speed Fiber Line Module (HSF LM) 10/100/1000Base-LX/SX/ZX as well as 10/100/1000Base-T SFPs for a variety of customizable interfaces.





Key Features:



  • Supports 100/1000Base-LX/SX/ZX operation (with appropriate SFP)
  • Supports 10/100/1000Base-T operation (with appropriate SFP)
  • SFP interface
  • Performance monitoring
  • TL1 and SNMP management support via a Controller Unit
  • Software provisioning and troubleshooting menus via a Controller Unit
  • Front panel LEDs for Power, Status, Ethernet Transmit (TX) and Ethernet Receive (RX)
  • Dual wide slot
  • Single port upstream/downstream rates of 64/128 Mbps (packet-mode) with an ATM multiplexer (MUX)
  • Single port upstream/downstream rates of 160/320 Mbps (packet-mode) with an SM2 MUX
  • Operational temperature range of -40°C to +70.6°C





Solutions:

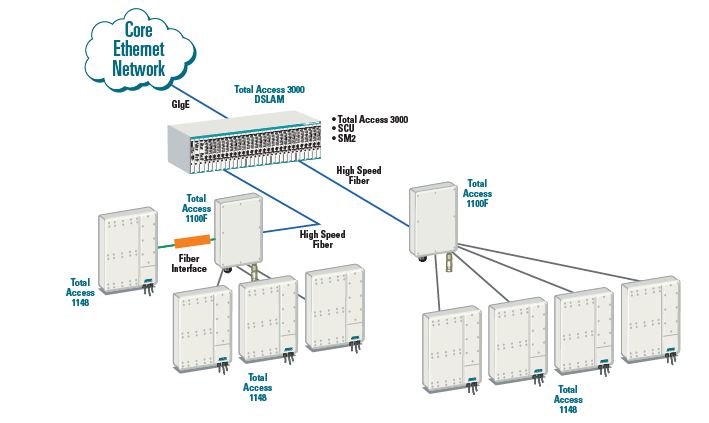

Total Access 3000/3010 High Speed Fiber Line Module - 1181455L1 - Application





Total Access 3000/3010 High Speed Fiber Line Module - 1181455L1 - Application
