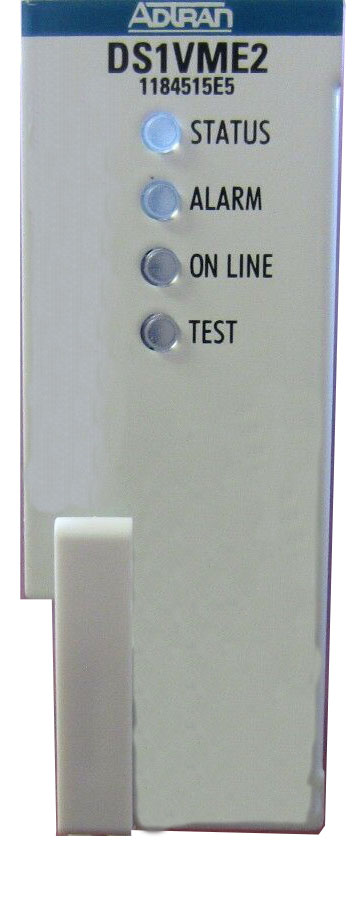

OPTI-6100 DS1 Tributary Module - VT Enhanced - 1184515E5
The ADTRAN OPTI-6100 delivers all the versatility and functionality that today's service providers need for cost-effective network expansion. The DS1 Tributary Module VT Enhanced (1184515E5) is a 28 port DS1 module, M13 mapped which multiplexes and demultiplexes the 28×VT1.5 of an STS-1 to/from 28×DS1 circuits.
OPTI-6100 is a high-performance OC-3/OC-12/OC-48 multiplexer
The feature set, small footprint, low cost, and diverse deployment options of the OPTI-6100 make it a powerful tool for optical delivery of DS1, DS3/EC-1 (STS-1 electrical interface), OC-3, OC-12, and Ethernet. It supports all of the maintenance and administration tools necessary for service providers to administer their networks efficiently. Its fully integrated design provides the management and redundancy features expected of carrier-class broadband multiplexers. The OPTI-6100 is the industry’s first OC-3/OC-12/OC-48 multiplexer to deliver a combination of DS1, DS3/EC-1s, Ethernet, OC-3 and OC-12 drops. ADTRAN provides the ability to utilize all of the bandwidth in an optical network interface for customer services without stranded bandwidth. Its compact design is significantly smaller than similar products and it delivers superior functionality at a fraction of the price.
Key Features:
- Maps 28×DS1 circuits to/from 28×VT1.5 paths in a SONET STS1
- AMI and B8ZS encoding/decoding
- Timing options:
- Derive from OMM
- Provide system timing to the chassis
- Equipment protection (1:1) via redundant modules
- STS-1 path protection and termination, performance monitoring, alarm surveillance, and provisioning
- Monitors DS1 for LCVs, LOS, LOF, AIS, CRC-6, RAI, and FE
- In-band and out-of-band (ESF-FDL) controlled loopbacks
- ESF, SF, SLC96, and unframed framing formats
- Auto frame format sensing (for ESF or SF framing)
- Auto In-Service (AINS)
- Centrally managed by the System Controller Module (SCM, P/N 1184500xx)
