Total Access 3000 Primary Controller Unit (PCU) - 1181918L1

Designed to be used in a Total Access 3000 Shelf, Works in conjunction with the Total Access 3000 DSLAM ECU PCU is installed in the primary shelf and is the focal point for all management functions carried out by the primary and expansion shelves Other modules in the system are provisioned and monitored either locally or remotely, via the PCU.

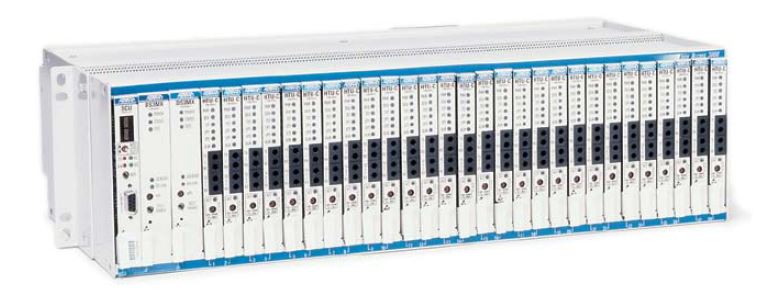

High-Density DSLAMs and Splitter Shelves

ADTRAN designs products that maximize functionality for its carrier customers. In that regard, the Total Access 3000/3010 PCU is installed in the primary shelf and is the focal point for all management functions carried out by the primary and expansion shelves. Other modules in the system are provisioned and monitored either locally or remotely, via the PCU.

Key Features:

• Communication with other Total Access Systems
• Hot-swappable
• Operates in Host or Client mode for RS-485 chaining applications
• RS-232 via console DB-25 (backplane) and/ or DB-9 (front panel)
• Craft serial interface ports (front panel and rear chassis)
• Ethernet interface for SNMP (V1/V2), Telnet and TL1 over TCP/IP
• Terminal server port
• Provides the SNMP (V1/V2) and TL1 interface for the system
• Supports TL1 and menu access over TCP/IP, X.25, or asynchronous RS-232
• System Configuration Archive (SCA)
• Security account management
• Auto Provisioning/Copy Provisioning of access modules
• IP Forwarding and In-band management
• MUX Network Provisioning Storage (MNPS)
• Supports Metallic Test Access (MTA) per GR- 834-CORE
• Accepts external alarm inputs
• Maintains an Alarm History Log and a System Events Log
• Auto upgrade for a manual or automatic upgrade of PCU or access module firmware
• Concurrent Auto Upgrade for Multi-shelf HDX Systems
• Supports Accessory Option Slot Module menu access (e.g., Total Access 3050 shelf)
• Security Account Expiration and Password Aging
• RADIUS server support
• Secure FTP (encrypted SSHv2 transport), FTP, TFTP, and File Transfer Over TL1 (FTOT) support
