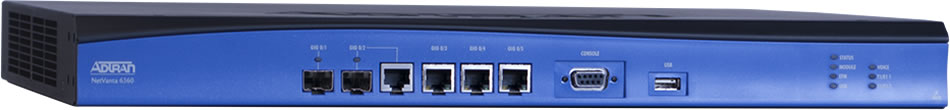

NetVanta 6360 - 24 FXS IP Gateway - 47006366F1

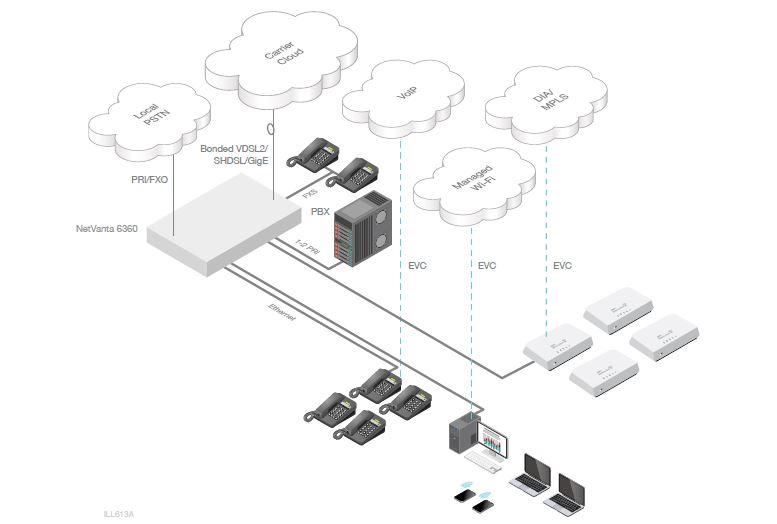

The NetVanta 6360 is a Carrier Ethernet Customer Edge IP Business Gateway that collapses the functionality of a converged business-class voice gateway, an access router for data services and a Metro Ethernet Forum (MEF)-compliant Carrier Ethernet services gateway into a single, optimized platform for the streamlined business services delivery. Eliminating the need for multiple, single-purpose devices that independently support each of these services enables service providers to expand service offerings while gaining significant operational efficiency and a more competitive service portfolio.

Modular Hardware

The NetVanta 6360 is a modular platform for global deployments with WAN interface options for quad bonded VDSL2 as well as a quad and octal SHDSL(EoCu). There are five Gigabit interfaces available — all with Carrier Ethernet functionality — one SFP, one combo (Copper or SFP), and three copper.

Key Features:

• Universal edge device supporting modular Layer 2/3 Carrier Ethernet services
• All Ethernet interfaces include carrier Ethernet functionality
• Multiple WAN interface options:
• Quad bonded VDSL2
• Quad and octal SHDSL (EoCu)
• Copper and fiber Gigabit Ethernet
• Hardware-based SLA monitoring with automated data exporting
• MEF 9/14 certified supporting standard Ethernet OAM
• Layer 2 OAM (Y.1731 CFM, Y.1731 PM) and Layer 3 OAM (TWAMP) support
• Full-featured IP router for data support and Internet access
• Auto-failover and recovery for improved service robustness
• Plug-and-play auto line detection for easy installation
• RapidRoute technology for increased performance
• Stateful inspection firewall for network security
• Quality of Service (QoS) for delay-sensitive traffic like VoIP
• Supports 802.1q Virtual LAN (VLAN) trunking
• Utilize recognizable Command Line Interface (CLI)
• Network Address Translation (NAT) for IP address concealment
• Supports terminal and facility MAC-swap loopback to validate service turn up and trouble-shooting
• Voice Quality Monitoring (VQM) ensuring VoIP call quality
• Enterprise Session Border Control (eSBC) to normalize, secure and troubleshoot SIP to SIP communications
• Flexibility to meet all levels of VoIP migration

Solutions:
