Total Access 5006 Chassis - 1187003E1




The Total Access 5006 is built on and around the principals of Ethernet being the most efficient and cost-effective means of transporting data through a system and into the core of a telecommunication network. Ethernet not only supports HSI, IPTV, VoIP, and Enhanced Broadband, but it also provides a solid medium to transport and interwork legacy services. With the Total Access 5006's intelligent design, it is a platform the service provider can count on for current and future networks.. The following lists a few of the key services and applications provided by the Total Access 5000:  FTTP GPON, Broadband Digital Loop Carrier, ADSL2+ Combo, VDSL2+ Combo, Voice over IP (VoIP), GR303, TR08 (Mode 1 and Mode 2)
High-Density DSLAM, ADSL2+, VDSL2, Legacy Service Migration, ATM Aggregation and Interworking, PPP/MLPPP, Frame Relay, Carrier Ethernet, EoCu, EoTDM, and EoFiber.

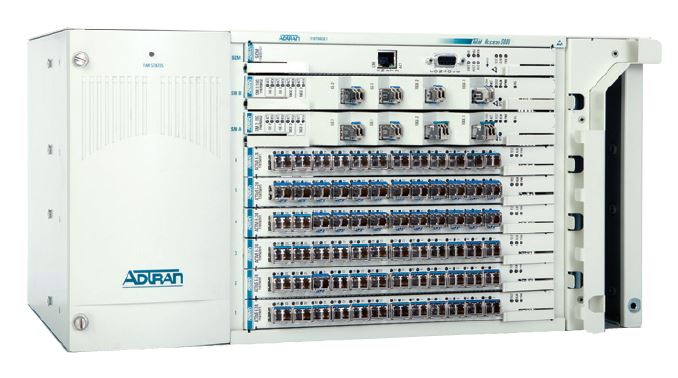

     Total Access 5006 Chassis - 1187003E1



Carrier-class, multi-service access, and aggregation platform

The ADTRAN® Total Access® 5006 is a carrier-class multi-service access and aggregation platform that bridges the gap between the existing and the next-generation networks. With a pure Ethernet core, the Total Access 5006 supports both legacy and emerging service interfaces over copper and fiber, easily scaling to support even the most bandwidth-intensive applications. The Total Access 5006 provides a clear migration path for traditional services, like voice, through its flexible network uplink options, including support for both TDM and VoIP switches. In addition to supporting both legacy and next-generation access interfaces, the Ethernet core of the Total Access 5000 provides a scalable and cost-optimized aggregation point in the network, with interfaces ranging from DS1 to 10 and 20 Gigabit Ethernet. Environmentally hardened, the Total Access 5006 is designed with the service provider in mind and is equally capable of deployment in central office, remote terminal or remote node locations. Instead of a traditional fixed backplane architecture, the Total Access 5006 provides a truly scalable architecture that is designed to migrate with the network, providing flexible copper and fiber termination options based on network applications. With the simple change of a “personality module,” equipment obsolescence can be avoided and network Multiservice Access and Aggregation Total Access 5006 investments protected with a platform that is also physically capable of scaling to meet the network evolution, not only today but also tomorrow.





Key Features:



  • Two Switch Module slots labeled SM A and SM B
  • System Controller Module slot labeled 12/SCM
  • 6 module slots
  • Interchangeability of personality modules
  • Removable Fan Module
  • Reusable Fan Filter
  • Redundant power
  • Data rates up to 10 Gigabits per slot
  • Connectorization: BNC, 90° Champ (50 and 64-pin), wire-wrap, RJ-45, and Infiniband





Solutions:

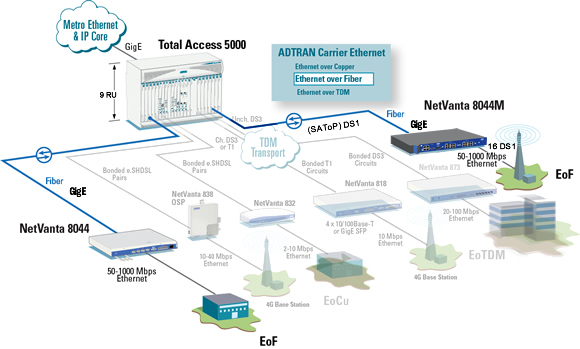

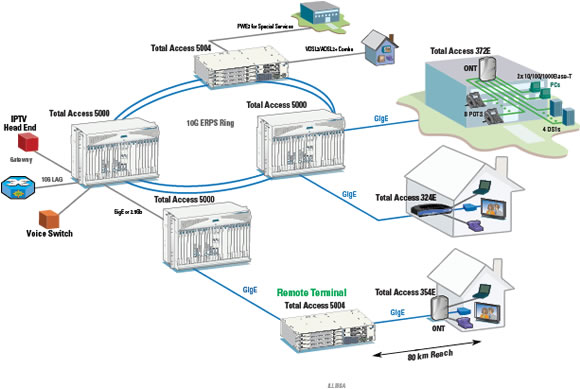

Total Access 5006 Chassis - 1187003E1 - Application





Total Access 5006 Chassis - 1187003E1 - Application





Total Access 5006 Chassis - 1187003E1 - Application





Total Access 5006 Chassis - 1187003E1 - Application





Total Access 5006 Chassis - 1187003E1 - Application







Total Access 5006 Chassis - 1187003E1 - Application
