Total Access 5006 19-Inch Chassis, 2nd Generation - 1187003F2

The ADTRAN® Total Access® 5006 is a carrier-class Multi-Service Access Node (MSAN) that bridges the gap between the existing and the next-generation networks. With a pure Ethernet core, the Total Access 5006 supports both legacy and emerging service interfaces over copper and fiber, easily scaling to support even the most bandwidth-intensive applications. The Total Access 5006 provides a clear migration path for traditional services, like voice, through its flexible network uplink options, including support for both TDM and VoIP switches. In addition to supporting both legacy and next-generation access interfaces, the Ethernet core of the Total Access 5006 provides a scalable and cost-optimized aggregation point in the network, with interfaces ranging from DS1 to 10 and 40 Gigabit Ethernet. Environmentally hardened, the Total Access 5006 is designed with the service provider in mind and is equally capable of deployment in central office, remote terminal or remote node locations. Instead of a traditional fixed backplane architecture, the Total Access 5006 provides a truly scalable architecture that is designed to migrate with the network, providing flexible copper and fiber termination options based on network applications. With the simple change of a “personality module,” equipment obsolescence can be avoided and network investments protected with a platform that is also physically capable of scaling to meet the network evolution, not only today but also tomorrow.

Carrier-class, multi-service access, and aggregation platform

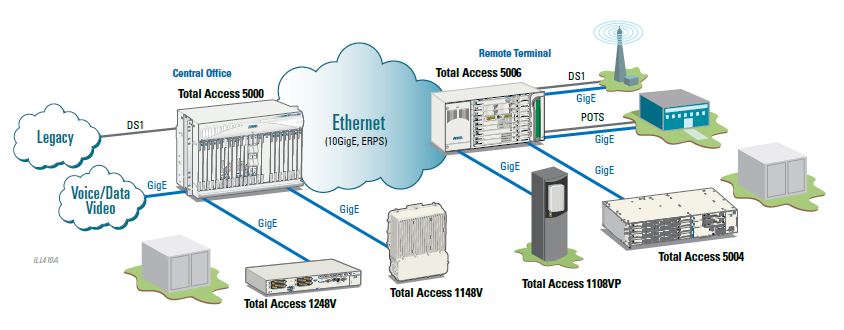

The Total Access 5006 supports a variety of access and line modules with supported applications including Broadband Digital Loop Carrier, Fiber-to-the-Home (FTTH), Fiber-to-the-Node (FFTN), Carrier Ethernet, Ethernet Aggregation, legacy business, and residential aggregation, as well as next-generation Optical Network Edge (ONE™) aggregation and transport. Integrated Ethernet transport options deliver flexible copper or fiber-based solution. The Total Access 5006 supports a wide variety of management options. Transaction Language 1 (TL1) is used to communicate alarms with Telcordia’s NMA Operations Support System (OSS). An Ethernet 10Base-T, 10/100Base-T, or standard RS-232 DB-9 connector is used for Telnet access and connection to SNMP networks. Additionally, the Total Access 5006 is supported by ADTRAN Advanced Operational Environment (AOE), providing a user-friendly Graphical User Interface (GUI). The Total Access 5006 is designed for deployment in 19- or 23-inch relay racks and has six access module slots. Its small size of the 5RU makes it an ideal platform to address congested RTs in cabinet retrofit applications.

Key Features:

• Two Switch Module slots labeled SM A and SM B
• System Controller Module slot labeled SCM
• 6 module slots
• Interchangeability of input/output modules
• Removable Fan Module
• Replaceable Fan Filter
• Redundant power

Solutions:
