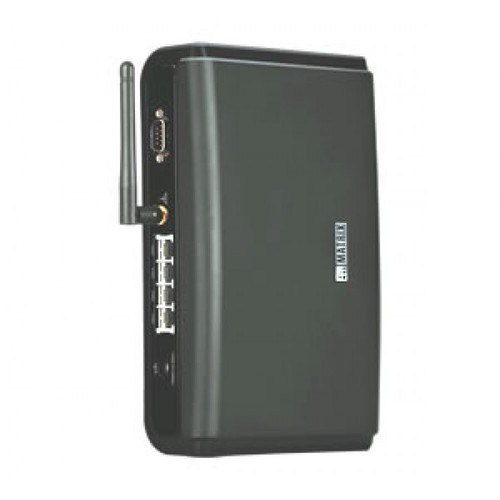

Matrix GFX44 - Multi-Port GSM/3G-FXS GATEWAY
GSM/3G has emerged as a superior alternative to the fixed-line networks and offers wider coverage and cost benefits. Today's businesses expect specific benefits from GSM/3G networks without sacrificing existing POTS connectivity. Matrix GFX44 is a family of Integrated 4 Port GSM Gateways and 8 Port GSM Gateways, interfacing the GSM/3G networks with the wired POTS networks. The GFX44 is a Gateway offering interfaces for multiple GSM/3G and FXS ports. It can be used with any existing PBX without changing its existing telephony infrastructure or in a standalone mode too. The Matrix GFX44 works as an adjunct and supports flexible routing options, providing significant cost saving and round-the-clock connectivity.
The GFX44 is a fixed configuration GSM/3G-FXS voice Gateway. It connects with the existing telephony devices via the FXS interface. Up to four SIM cards can be placed inside the GFX44 Gateway, allowing a user to make up to four concurrent calls. The calls to mobile numbers are placed via the GSM/3G SIM cards, reducing higher fixed-to-mobile interconnection charges. The Gateway serves as an ideal solution for business organizations, remote project sites with limited fixed-line connectivity and temporary office set-ups.
Key Features
- Up to Four GSM/3G SIM support
- Single Antenna for Four GSM SIMs
- Quad-band GSM Network Operation
- Tri-band 3G Network Operation
- Time/Number based Call Routing
- Direct Number Dialling on the Cellular Networks with Automatic Number Translation
- Restrict Unwanted Calls with a List of Denied Numbers
- CPC Signalling to Prevent Port Blockages and Accurate Billing
- Caller ID Presentation on Analog Phones
- Hotline Extension Setting
- Emergency Number Dialling on GSM/3G Networks, Dial Emergency Numbers even in the Absence of SIM
- Easy Programming Interface
Applications

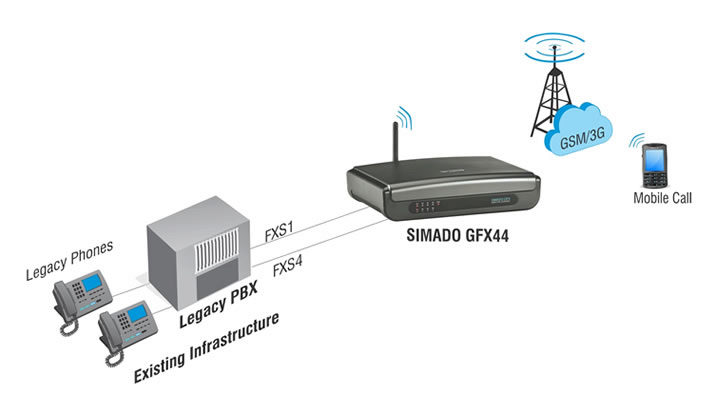

GSM/3G Trunking for Legacy Phone System
- Make Mobile Calls from Existing Telephone Instruments
- Easy Integration with Existing Telephony Interfaces and Devices
- Automated Call Route Selection based on Least Cost Algorithms
- Fixed-line Alternate/Backup for Remote Office Sites and Call Shops
Specifications
| Models: | |
| GFX44 | GSM to Analog Voice Gateway with Four GSM SIM and Four FXS Ports |
| GFX44 3G | 3G to Analog Voice Gateway with Four 3G SIM and Four FXS Ports |
| Mobile Port: | |
| Frequency Bands | Quad-band GSM850, EGSM900, DCS1800, PCS1900 Tri-band WCDMA 850/1900/2100 MHz or Tri-band WCDMA 900/1900/2100 MHz |
| Compliance | ETSI GSM Phase2/2+ |
| SIM Interface | 1.8, 3V SIM Interface |
| Antenna | 1.8/2.5 *dBi, 50, SMA (Male) Connector, Fixed Omni Directional Swivel Antenna1.8/3.0 *dBi, 50, SMA (Male) Connector, Omni Directional with a Cable Three Meters Long |
| FXS Port: | |
| Physical Connector | RJ11 |
| Dialling | DTMF and Pulse (10/20PPS) |
| CLI Presentation | DTMF, FSK ITU-T V.23 and FSK Bellcore 202A CLI |
| Call Maturity | Polarity Reversal |
| Power Supply: | |
| Input | External Power Adaptor Input: 90-265VAC, 47-63Hz Output: 12VDC@2A> |
| Power Consumption | 8W (Typical) |
| Mechanical: | |
| Dimensions (WxHxD) | 23.1 X 5.5 X 16.2 cm (9.09”x2.16”x6.37”) |
| Unit Weight | 1.00 kg (2.21 lbs) Approx. |
| Shipping Weight | 1.83 kg (4.03 lbs) Approx. |
| Mounting Options | Wall Mount and Table Top |
| Environmental: | |
| Operating Temperature | 0° C to +45° C (32° F to +113° F) |
| Storage Temperature | -20° C to +70° C (-4° F to +158° F) |
| Operating Humidity | 5-95% RH (Non-condensing) |
| Storage Humidity | 0-95% RH (Non-condensing) at 40° C |
| Regulatory Compliances: | |
| IEC 60950-1, RoHS, FCC Part15, CE | |
