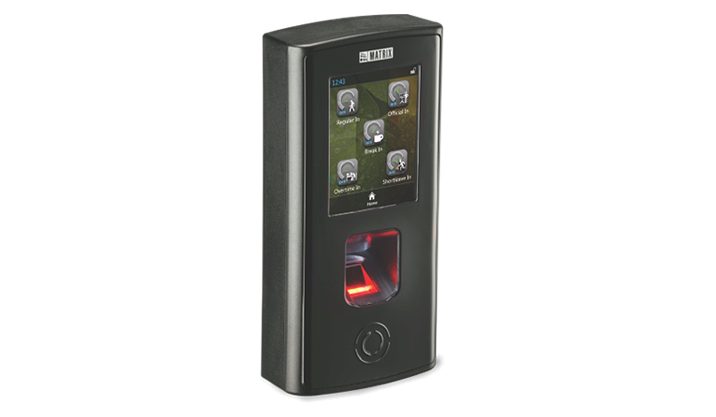

Cosec VEGA FAX - Biometric Door Controller
The COSEC VEGA FAX, a part of the VEGA series, is specifically built for demanding enterprise to meet the functional needs of an organization’s employee time tracking system along with access control applications. The device offers unique advantages in terms of connectivity, technology, usage environment and ease of use. IP65, PoE, touchscreen and wireless connectivity offer foolproof Access Control and Time-Attendance solutions for Corporate Firms, Manufacturing Units, Government organizations and more. It has various interfaces like exit reader, exit switch, auxiliary input/output port, Ethernet and Wi-Fi.
Designed for long term uninterrupted performance with a prudent blend of aesthetics, size, connectivity, and reliability, the device is a perfect fit for a biometric time clocking system. It’s built-in exit reader port to connect either fingerprint or card reader using RS-232 or Wiegand interface. COSEC VEGA FAX, an advanced door controller, has a 3.5’’ TFT display with a capacitive touchscreen interface to put events, news/message, and other information. It is capable of storing up to 9,600 fingerprint templates and 5,00,000 events. Its compact design with IP65 ratings is convenient for the demanding work environment of organizations.
Moreover, the COSEC VEGA FAX is an open system allowing integration with third-party hardware. Using auxiliary input and output ports, the Fire Alarm system and Video Surveillance system can be connected without any need for external hardware modules. Motion sensors and relay devices can also be connected through these ports. With wireless connectivity options for employee time tracking software application and access control terminals, the solution delivers a high level of flexibility to satisfy the most demanding enterprise needs of today.
Key Features
- Excellent Design that Matches your Aesthetics
-3.5” TFT Touchscreen Display
-Compact Design
-Pluggable Card Reader Module
-IP65 Rating - Choose Credentials as per Requirement
-Fingerprint, RF Card and PIN
-Proximity and Smart Card
-EM Prox, HID Prox, Mifare, and HID iCLASS - Multiple Connectivity Options for Communicating with the Server
-Ethernet
-Power over Ethernet (PoE)
-Built-in Wi-Fi
-Mobile Broadband 3G/4G (through USB Dongle) - Higher Capacity for Managing Multiple Users and Events
-Up to 50,000 Users
-Event Storage up to 5,00,000 - Multiple Interfaces for Different Applications
-Door Relay and Door Sense
-Auxiliary Input and Output Port
-Exit Reader and Exit Switch - Perform Applications using Device APIs
-Communication with Third-Party Software
-Integration using Device API - Easy Operation and Installation
-User-Friendly GUI
-Standalone and Network Operation
-Easy Mounting on Back Plate
-Leverage Existing Network Infrastructure
-Minimum Wiring
Applications
- Time-Attendance
- Access Control
- Visitor Management
- Cafeteria Management
- Contract Workers Management
- Job Processing and Costing

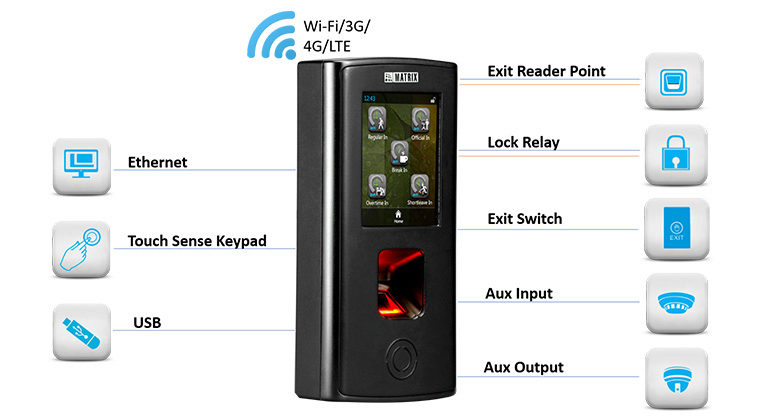

Interface Diagram
Technical Specifications
| Variants | COSEC VEGA FAX | COSEC VEGA FAXQ |
|---|---|---|
| Credential Support | Fingerprint, RFID Card and PIN | Fingerprint, RFID Card and PIN |
| Fingerprint Sensor | Optical | Optical |
| Templates Capacity | 9600 (1: N mode), and 1,00,000 (1:1 mode) | 9600 (1: N mode), and 1,00,000 (1:1 mode) |
| Templates Per User | Up to Ten | Up to Ten |
| Cards Per User | Up to Two | Up to Two |
| Type of Card | EM Prox, Mifare, and HID iCLASS (Card Module is required) | EM Prox, Mifare, and HID iCLASS (Card Module is required) |
| User Capacity | 50,000 | 50,000 |
| Display | 3.5" TFT Display with Capacitive Touch Panel | 3.5" TFT Display with Capacitive Touch Panel |
| Communication Port | Ethernet, Wi-Fi, Mobile Broadband (3G/4G Using USB Dongle) | Ethernet, Wi-Fi, Mobile Broadband (3G/4G Using USB Dongle) |
| Built-in PoE | Yes | Yes |
| Built-in Wi-Fi | Yes | Yes |
| USB | One USB Port (for Data Transfer and Mobile Broadband) | One USB Port (for Data Transfer and Mobile Broadband) |
| Event Buffer | 5,00,000 | 5,00,000 |
| Exit Switch Port | Yes | Yes |
| Exit Reader | Yes | Yes |
| Reader Interface Types | RS-232 and Wiegand | RS-232 and Wiegand |
| Reader Power Output | Internal 12VDC @ 0.5A or External | Internal 12VDC @ 0.5A or External |
| Door Status Sense | Programmable NO, NC, Supervised | Programmable NO, NC, Supervised |
| Door Lock Relay | Relay SPDT, Form C, 1A @ 30VDC | Relay SPDT, Form C, 1A @ 30VDC |
| Door Lock Power | Internal 12VDC @ 0.5A or External | Internal 12VDC @ 0.5A or External |
| Aux-In | Programmable NO, NC, Supervised | Programmable NO, NC, Supervised |
| Aux-Out | Relay SPDT, Form C, 1A @ 30VDC | Relay SPDT, Form C, 1A @ 30VDC |
| Tamper Detection | Yes | Yes |
| Input Power | 12VDC @ 2A | 12VDC @ 2A |
| Operating Temperature | 0° C to +50°C (32°F to 122°F), | 0° C to +50°C (32°F to 122°F), |
| Humidity | 5% to 95% RH Non-condensing | 5% to 95% RH Non-condensing |
| IP65 | Verified | Verified |
| STQC Certified | No | Verified |
| Certification | CE,FCC PART15B(VOC),BIS,ROHS | CE,FCC PART15B(VOC),BIS,ROHS |
| Dimensions (mm) | 91X186X38 | 91X186X38 |
| Weight (kgs) | 0.54 | 0.54 |
