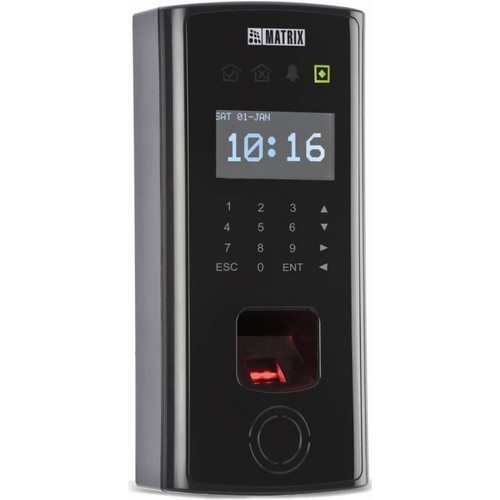

Cosec DOOR FOP - Fingerprint Door Controller




The COSEC DOOR FOP, one of the variants of Door Access Control systems, is designed to give organizations top of the line security for their infrastructure and employees. With its advanced features, along with with biometric credentials (fingerprints/palm veins), PIN and RFID card based access, the device offers foolproof security solutions for organizations in all industries. Its award-winning design, multiple credentials, and connectivity options fulfill the requirements of all types of businesses. Therefore, this solution is ideal for various sectors that include Hospitals, Schools, Banks, Government Institutes, Hotels, Remote Sites and Large/Small Enterprises.

COSEC DOOR FOP, a conventional Door Controller, can be used for various applications like Access Control, Time-Attendance, Visitor Management, Cafeteria Management, Vehicle Access Management, and Contract Workers Management. COSEC DOOR FOP is a door controller, which has 128*64 Dot Matrix Display with touch sense keypad. It is capable of storing up to 9,600 fingerprint templates and 5,00,000 events. Moreover, with Ethernet, Wi-Fi and 3G/4G connectivity, this device offers extra flexibility in designing a security solution while reducing installation and maintenance costs. This RFID card based or fingerprint door entry system can work in a network or a standalone mode. It offers various interfaces like exit reader, exit switch, auxiliary input/output port, and USB port. Hence, high-quality biometric fingerprint door access systems such as this, with built-in controllers are versatile devices designed for reliability, modularity, and performance.



     Cosec DOOR FOP - Fingerprint Door Controller





Key Features



  • Superior Design
    -iF Design, Good Design, and Design Mark Awards
    -128x64 LCD Display
    -Touch Sense Keypad
    -Audio Visual Indications
  • Saves Time by Quick Fingerprint Identification
    -Identification in Less than One Second
    -1:1 and 1:N Verification
  • Manage many Users from a Device
    -5,00,000 Events Storage
    -9,600 Fingerprint Templates
  • Select Credential as per Requirement
    -Fingerprint, RFID Card and PIN
    -Proximity and Smart Cards
    -EM Prox, HID Prox, Mifare, and HID iCLASS
  • Connect Device with Server using available Option
    -Wired and Wireless Connectivity
    -Ethernet and RS-485
    -Mobile Broadband (3G/4G) via USB
  • Perform Functions Faster from the Device itself
    -User Enrolment from Device
    -Perform Attendance Functions
    -Take Out the Event Data via USB
  • Various Interfaces to Control Various Applications
    -Door Relay and Door Sense
    -Auxiliary Input and Output Ports
    -Exit Reader and Exit Switch
    -Various Interfaces to Control Various Applications
  • Multi-door Access Control Software
    -Compatible and Centralized Solution for Multiple locations Enterprises
    -Minimal Wiring
    -Standalone and Network-based Access Control







Applications



  • Time-Attendance
  • Access Control
  • Visitor Management
  • Cafeteria Management
  • Contract Workers Management

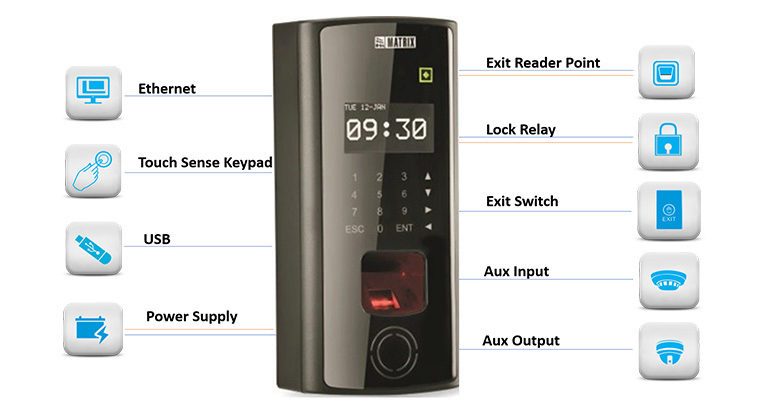

Interface Diagram



Cosec DOOR FOP - Fingerprint Door Controller





Variants

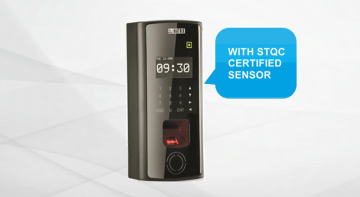

Cosec DOOR FOPQ - Fingerprint Door Controller







Technical Specifications



VariantsCOSEC DOOR FOPCOSEC DOOR FOPQ
Credential Support Finger, Card, and PIN Finger, Card, and PIN
Display 128 x 64 Dot Matrix Display 128 x 64 Dot Matrix Display
Keypad 16 Touch Sense Keys 16 Touch Sense Keys
User Capacity 50,000 (Max. 9600 in 1:N Mode) 50,000 (Max. 9600 in 1:N Mode)
Template Per User Up to Ten (Single Template per Finger Mode) or Up to Five (Dual Template per Finger Mode) Up to Ten (Single Template per Finger Mode) or Up to Five (Dual Template per Finger Mode)
Template Storage Capacity 9600 in 1:N Mode and 1 lac in 1:1 Mode 9600 in 1:N Mode and 1 lac in 1:1 Mode
Cards Per User Up to Two Up to Two
Event Buffer 5,00,000 5,00,000
Types of Cards Support Proximity Card (EM Prox and HID Prox) and Smart Card (Mifare and HID iCLASS) (Card Module Required)     Proximity Card (EM Prox and HID Prox) and Smart Card (Mifare and HID iCLASS) (Card Module Required)
Mobile Broadband Yes (2G/3G Support) Yes (2G/3G Support)
RS-485 Yes (115.2 Kbps) Yes (115.2 Kbps)
Ethernet Yes (10/100 Mbps on Ethernet) Yes (10/100 Mbps on Ethernet)
Exit Switch Yes Yes
Door Status Sense Programmable NO, NC and Supervised Programmable NO, NC and Supervised
Door Lock Relay Form C, SPDT Relay (Max 2A@30 VDC) Form C, SPDT Relay (Max 2A@30 VDC)
Door Lock Power Internal 12VDC @ 0.5A or External Internal 12VDC @ 0.5A or External
Aux-IN Programmable NO, NC and Supervised Programmable NO, NC and Supervised
Aux-OUT Form C, SPDT Relay (Max 2A @ 30VDC) Form C, SPDT Relay (Max 2A @ 30VDC)
Reader Interface types RS-232, and Wiegand IN only RS-232, and Wiegand IN only
Reader Types 1 Port for Card Reader/Finger Reader/Card Finger Combo Reader/Third Party Wiegand reader 1 Port for Card Reader/Finger Reader/Card Finger Combo Reader/Third Party Wiegand reader
USB 2 USB Ports (1 for Data Transfer and 1 for 2G-3G Dongle) 2 USB Ports (1 for Data Transfer and 1 for 2G-3G Dongle)
Buzzer Yes Yes
LED 4 LEDs (Status, Alarm, Allowed, Denied) 4 LEDs (Status, Alarm, Allowed, Denied)
CPU 400 MHz ARM 9 based Processor 400 MHz ARM 9 based Processor
Flash Memory 256MB Flash 256MB Flash
RAM Memory 128MB DDR2 128MB DDR2
Input Power 12VDC @ 2A 12VDC @ 2A
Reader Power Output Internal 12 VDC @ 0.5 A or External External Internal 12 VDC @ 0.5 A or External
Battery Backup No No
Humidity 5% to 85% RH Non-condensing 5% to 85% RH Noncondensing
Operating Temperature 0°C to + 50°C (32°F to 122°F) 0°C to + 50°C (32°F to 122°F)
Tamper Detection Yes Yes
Certification CE and RoHS CE and RoHS
STQC No Verified
Dimension (mm) 100X220X56 100X220X56
Weight (kgs) 0.65 0.65
