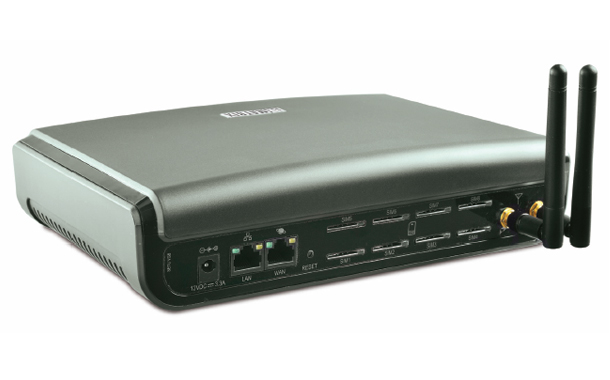

Matrix VG - Multi-SIM VoIP-GSM/3G Gateway
The ever increasing mobile call traffic and expanding field forces have led organizations to realize the need for cellular GSM trunking to cut down mobile call costs. GSM voice extends business to reach where fixed lines cannot and saves telephony costs by converting fixed-to-mobile calls into mobile-to-mobile calls. The VG is a compact VOIP-GSM Voice Gateway with up to Four/Eight GSM and 3G SIM support. Integrated GSM/3G connectivity and open standard SIP support enable the VG to easily connect with leading IP phone systems, software-based IP-PBXs and hosted and SIP trunking services. The Matrix VG is a suitable GSM trunking solution for enterprises, call terminators and areas with limited landline and internet connectivity such as remote project offices and rural and educational institutions.
Key Features
- Up to Eight GSM/3G SIM Ports: Save Recurring Fixed-to-Mobile Costs and Maintain Business Continuity during PSTN and IP Network Outage
- Hot-Swappable SIM Cards: Leverage Time and Region Specific Calling Plans and Zero Down Time
- 3G Internet Access: High-speed Internet for Areas with Limited Fixed Line Connectivity (Speed up to 14.4 Mbps DL /5.76 Mbps UL)
- Peer-to-Peer Calls: Place Calls between Multiple Locations over IP Networks
- Penta band 3G/UMTS: Get Easily Connected with 3G Voice and Internet Service Providers across the Globe
- Call Details Record: Record Call Details of up to 2,000 Calls
- TR-069 Auto-configuration: Automate Remote Management for Mass Deployments
- SNMP Monitoring: Monitor Usage and Health of Network Entities
- SMS Notification: Send SMS Notifications for Critical Events such as WAN Link Down, Change of IP Address, Calling Minutes, Data Usage and SIM Balance
- TLS/SRTP Security: Ensure VOIP Call Security over IP Network
FEATURES LIST
- 3G Internet over First SIM (DL/UL - 14.4/5.76 Mbps)
- Access Codes - Making a New Call and Disconnect Call
- Allowed and Denied List
- Automatic Number Translation
- Backup Configuration
- Blacklist Callers
- Block ICMP on WAN
- Block PING on WAN
- Call Detail Record (CDR) – 2,000 Numbers
- Call Minutes - Configurable Up to 9,999 Minutes
- Call Minutes – Balance Alarm, Scheduled Date
- Call Progress Tones
- Call Waiting
- Caller ID Presentation
- CDR Filters - SIP Trunks, GSM Ports, Time, Date and PIN
- Certificate Manager
- Clone MAC Address
- Daylight Saving Time
- Dial Plan
- Digest Authentication
- Dynamic DNS
- Emergency Numbers
- Fax over IP (FoIP)
- Firmware upgrade by HTTP/TFTP
- G.168 Line Echo Cancellation
- Gain/Volume Adjustment - Microphone/Speaker
- Quad-band GSM and Penta-band 3G/UMTS Support
- Hotline
- Hot Swapping for SIM Cards
- IMEI Number
- Message Wait Indication
- Mobile Network/Band Selection - Auto/Manual
- Multiple Language Support - English, Italian, Spanish, French, German and Portuguese
- Multi-stage Dialing
- NAT/STUN Support
- Password Protection
- PCAP Trace
- Peer-to-peer Calling
- PIN Authentication
- QoS (Layer 3 DiffServ and TOS)
- Selective IP Address for Web Server Access
- Selective WAN Access - Web Server, FTP, Telnet
- Signal Strength Indication
- SIM Balance and Recharge
- SIM PIN
- Single Antenna per Four GSM/3G Ports
- SMS Notification - WAN Link Down, Change of IP Address, Calling Minutes, Data Usage and
- SIM Balance
- SNMP Monitoring
- Soft Restart
- Static Routing
- System Debug
- TLS/SRTP Security
- TR-069 Auto Configuration
- USSD
- Web-based Management
- White List IP Address
Applications

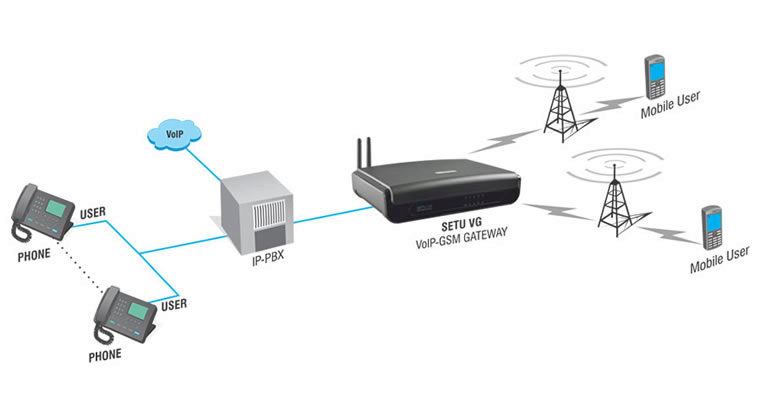

GSM Trunking for IP Phone Systems
The matrix VG Media Gateway helps organizations make huge number of calls over mobile networks to drastically cut down recurring telephony bills. When connected with existing hardware or software-based IP phone system, VG allows extension users to place outbound calls using integrated mobile SIMs similar to landline trunks. This, in turn, eliminates PSTN inter-connection charges of fixed-to-mobile calls by converting them into mobile-to-mobile calls. The VG also delivers value-added features such as Host Swapping of SIM Cards, SIM Balance Recharge from GUI and High-Speed Internet Access over 3G. This makes it an ideal solution for small and medium enterprises, remote offices and project sites and rural and educational institutions.

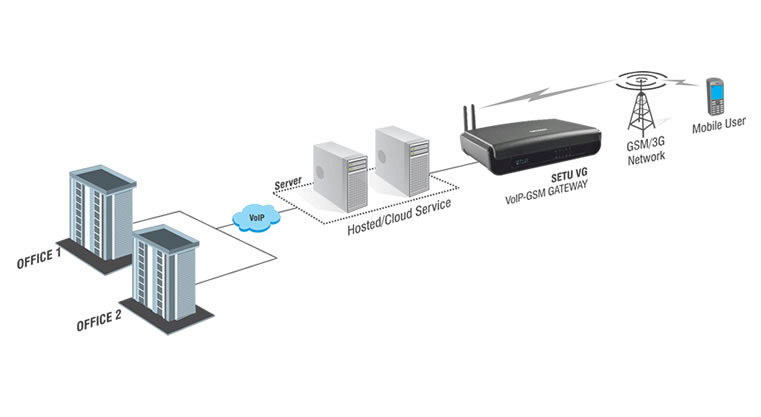

GSM Call Termination for Service Providers
GSM call termination helps service providers benefit from reduced mobile call charges and maximize cost savings with multiple SIM support. Intelligent call routing and comprehensive Gateway feature of the VG ensure quick ROI, superior voice and quality of service for call terminators and ITSPs. Service providers can benefit from advanced features such as Hot Swapping of SIM cards, Remote SIM Balance Inquiry and Recharge, Global GSM/3G support, Automatic Number Translation, Configurable Call Minutes, SMS Notifications, Monitoring and Auto Provisioning for mass deployments.

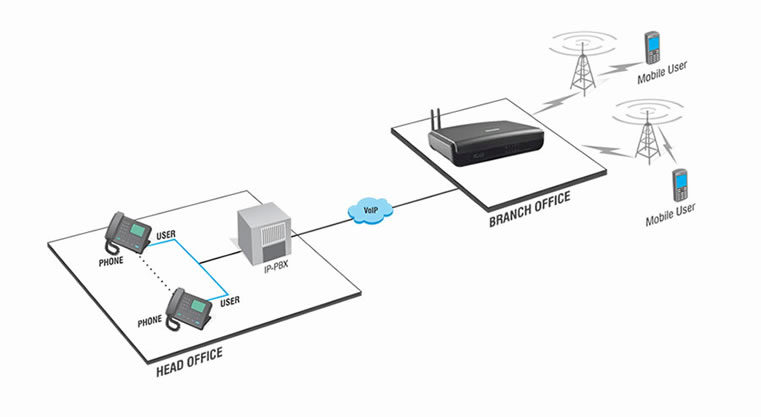

Hop-Off GSM Trunking for Multi-site Organizations
Multi-location organizations, while communicating with dispersed field forces, incur huge telephony bills using PSTN services. Instead, routing long-distance calls across IP and dropping them off to the GSM network at remote GSM Gateway saves significant VOIP-PSTN interconnection costs. Users at the main office can access the GSM trunk of the VG Gateway and transparently hop off to the PSTN to reach off-net locations.
Note: This feature should be used in compliance with local telecom regulations.

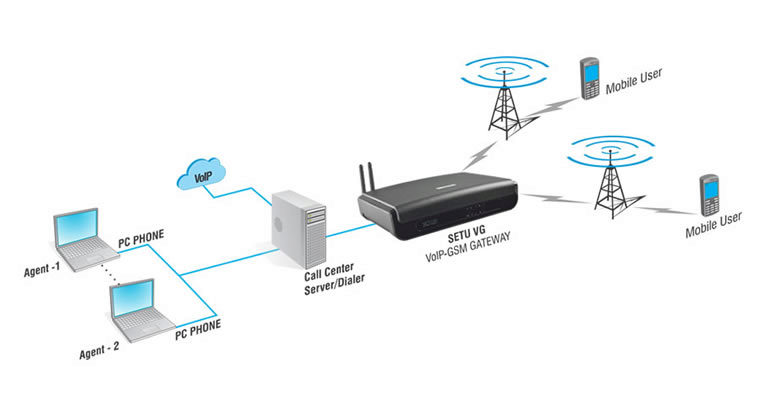

GSM Gateway for Call Center Solutions
Delivering exceptional customer services is a big challenge for the Call Center industry. To find out new ways of reaching customers and lowering down the cost of communications, call centers have realized the need for multi-port GSM Gateway. When integrated with an existing IP phone system, The VG offers benefits of cost-effective GSM calls and last-mile reach. The Matrix VG easily connects with any hardware or software-based IP-PBXs, IVRs and Predictive Dialers using SIP support. All calls made to mobile numbers are placed using the most appropriate SIM card to significantly lower down the call costs. Moreover, the SIM cards of the VG Gateway are Hot-Swappable. Thereby, allowing users to choose from time and region-specific calling plans and uninterrupted services with zero downtime.

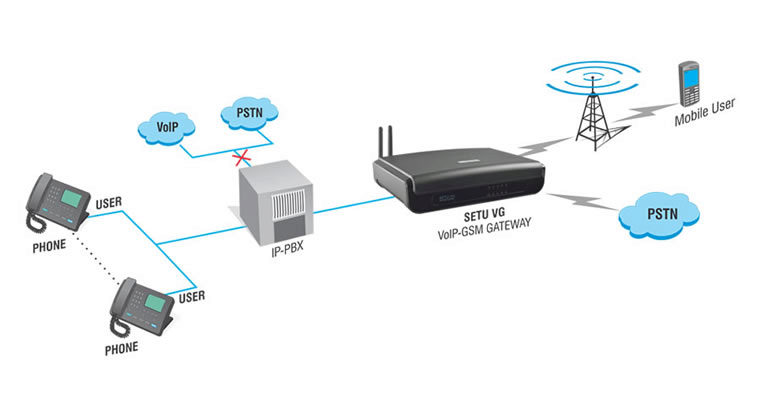

GSM/3G as Voice Backup Trunks
The VG, a SIP Gateway with GSM SIM slots, uses SIP standard to integrate with IP phone systems and offer voice backup solutions over GSM/3G with four or eight-voice channels. For a customer using SIP and PSTN as primary voice trunks, VG allows critical voice communication to reach the desired number for disaster recovery in events such as emergency communication, power outages or broken fixed lines. Ideal for business verticals such as Transportation, Healthcare, Hospitality, Education, Manufacturing, Government and Retail, VG provides low cost and easy to deploy voice backup solution over omnipresent GSM/3G networks.
Specifications
| VoIP Parameters: | |
| VoIP Protocols | SIPv2, SDP, RTP (RFC 2833), SRTP |
| Network Protocols | IPv4, TCP, UDP, DHCP, PPPoE, SNTP, NAT, STUN, HTTP, TLS, DynDNS |
| SIP | 9 SIP Accounts with Out Bound Proxy Support |
| NAT | STUN and NAT Keep-Alive |
| Voice Codecs | G.711 A/µ-Law, G.723, G.729, GSM-FR |
| Line Echo Cancellation | G.168 with 128 ms Tail Length |
| Call Progress Tones | Dial Tone, Ring Back Tone, Busy Tone, and Error Tone |
| Voice | Dynamic Jitter Buffer (Adaptive), Comfort Noise Generation and Voice Activity Detection |
| Fax | T.38 (UDTPL), T.38 (RTP) and Pass-Through |
| Quality of Service | Layer 3 DiffServ and TOS |
| Data Network | Two Ports Auto MDIX 10/100 BaseT (RJ45) |
| Security | Password Protected Administration |
| Physical Connector | RJ45 |
| GSM Parameters: | |
| GSM Frequency Band | GSM: GSM850, EGSM900, DCS1800, PCS 1900 |
| GSM 3G Frequency Band | GSM: 850 / 900 / 1800 / 1900 UMTS: 800 / 850 / 900 / 1900 / 2100 |
| SIM Card | One SIM per GSM Port |
| SIM Interface | 1.8V, 3V |
| Transmission Power | 2G
|
3G
|
|
| Antenna (Panel Mount) | One Antenna per Four GSM Ports, Fixed Omni Directional Swivel Antenna, 1.8dBi/2.0dBi, 50Ω SMA (Male) Connector |
| POWER SUPPLY: | |
| Input | 12VDC, 2A through External Adaptor |
| Power Consumption | 15W (Typical) |
| Connector | DC Power Jack |
| LED Indications |
|
| MECHANICAL: | |
| Dimension (WxHxD) | 23.1 X 5.5 X 162.5 cm |
| Unit Weight | 0.72 Kg (1.58 lbs.) |
| Shipping Weight | 1.39 kg (3.06 lbs.) |
| Installation Mounting | Wall Mount and Table-Top |
| ENVIRONMENTAL: | |
| Operating Temperature | 0˚C to +45˚C (32˚F to +113˚F) |
| Storage Temperature | -20˚C to +70˚C (-4˚F to +158˚F) |
| Operating Humidity | 5-95% RH (Non-Condensing) |
| Storage Humidity | Max. 0-95% RH (Non-Condensing) |
