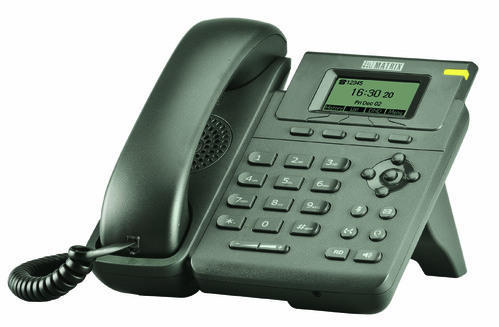

Matrix VP110 - Business IP Phone




The Desk Phone is the backbone of communication for controlling business operations. Today's efficient managers require a desk phone with an elegant design, smart functionality and multi-tasking ability as their command center. Ergonomically designed and feature-packed, the SPARSH VP110 VoIP SIP Phone increases staff productivity and enhances business communication with easy to use, mass deployable, secure communications, clear voice and it's ready for the future. The Matrix VP110 is a new breed of entry-level SIP phone that redefines the desktop telephony experience. It provides features and functions normally available in high-end phones such as a large graphical LCD, 5-line display, context-sensitive keys, full-duplex speakerphone, integrated PoE, auto-provisioning and a broad array of call management features. A perfect fit for everyday users with basic communication needs, the Matrix VP110 is a great SIP phone for call centers, enterprises, small businesses, and branch offices.

     Matrix Sparsh VP110 - Business IP Phone



Key Features



  • Enhanced Desktop Viewing: 132 x 64 Pixel Graphical Display
  • Simple Power Management: Integrated PoE (802.3af)
  • Easy to Use: Context-Sensitive and Fixed Function Keys
  • Suitable for Mass Deployment: Auto Provision and TR069
  • Clear Voice: Full Duplex Speakerphone with AEC, VAD, and CNG
  • Future Ready: IPv6 Ready, PC, and LAN Ports
  • Secure Communications: TLS/SRTP for Voice Security
  • Feature-rich User Experience: Dial Plan, Phonebook and Auto-firmware Upgrade





Specifications



Audio Features Full-duplex Hands-free Speakerphone with AEC Codecs: G.711(A/μ), G.722, G.723, G.729, G.726, iLBC DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO VAD, CNG, AEC, PLC, AJB, AGC
Phone Book
  • Local Phonebook up to 1000 entries Black List
  • XML Remote Phonebook
  • Intelligent Search Method
  • Phonebook Search/Import/Export
  • Call History: Dialled/Received/Missed/Forwarded
Phone Features
  • 1 VoIP Account
  • Call Hold, Mute, and DND
  • One-touch Speed Dial and Hotline
  • Redial, Call Return, and Auto Answer
  • Call Forward, Call Waiting and Call Transfer
  • Local 3-way Conferencing
  • Direct IP Call without SIP Proxy
  • Ringtone Selection/Import/Delete
  • Keypad Lock and Emergency Call
  • Set Date and Time Manually or Automatically
  • Dial Plan, XML Browser and Action URL/URI
  • Instant Messaging (Web UI and Phone)
Call Management
  • Anonymous Call (CLIR)
  • Anonymous Call Rejection
  • Message Waiting Indicator (MWI), Voicemail and Call Pickup
  • Intercom, Paging and Music on Hold
  • Call Completion and Hot-desking
  • Dial-out Number from Web UI
Display
  • 132x64-pixel graphical LCD
  • LED for Incoming/Ongoing Call, MWI, Mute and Hold
  • Intuitive User Interface with Icons and Soft keys
  • Multiple Languages
  • Caller ID with Name and Number
Networking and Security
  • SIP v1 (RFC2543), v2 (RFC3261)
  • IPv6
  • NAT transversel: STUN mode
  • Proxy Mode and Peer-to-Peer SIP Link Mode
  • IP Assignment: Static/DHCP/PPPoE
  • HTTP/HTTPS Web Server
  • Time and Date Synchronization using SNTPUDP/TCP/DNS-SRV (RFC 3263)
  • QoS: 802.1p/Q Tagging (VLAN), Layer 3 ToS, DSCP
  • SRTP for Voice
  • Transport Layer Security (TLS)HTTPS Certificate Manager
  • AES Encryption for Configuration File
  • Digest Authentication using MD5/MD5-sess
  • IEEE802.1
  • XSNMP v1/v2
Management
  • Configuration: Browser/Phone/Auto Provision
  • Auto Provision via FTP/TFTP/HTTP/HTTPS for Mass
  • Deploy
  • Factory Reset
  • Soft Reboot
  • Package Tracing
  • System Log
Physical Features
  • 2 x 10/100 Mbps LAN and PC Ports
  • 29 keys including 4 Soft Keys
  • 1 x RJ9 Handset Port
  • 1 x RJ9 Headset Port
  • Dimension (W x D x H): 185 x 188 x 143 mm
Mechanical:
Packaging 10 Qty/CTN
Net Weight 9.8 kg
Gross Weight 10.8 kg
Gift Box 215 x 200 x 121 mm
Installation Wall Mount, Table-top
Colour Grey
Environmental:
Operating Temperature -10° C to 50°C (14° F to 122° F)
Operating Humidity 10 - 95% (Non-condensing)
Certifications CE, FCC-15 (Class B), RoHS
