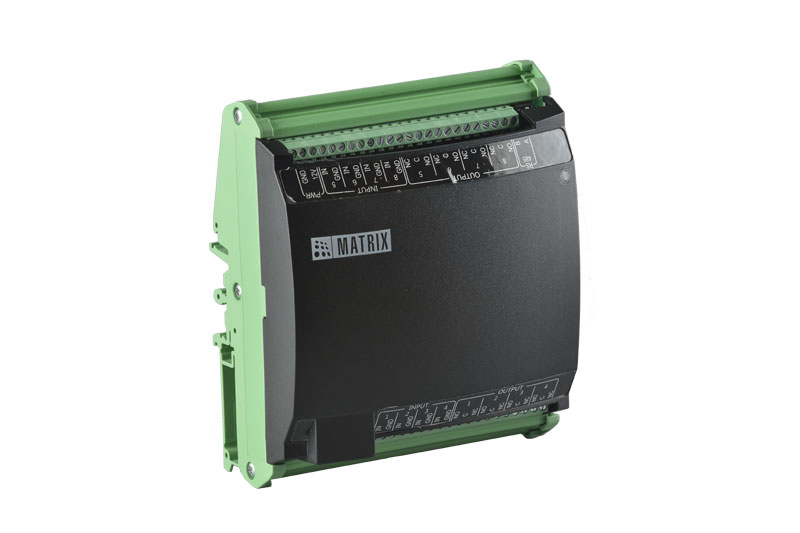

Cosec ARC IO800 CONTROLLER
In an organization, there are multiple devices functioning for various applications that are required to be controlled effectively. Hence an I/O Controller provides the flexibility to control and monitor a range of hardware devices integrated with the controller. To meet such requirements, Matrix offers COSEC ARC IO800, a compact Input-Output Controller that controls multiple third-party devices performing multiple applications. It ensures ease in the configuration of multiple devices.
Key Features
- Compact Design
-Aesthetically Designed
-Eight Input-Output Relay Ports - Communication
-Ethernet/PoE
-RS-485 - Easy Integration
-Seamless Integration with Third-Party Devices
Applications
- Input/Output Linking
The following are few of the auxiliary devices that can be integrated with I/O Controller for multiple applications:
-Fire Alarm Bell
-Gas Detector
-Alarm
-Motion Detector
-Glass Break Sensor
-Seismic Sensor
-Burglar Alarm
-Emergency Switch
-Elevator
-EM Lock - Elevator Control

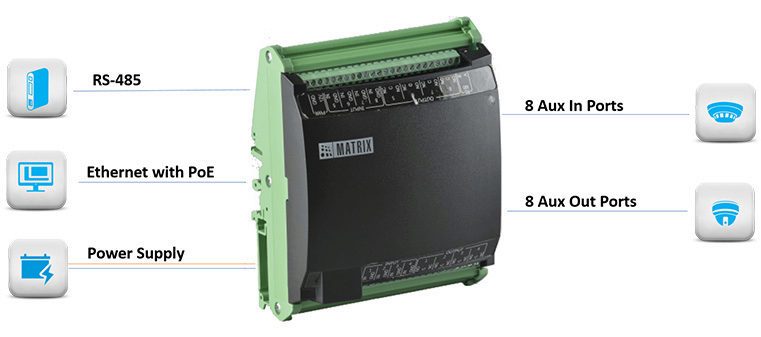

Interface Diagram
Technical Specifications
| General | |
|---|---|
| Input Power | PoE (IEEE 802.3 at Class 0; Max 12 W) External Power Adapter (12DC@2A) |
| Communication mode | Ethernet and/or RS-485 |
| Ethernet speed | 10/100 Mbps |
| LED | 1 |
| IN/OUT | |
| No. Of Inputs | 8 Inputs |
| No. Of Outputs | 8 Outputs |
| Input Type | Four State Supervised |
| Output Type | Relay SPDT, Form C and 5A@244 VDC |
| Physical | |
| Dimensions (WxHxD) | 107mmx125.5mmx55mm |
| Weight | 260 g (approx.) |
| Environmental | |
| Operating Temperature | 0°C to +50°C |
| Humidity Range | 20% to 95% RH Non-condensing |
