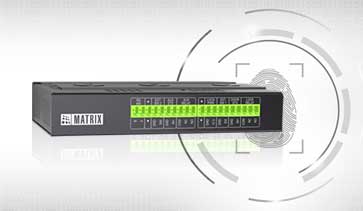

Cosec ARC DC200S - Double Door IP Access Controller




The COSEC ARC DC200S is a double door IP Access Control Panel, based on the “IP to door” concept eliminating need of age-old individual cable laying requirements between access panel to reader or lock for Access Control applications. COSEC ARC works on the forefront PoE+ IT infrastructure with door controller on each door with minimum wiring that improves solution reliability and reduces installation cost drastically. It supports two Matrix RFID or fingerprint readers on RS485 or third-party readers on the Wiegand interface for entry or exit. Moreover, COSEC ARC is SSL enabled access control IP panel which provides secure communication between controller and server makes it ideal panel lite controller for any, critical or simple access control organizational applications. COSEC ARC also supports multi-mount options such as wall-mount and standard din rail mount.



     Cosec ARC DC200S - Double Door IP Access Controller





Key Features



  • Higher Capacity
    -50,000 Users
    -5,00,000 Events Storage
  • IP to Door
    -No need to lay a long cable between the control panel and reader or lock
    -Reduce Cost
  • 2-Door Controller
    -Control Two Doors from One Door Controller
    -Reduce Additional Hardware Device Cost
  • Secured Communication
    -Difficult to breach
    -Security
  • Auto Push Event Data
    -Quick Decision
    -Save Time
  • Easy Integration
    -Seamless Integration with Existing Third Party Wiegand Readers
    -Aux-In and Aux-Out Port to Connect Third-Party Devices
  • Mobile-based Access
    -Open Door Using User’s Mobile
    -Future Proof, Convenience
  • Advanced Connectivity
    -Bluetooth, Wi-Fi, PoE+, Ethernet
    -Use Existing IT Infrastructures
    -Meet Future IT Infrastructure Requirements
  • Compact Design
    -Fits Easily Above the Door on a False Ceiling
    -Fits into an Organisation’s Aesthetics Needs
  • Power to Lock and Readers
    -PoE+ Enables Power to Lock Directly from Device without -Adaptor
    -Reduce Cost







Applications



  • Access Control

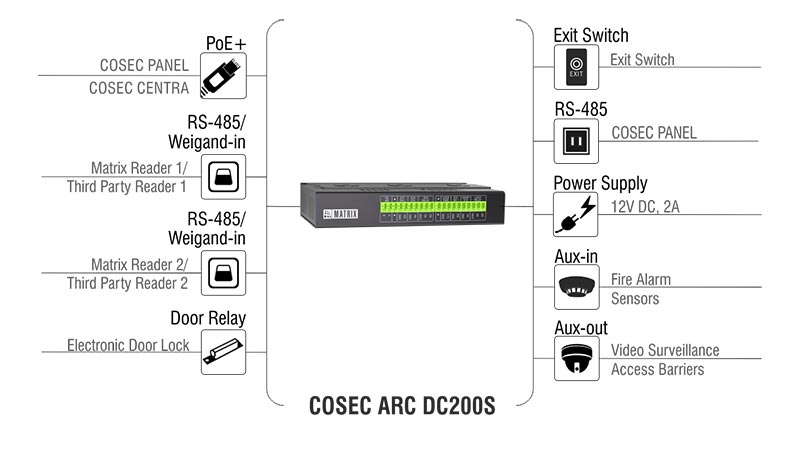

Interface Diagram



Cosec ARC DC200S - Double Door IP Access Controller







Technical Specifications



GENERAL
Maximum Readers 2 Matrix or Third-Party Readers
Maximum Doors 2 Doors/Locks
CAPACITY
Maximum Users 50,000 Users in Server Mode
25,000 Users in Standalone Mode
Event Buffer 5,00,000 Events Storage on FIFO
COMMUNICATION
Ethernet Yes. 10/100 Mbps
PoE+ Yes (IEEE 802.3 af/at) (PoE/PoE+)
RS485 Yes. Connect Matrix Readers
Wiegand Yes. Connect 3rd Party Wiegand Readers
INTERFACE
Exit Switch Port Yes
Door Status Sense Yes (4- state) Programmable NO, NC and Supervised
Door Lock Relay Yes (Max. 30VDC @ 2A)
Aux-In Yes (4-state)
Aux-Out Yes (Max. 30VDC @ 2A)
Reader Distance 400 meters (on RS485)/100 meters (on Wiegand)
HARDWARE
CPU AM3352 Processor, 800 MHz
Memory Flash: 256MB; RAM: 2 GB
Reset Switch Yes (for Making Device Default)
AUDIO VISUAL
LEDs 1 Tri-Color LED
Buzzer Yes
ENVIRONMENTAL
Operating Temperature            -10 °C to + 50 °C (14°F to 122°F)
Humidity 5% to 95 % RH Non-Condensing
POWER
Power Adaptor: 12 VDC @ 2 A
PoE+: 12 VDC @1.8 A
Power to Door Lock With PoE: 12VDC@ 0.5A for 1 Lock
With PoE+: 12VDC @ 1A for 1 lock or 12VDC @ 0.5A for 2 Lock
(0.5A Each Lock)
Adaptor: 12VDC@ 1A
Reader Power Output Max 12VDC @ 0.250A (on External Supply or PoE/PoE+)
MECHANICAL
Dimensions (WxHxD) 78mmx140mmx25mm (3”x5.5”x0.98”)
Weight Product Weight: 0.45 Kg (0.99Lbs)
Product with Accessories Weight: 0.74 Kg (1.63Lbs)
Enclosure Material Metal Aluminium Casing (Black)
CERTIFICATIONS
Certifications RoHS, CE, FCC and UL
COMPATIBILITY
Matrix Readers COSEC PATH Series and COSEC READER CB
Third-Party Wiegand Readers
Operational Modes Server Mode (With or Without PANEL LITE) with CENTRA or VYOM
Standalone Mode (With PANEL LITE)
INSTALLATION
Mounting Wall mounting with L shape Hinge
Din rail mounting provision. (Din rail mounting part is not included)
PACKAGING
Packaging Content 1. Main unit
2. Adaptor (12VDC, 2A)
3. Wall mounting plate
4. Screws M5*24 CSK -2 Nos
5. Reader Cables (2 pcs.)
6. Connectors
