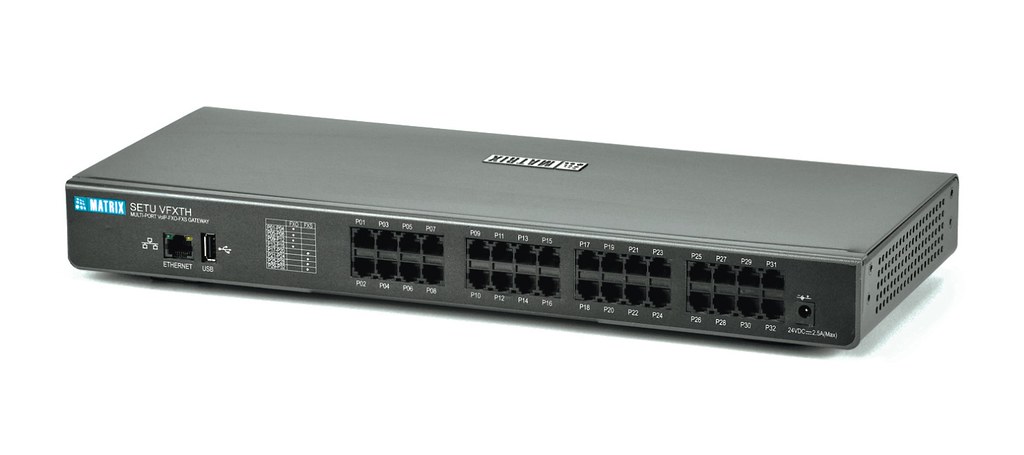

Matrix VFXTH - Multi-Port VoIP/FXO/FXS Gateways
The VFX series is a range of multi-channel VOIP - FXO and FXS Gateways. VFX series offer 4-8-16-32 FXO/FXS Gateways to connect TDM based telephony infrastructure to an IP network. For organizations that have already migrated to IP, VoIP Gateways provides a POTS trunking option. Ideal for legacy TDM phone systems, these Gateways offer access to new generation VOIP and benefits of low-cost long-distance calls. Alternatively, the VFX series provides POTS (CO) network access for IP Phone Systems and Softswitches for local area connectivity. The VFX series supports up to 32 VOIP channels, Fax over IP support and flexible dialing plans. The dedicated signal processing resources and a superior protocol set ensures multiple call capabilities with toll grade voice quality. The VFX - VOIP-FXS and FXO Gateways enable small and medium businesses to create a seamless office environment, integrate a traditional phone system into an IP network and significantly reduce communication costs. These Gateways are ideally suitable for business and consumer VOIP services, including call centers and multi-location environment. The VFXTH also enables large organizations to connect branch offices dispersed globally for Site-to-Site IP Telephony. This in-turn reduces communication costs and helps them utilize existing telecom infrastructure.
Key Features
- Call Detail Records of 2,000 Calls
- Caller ID Presentation on Analog Station
- Emergency Number Dialling
- Fax Over IP (T.38 and Pass-through)
- Hotline Extension Setting
- Make and Receive Calls Using Analog Terminals over the IP Network
- Port Forwarding and DMZ
- PSTN Pass-through Port to make Calls Over POTS during IP Network Outage
- Restrict Unwanted Calls with a List of Denied Numbers
- SNMP Monitoring
- TR-069 Auto-configuration
- VOIP Security Over SRTP/TLS Encryption
- Web-based Configuration and Management
Applications

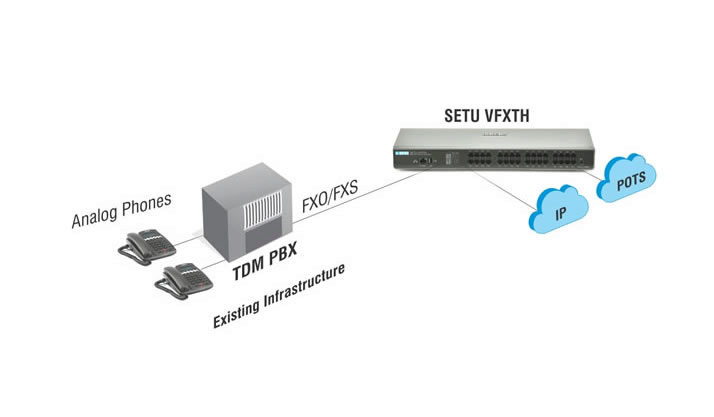

VOIP Gateway for Traditional PBX
- VOIP Access to Traditional Analog Systems
- Enhance Connectivity of Existing TDM PBX
- Maintain Existing Dialling Habits and Business Communication Patterns

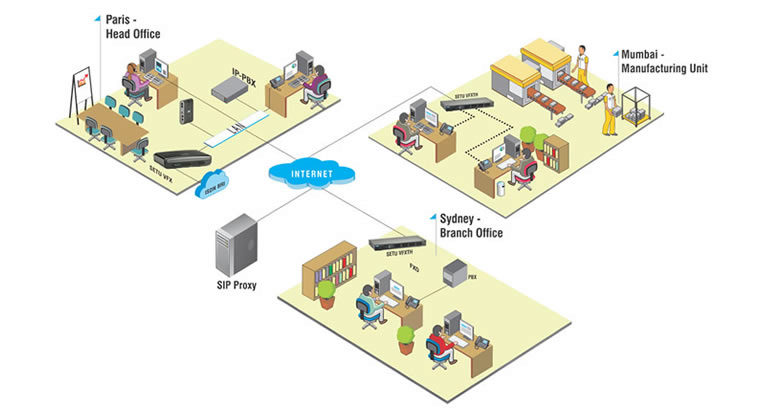

Multi-site Connectivity
- Cost-effective Inter-branch Office Communication
- Centralized Management and Monitoring
- Remote Access to Call Management Features of Main Office IP-PBX System
- Peer-to-peer and Proxy Calling between Distant Locations
- Maintain Vital Business Continuity during IP Network Failure
Specifications
| Model: | |
| VFX404 | VOIP-FXO-FXS Gateway with Four VOIP, Four FXS and One FXO (Pass-through) Ports |
| VFX440 | VOIP-FXO-FXS Gateway with Eight VOIP and Four FXO Ports |
| VFX808 | VOIP-FXO-FXS Gateway with Eight VOIP, Eight FXS and One FXO (Pass-through) Ports |
| VFX880 | VOIP-FXO-FXS Gateway with Eight VOIP and Eight FXO Ports |
| VFXTH0808 | VOIP-FXO-FXS Gateway with 16 VOIP, Eight FXO, and Eight FXS Ports |
| VFXTH3200 | VOIP-FXO-FXS Gateway with 32 VOIP and 32 FXO Ports |
| VFXTH0016 | VOIP-FXO-FXS Gateway with 16 VOIP and 16 FXS Ports |
| VFXTH0024 | VOIP-FXO-FXS Gateway with 24 VOIP and 24 FXS Ports |
| VFXTH0032 | VOIP-FXO-FXS Gateway with 32 VOIP and 32 FXS Ports |
| VoIP Port: | |
| Protocol | SIPv2, SDP, RTP (RFC 2833) |
| Connector | Ethernet (RJ45) |
| SIP Accounts | Up to 32 |
| Echo Cancellation | G.168 with up to 128 ms Tail length |
| Voice Codecs | G.711 (A/µ Law), G.723.1, G.729AB, GSM-FR, and iLBC |
| FXO Port | |
| Connector | RJ45 |
| Dialing and Reception | DTMF and Pulse Dialling |
| CLIP | DTMF, FSK ITU-T V.23 and FSK Bellcore 202A CLI |
| PSTN Pass-Through | One (SETU VFX404 and SETU VFX808) |
| FXS Port | |
| Connector | RJ11 |
| Dialing and Reception | Pulse and DTMF Dialling |
| CLIP | DTMF and FSK CLI Presentation |
| Call Maturity | Polarity Reversal for Call Connect/Disconnect Signalling |
| Power Supply | |
| Input | VFX: 12VDC @2A through External Adaptor VFXTH: 24VDC @2.5A through External Adaptor |
| Power Consumption (Typical) | VFX: 5W VFXTH: 60W |
| Other | |
| Dimension | VFX: 15.5 x 22.0 x 3.5cm (6.10”x8.7”x1.4”) VFXTH: 40.7 x 17.2 x 5.1 cm (16.10”x6.8”x 2.0”) |
| Mounting Options | Wall Mount and Table Top |
| Operating Temperature | 0°C to +45°C (34°F to +113°F) |
