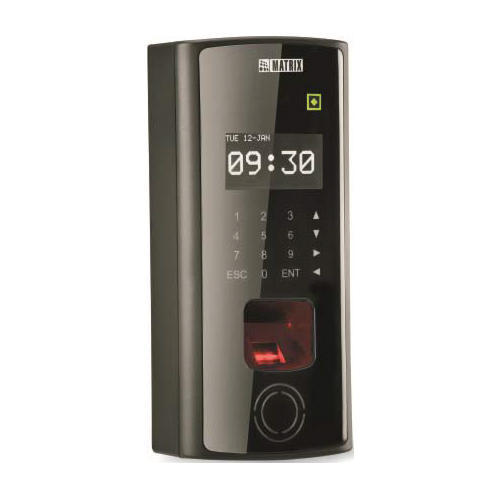

Cosec DOOR FOT - Fingerprint Door Controller




It is an obvious fact that employees have always been bickering with the HR department pertaining to the issues of the manual attendance marking system. A biometric attendance system can bring about drastic improvements in managing employees and processes. With the advancement in the high-tech biometric attendance system, businesses have started operating more accurately and efficiently.

The COSEC DOOR FOT, one of the variants of Door Series, is specifically designed for fulfilling demanding Time-Attendance application requirements. An automated biometric attendance system comprises of various phases such as enrolment of employees’ credentials, capturing user attendance, processing attendance data, generate informative reports and payroll processing. It is a premium door controller which records and controls entries and exits through various credentials like Fingerprint, RFID Card, and PIN. Its award-winning design, multiple credentials, and connectivity options fulfill the requirements of all types of businesses for biometric Time-Attendance application. Therefore, this solution is ideal for various sectors that include Hospitals, Schools, Banks, Government Institutes, Hotels, Remote Sites and Large/Small Enterprises.

Identification through the biometric attendance system becomes quick and records in/out time clocking of employees instantaneously. The COSEC DOOR FOT, a well-engineered Door Controller, can be used for various applications like Time-Attendance and Cafeteria Management. It records the exact time of a user using a fingerprint RFID Card and PIN code in less than one second.

The COSEC DOOR FOT is a door controller, which has 128*64 Dot Matrix Display with touch sense keypad. It can store up to 9,600 fingerprint templates and 5,00,000 events. It identifies the user in less than one second. Moreover, with Ethernet and 3G/4G/LTE connectivity, this device offers extra flexibility in designing a security solution while reducing installation and maintenance costs. This RFID Card based or fingerprint door entry system can work in a network or a COSEC SAMAY (standalone) mode. It offers various interfaces like Ethernet, Power Supply and USB port. The COSEC DOOR FOTQ, another variant of door series is also a fingerprint Time-Attendance terminal with STQC certified sensor. Using COSEC DOOR FOT/FOTQ as a fingerprint time-attendance device diminishes chances of entering erroneous attendance. It offers all the time-attendance features, but at a low price. Hence, this device proves cost-effective for organizations looking for an exclusive Time-Attendance device.



     Cosec DOOR FOT - Fingerprint Door Controller





Key Features



  • Superior Design
    -iF Design, Good Design, and India Design Mark Awards
    -128x64 LCD Display
    -Touch Sense Keypad
    -Audio Visual Indications
  • Saves Time by Quick Fingerprint Identification
    -Identification in Less than One Second
    -1:1 and 1:N Verification
  • Manage Multiple users from a Device
    -Events Storage up to 5,00,000
    -9,600 Fingerprint Templates
  • Select Credential as per Requirement
    -Fingerprint, RFID Card and PIN
    -Proximity Cards
    -EM Prox and HID Prox Cards
  • Perform Functions Faster from the Device itself
    -User Enrolment from Device
    -Perform Attendance Functions
    -Take Out the Event Data via USB
  • Perform Applications using APIs
    -Communication with Third-Party Software
    -Integration using Device API
    -Device and User Configuration, Enrollment, Transfer of Commands and Events
  • Convenient Operation and Installation
    -User Friendly UI
    -Standalone and Network Operation
    -Easy Mounting on a Back Plate
    -Leverage Existing Network Infrastructure
    -Minimum Wiring







Applications



  • Time-Attendance
  • Cafeteria Management

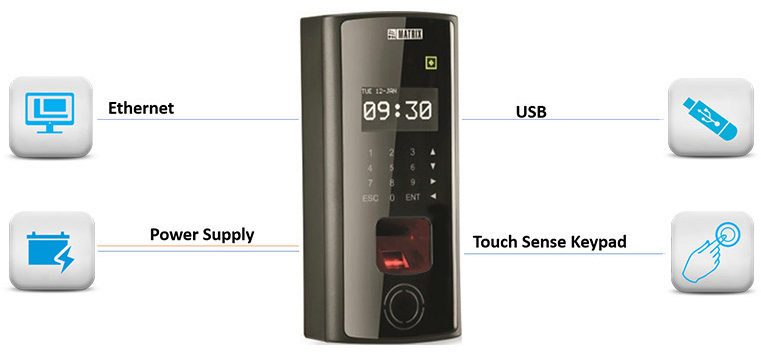

Interface Diagram



Cosec DOOR FOT - Fingerprint Door Controller





Variants

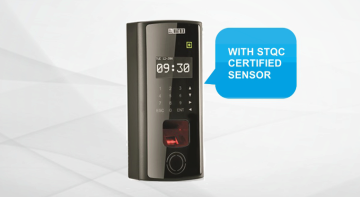

Cosec DOOR FOTQ - Fingerprint Door Controller







Technical Specifications



VariantsCOSEC DOOR FOTCOSEC DOOR FOTQ
Credential Support Fingerprint, RFID Card and PIN Fingerprint, RFID Card and PIN
Display 128 x 64 Dot Matrix Display 128 x 64 Dot Matrix Display
Keypad 16 Touch Sense Keys 16 Touch Sense Keys
User Capacity 50,000 (Max. 9600 in 1:N Mode) 50,000 (Max. 9600 in 1:N Mode)
Template Per User Up to Ten (Single Template per Finger Mode) or Up to Five (Dual Template per Finger Mode)       Up to Ten (Single Template per Finger Mode) or Up to Five (Dual Template per Finger Mode)
Template Storage Capacity      9600 in 1:N Mode and 1 lac in 1:1 Mode 9600 in 1:N Mode and 1 lac in 1:1 Mode
Cards Per User Up to Two Up to Two
Event Buffer 5,00,000 5,00,000
Types of Cards Support Proximity Card (EM Prox and HID Prox) Proximity Card (EM Prox and HID Prox)
Mobile Broadband Yes (3G/4G Support) Yes (3G/4G Support)
RS-485 Yes (115.2Kbps) Yes (115.2Kbps)
Ethernet Yes (10 Mbps / 100Mbps on Ethernet) Yes (10 Mbps / 100Mbps on Ethernet)
USB 2 USB Ports (1 for Data Transfer and 1 for 3G/4G Dongle) 2 USB Ports (1 for Data Transfer and 1 for 3G/4G Dongle)
Buzzer Yes Yes
LED 4 LEDs (Status, Alarm, Allowed, Denied) 4 LEDs (Status, Alarm, Allowed, Denied)
CPU 400MHz ARM 9 based Processor 400MHz ARM 9 based Processor
Flash Memory 256MB 256MB
RAM Memory 128MB DDR2 128MB DDR2
Input Power 12VDC @ 2A 12VDC @ 2A
Battery Backup No No
Humidity 5% to 85% RH Noncondensing 5% to 85% RH Noncondensing
Operating Temperature 0°C to + 50°C (32°F to 122°F) 0°C to + 50°C (32°F to 122°F)
Tamper detection Yes Yes
Certification CE and RoHS CE and RoHS
STQC Certified No Verified
Dimensions (mm) 100 x 220 x 56 100x220x56
Weight (kgs) 0.65 0.65
