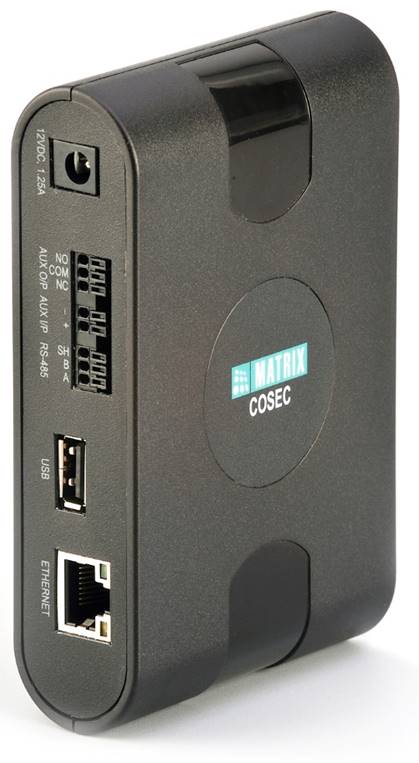

Cosec PANEL LITE - Controller Bridge




The COSEC PANEL LITE is an intelligent device used for access control applications. It works in two different architectures. With In-Network Architecture, The COSEC PANEL LITE acts as a bridge between the controllers and COSEC. In Standalone Architecture, it works independently without requiring any server. It can manage 255 COSEC door controllers and 25,000 users from its UI.



     Cosec PANEL LITE - Controller Bridge





Key Features



  • Ethernet and RS-485
  • USB Port for Wi-Fi, 3G/4G and Data Transfer
  • Auxiliary Input and Output Port
  • Advanced Access Control Features
  • Events Storage up to 500,000







Applications



  • Access Control





Modes of Operation

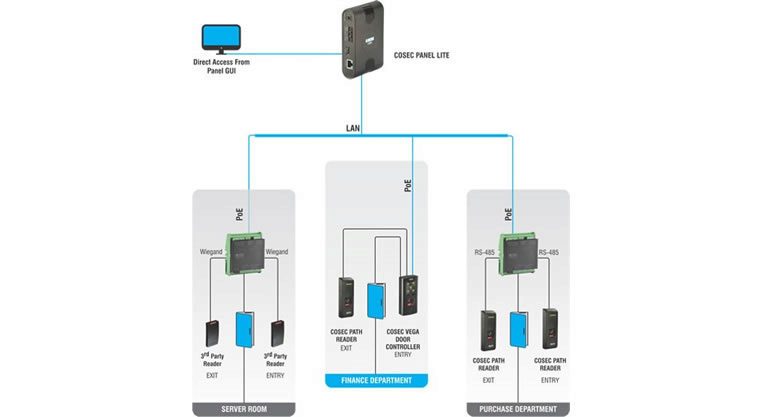

Standalone Mode of Operation

Cosec PANEL LITE - Controller Bridge





In Standalone Architecture, COSEC PANEL LITE (site controller) works independently without requiring a server for access control application. All Matrix COSEC biometric and card-based door controllers are connected to the site controller for implementing advance access control features and restricting any unauthorized entry. With its interactive and user-friendly UI, it can manage 255 COSEC door controllers and 25,000 users. This mode of operation is ideal for small and medium businesses, which need to advance access control with minimum investment.

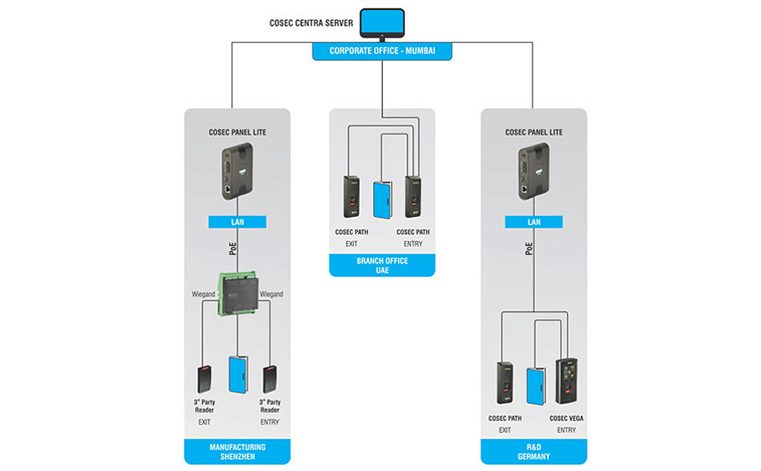

Network Mode of Operation



Cosec PANEL LITE - Controller Bridge



With In-Network Mode of operation, The COSEC PANEL LITE is required to implement advance Access Control features. It acts as a bridge between COSEC and COSEC Door Controllers. COSEC biometric and card-based door controllers are connected with COSEC PANEL LITE using Ethernet or RS-485.

COSEC PANEL LITE is required in Network Architecture:

  • When Number of User Capacity Exceeds the Door Controller's Capacity
  • For Advanced Access Control Features like Guard Tour, Man Trap, Dead-Man Zone, Duress Detection, Do Not Disturb, etc.









Technical Specifications





Maximum Door Controllers 255
Number of Users 25,000
Events Buffer 5,00,000
Door Controllers on Ethernet        255
Door Controllers on RS-485 32
Communication Interface Ethernet or RS-485 (10/100 Mbps on Ethernet)
USB One USB Port (for Data Transfer and for 2G-3G-4G /Wi-Fi Dongle)
Aux-In Port Yes, One Port Available
Aux-Out Port Form C and SPDT Relay (Max 5A@24 VDC or 5A@230 VAC)
Standalone mode Uses built-in GUI to Control Door Controller and Users
Network mode Uses Feature and Capacity Enhancement for Access Control with Connection to Server
Software Built-in Interface in Standalone Mode with Door Controller
Certification CE and RoHS
Mounting Wall or Table Top
Buzzer Yes
LED Available for Power, Status and Alarm
Input Power External Power Adapter (12VDC @ 2A)
Battery Backup No
Humidity 5% to 95% RH Non-condensing
Operating Temperature -10°C to + 55°C
