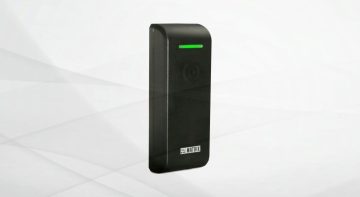

Cosec PATH DCCX - Smart Card Reader

Live Search

Tel: 410-583-1701     Email: Sales & Technical

Cosec PATH DCCX - Smart Card Reader




The COSEC PATH DCCX is a series of compact front-end terminal devices to record and control entries and exits through proximity and smart cards. Built with advanced features like IP65, PoE and compact design, it fulfills the time-attendance and access control requirements of organizations. It is a modular, scalable and feature-rich Time-Attendance and Access Control device.

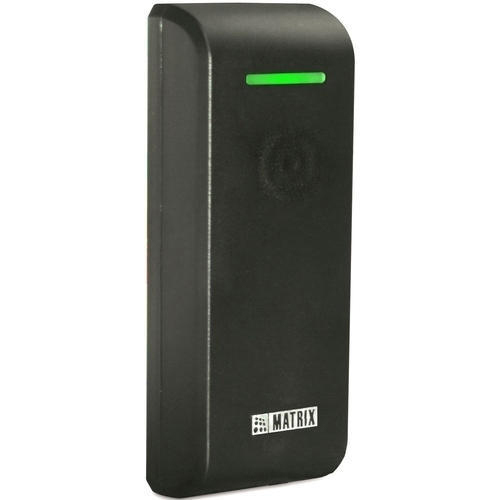

     Cosec PATH DCCX - Smart Card Reader





Key Features



  • Superior Design
    -Compact Design
    -IP65 Rating
    -tri-color LED (Allowed, Denied/Alarm and Status)
  • Better Capacity to Manage Multiple Users and Events
    -Events Storage up to 50,000
    -9,600 Fingerprint Templates
    -10,000 Users
  • Choose Credential as per Convenience
    -Fingerprint, Proximity and Smart Cards
    -Proximity: EM Prox and HID Prox
    -Smart: Mifare and HID iCLASS
  • Convenient Communication Options
    -Ethernet
    -RS-485
    -Power over Ethernet (PoE)
  • Perform Applications using APIs
    -Communication with Third-Party Software
    -Communicate using Device API
    -Device and User Configuration, Enrolment, Transfer of Commands and Events
  • User-Friendly Operation and Installation
    -Standalone and Network Operation
    -Easy Mounting on a Back Plate
    -Leverage Existing Network Infrastructure
    -Minimum Wiring







Applications



  • Time-Attendance
  • Access Control
  • Visitor Management
  • Contract Workers Management

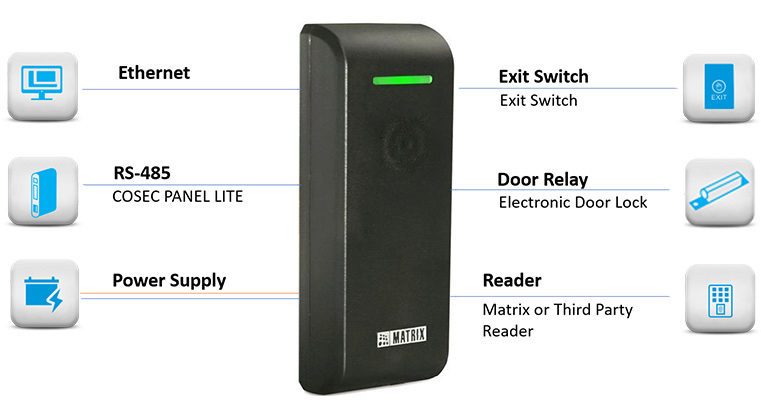

Interface Diagram



Cosec PATH DCCX - Smart Card Reader





Variants



Cosec PATH DCFE - Fingerprint Door Controller
COSEC PATH DCCE



Cosec PATH DCCI - Fingerprint Door Controller
COSEC PATH DCCI





Cosec PATH DCCM - Fingerprint Door Controller
COSEC PATH DCCM





Technical Specifications



VariantsCOSEC PATH DCCECOSEC PATH DCCMCOSEC PATH DCCI
Credential Support RFID Card RFID Card RFID Card
Card Type EM Prox Mifare Smart HID iCLASS, HID Prox
User Capacity 10,000 10,000 10,000
Cards Per User Two Two Two
Events Buffer 50,000 50,000 50,000
RS-485 Yes (115.2Kbps) Yes (115.2Kbps) Yes (115.2Kbps)
Battery Backup No No No
Ethernet Yes (10/100Mbps) Yes (10/100Mbps) Yes (10/100Mbps)
PoE Yes (IEEE 802.3 af) Yes (IEEE 802.3 af) Yes (IEEE 802.3 af)
Exit Switch Yes Yes Yes
Door Status Sense Programmable NO, NC and Supervised Programmable NO, NC and Supervised Programmable NO, NC and Supervised
Door Lock Relay Form C and SPDT Relay (Max 1A@30 VDC) Form C and SPDT Relay (Max 1A@30 VDC) Form C and SPDT Relay (Max 1A@30 VDC)
Door Lock Power Internal 12VDC @ 0.5A or External Internal 12VDC @ 0.5A or External Internal 12VDC @ 0.5A or External
Reader Interface types        RS-232 and Wiegand IN/OUT RS-232 and Wiegand IN/OUT RS-232 and Wiegand IN/OUT
Buzzer Yes Yes Yes
LED Single LED (TriColor) Single LED (Tri-Color) Single LED (TriColor)
CPU 32Bit Microcontroller 32Bit Microcontroller 32Bit Microcontroller
Flash Memory 512kB Internal Memory + 4MB External Flash      512kB Internal Memory + 4MB External Flash        512kB Internal Memory + 4MB External Flash
RAM Memory 128kB SRAM 128kB SRAM 128kB SRAM
Input Power 12VDC @ 2A 12VDC @ 2A 12VDC @ 2A
Humidity 5% to 85% RH non- condensing 5% to 85% RH non- condensing 5% to 85% RH non- condensing
Tamper Detection Yes Yes Yes
IP65 Verified Verified Verified
Certification CE and BIS CE and BIS CE and BIS
Dimension (mm) 50.5X137X34 50.5X137X34 50.5X137X34
Weight (kgs) 0.18 0.18 0.18
