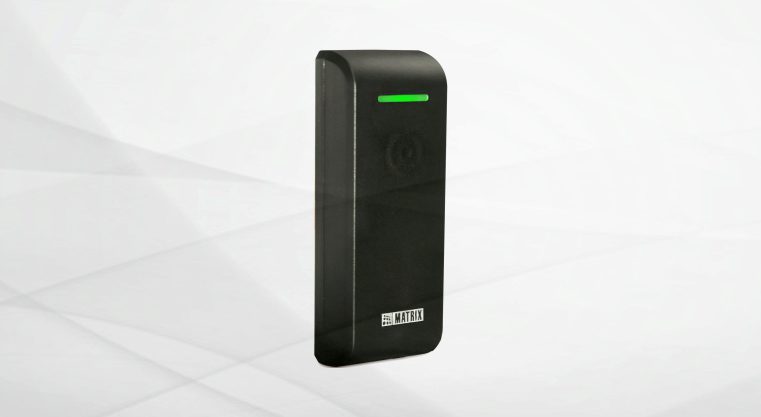

Cosec PATH RDCX- Card Reader
The COSEC PATH RDCX has advanced features like IP65, PoE and compact design, which fulfills the access control requirements of organizations. It’s a card-based reader with elegant design, making it suitable for monitoring the exit point.
Key Features
- Superior Design
-Compact Design
-IP65 Rating
-tri-color LED (Allowed, Denied/Alarm and Status) - Multiple Types of Card Support
-Proximity and Smart Cards
-Proximity: EM Prox
-Smart: Mifare and HID iCLASS - Convenient Communication Options
-Ethernet
-RS-232 and RS-485
-Fetch Power from Device - User-Friendly Operation and Installation
-Standalone and Network Operation
-Easy Mounting on a Back Plate
-Leverage Existing Network Infrastructure
-Minimum Wiring
Applications
- Access Control
Variants
Cosec PATH RDCE
Cosec PATH RDCI
Cosec PATH RDCM
Technical Specifications
| Variants | COSEC PATH RDCE | COSEC PATH RDCM | COSEC PATH RDCI |
|---|---|---|---|
| Credential Support | RFID Card | RFID Card | RFID Card |
| Types of Card | EM Prox | Mifare Smart | HID iCLASS, HID Prox |
| Communication | RS-485 and RS- 232 | RS-485 and RS- 232 | RS-485 and RS- 232 |
| Buzzer | Yes | Yes | Yes |
| LED | Single LED (Tri-Color) | Single LED (Tri-Color) | Single LED (Tri-Color) |
| Input Power | 12 VDC @ 0.1A | 12 VDC @ 0.1A | 12 VDC @ 0.1A |
| Humidity | 5% to 85% RH Non-condensing | 5% to 85% RH Non-condensing | 5% to 85% RH Non-condensing |
| Operating Temperature | 0°C to + 50°C (32°F to 122°F) | 0°C to + 50°C (32°F to 122°F) | 0°C to + 50°C (32°F to 122°F) |
| Tamper Detection | Yes | Yes | Yes |
| IP65 | Verified | Verified | Verified |
| Dimension (mm) | 50.5X137X34 | 50.5X137X34 | 50.5X137X34 |
| Weight (kgs) | 0.27 | 0.27 | 0.27 |
