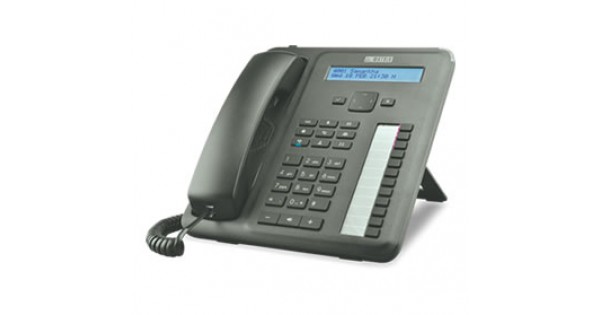

Matrix VP310E - Executive IP Phone




The Matrix VP310E is a next-generation Smart IP Phone for today's dynamic business executives. The VP310E collaborates with VoIP Phone System to provide a rich experience of office telephony and advance call management features. The VP310E provides HD voice for office communication with all enterprise-grade features on the fingertips of the executives making it the perfect VoIP telephone handset. The phone provides corporate directory integration, DSS keys, fixed function keys, LCD with Backlit and many such features, making it much easier for executives to reach out to people and maintain business continuity. The VP310E is designed to offer reliable communication solutions and collaborative business experience. Crystal-clear Audio, intelligently designed Button Layout, DSS Keys and Plug-n-Play Connectivity makes the VP310E an ideal choice for business executives. The VP310 is tightly integrated with the ETERNITY IP-PBX system for speed of operation and streamlined communications.

     Matrix Sparsh VP310E - Executive IP Phone



Key Features



  • 2 Line LCD with Backlit
  • High-Quality Full Duplex Speaker Phone
  • Fixed Function Keys (With LED)
  • Voice Mail, Mute, Do Not Disturb, Forward, Logs, and Speaker
  • Adjustable Desk Stand
  • Fixed Function Keys (Without LED)
  • Hold, Conference, Contacts, and Transfer
  • Message Wait and Ringer Lamp
  • 12 DSS/BLF Keys for Feature, Line and Extension
  • Power over Ethernet (IEEE 802.3af)
  • PC and LAN Ethernet Ports
  • Plug-n-Play
  • Headset Interface – 3.5mm, RJ9





Specifications





Audio Features
  • Full-duplex Hands-free Speakerphone with AEC
  • Codecs: G.711(A/μ), G.722, G.723, G.729, iLBC
  • AEC, AJB, AGC
Phone Features
  • Call Hold
  • Mute
  • Do Not Disturb
  • Speed Dial
  • Hotline
  • Redial
  • Call Back
  • Auto Answer
  • Call Forward
  • Call Waiting
  • Call Transfer
  • Room Monitoring
  • Conference
  • Directory
  • Call Logs
  • Paging
  • Dial-by-Name
Call Management
  • Message Wait Lamp
  • Ringer Lamp
  • Voice Mail
  • Call Pickup – Group, and Selective
  • Paging
Display
  • 2 Line LCD with Backlit
  • LED for Incoming/Ongoing Call, Mute and Hold
  • Intuitive User Interface with Icons
  • Multiple Languages
  • Caller ID with Name and Number
Networking and Security
  • SIP v2 (RFC3261)
  • IP Assignment: Static / DHCP/ PPPoE
  • QoS: 802.1p / Q tagging (VLAN), Layer 3 ToS, DSCP
  • SRTP for Voice
  • Transport Layer Security (TLS)
  • AES Encryption for Configuration File
  • Digest Authentication using MD5
  • IEEE802.1X
Physical Features
  • 42 Keys
  • 1 x RJ9 Handset Port
  • 1 x RJ9 Headset Port
  • 2 x 10/100 Mbps LAN & PC Ports
  • Dimension (L x B x H): 207 X 335 X 78
Power Supply
  • Power Adapter: 5VDC/600mA (Included in the Box)
  • Power over Ethernet (IEEE 802.3af)
  • Power Consumption: 5W (Typical)
  • Connector: DC Power Jack
Mechanical
  • Weight: 0.830 Kgs
  • Installation: Wall Mount, Table-top
  • Colour: Black
Environmental
  • Operating Temperature Range: 0 to 45°C
  • Storage Temperature: 0 to 55°C
  • Operating and Storage Humidity: 5 to 95%, RH, Non-condensing
Certifications
  • CE, FCC-15, RoHS
