Cosec DOOR PVR - Biometric Palm Reader

Live Search

Tel: 410-583-1701     Email: Sales & Technical

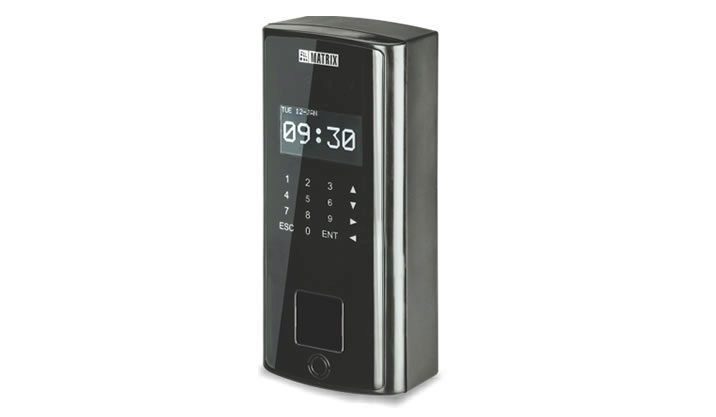

Cosec DOOR PVR - Palm Reader




COSEC DOOR PVR is a highly secure and contactless biometric device that reads the internal vascular pattern of the palm. These patterns are unique to each individual and exist underneath the skin layer, which cannot be forged thereby making it most secure compared to other biometric technology. To give accurate results, COSEC DOOR PVR uses Fujitsu biometric palm vein scanner to provide the utmost security and hygiene. This makes COSEC DOOR PVR more secure in comparison to other biometric devices. Being contactless and technologically advanced, it is appropriate for places like hospitals, chemical industries, nuclear stations, factories, corporate houses, R&D centers, financial institutes and many others where security and hygiene are of utmost importance.

Hence, with this unique palm vein recognition system, COSEC DOOR PVR is capable of storing up to 20,000 user templates and has up to 1,00,000 events storage capacity. It proves to be extremely secured for Time-Attendance and Access Control applications with a false acceptance ratio of less than 0.00008%.



     Cosec DOOR PVR - Biometric Palm Reader



Key Features



  • Contactless Technology
    -Biometric Palm Vein Scanner
    -Reads Vascular Pattern of the Palm
    -Minimizes Hygiene Concerns
    -Fujitsu’s Palm Vein Sensor
  • Higher Capacity to Manage Users and Events
    -20,000 Palm Templates
    -1,00,000 Events Buffer
    -10,000 Users
  • Faster Access and Higher Security
    -1:1, 1:N and 1:G Verification
    -Faster Identification through Server
    -Tamper Detection
  • Multiple Connectivity Options for Communicating with Server
    -Ethernet
    -Built-in Wi-Fi
    -Mobile Broadband (3G/4G)
  • Choose Credentials as per Requirement
    -Palm Vein, Card and PIN
    -Proximity and Smart Card
    -EM Prox, HID iCLASS, HID Prox and Mifare
  • Multiple Interfaces for Different Types of Applications
    -Door Relay and Door Sense
    -Auxiliary Input and Output Ports
    -Exit Reader and Exit Switch
  • User-Friendly Design
    -Dot Matrix LCD
    -Touch Sense Keypad







Applications



  • Time-Attendance
  • Access Control
  • Visitor Management
  • Contract Workers Management

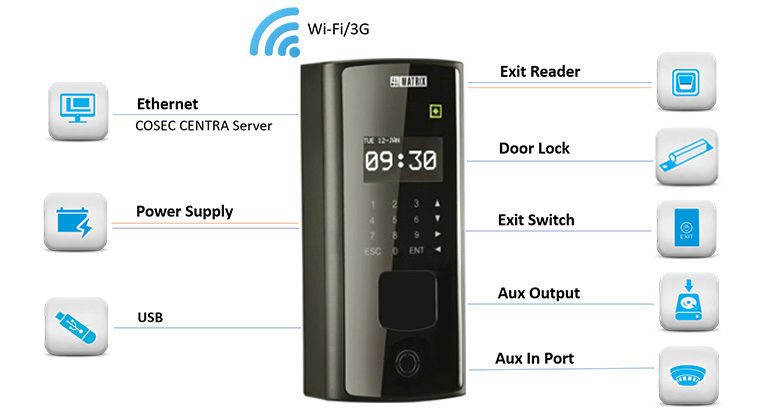

Interface Diagram



osec DOOR PVR - Biometric Palm Reader



Variants

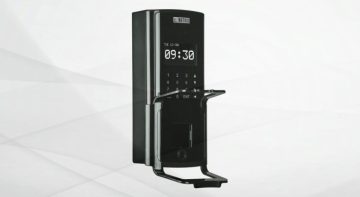

Cosec DOOR PVR - Biometric Palm Reader

COSEC DOOR PVR
Palm Vein Door Controller comes with Detachable Hand Guide

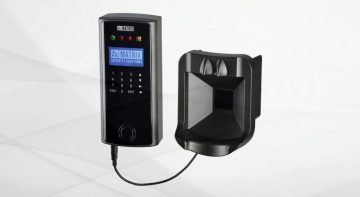

Cosec DOOR PVR ES - Biometric Palm Reader

COSEC DOOR PVR ES
Palm Vein Door Controller comes with External Hand Guide





Technical Specifications



Credential Support Palm, Card and PIN
Display 128 x 64 Dot Matrix Display
Keypad 16 Touch Sense Keys
User Capacity 10,000
Template Storage Capacity 20,000
Template Per User Up to Two Palms
Cards Per User Up to Two
Types of Cards Support EM Prox, HID iCLASS and Mifare (Card Module Required)
Event Buffer (Storage Capacity)      1,00,000
Mobile Broadband Yes (3G/4G Support)
Wi-Fi Yes (802.11 b/g/n)
Ethernet Yes (10/100 Mbps on Ethernet)
Exit Switch Yes
Door Status Sense Programmable NO, NC and Supervised
Door Lock Relay Form C, SPDT Relay (Max 2A@30 VDC)
Door Lock Power Internal 12VDC @ 0.5A or External
Aux-IN Programmable NO, NC and Supervised
Aux-OUT Form C and SPDT Relay (Max 2A@30 VDC)
Reader Interface types RS 232 sand Wiegand IN/OUT
Reader Types 1 Port for Card Reader/Third Party Wiegand Reader
USB 2 USB Ports (1 for Data Transfer/External Sensor Connectivity and 1 for 3G/4G Dongle)
LED 4 LEDs (Status, Alarm, Allowed, Denied)
Buzzer Yes
CPU 1 GHz ARM Cortex A8 based Processor
Flash Memory 256MB Flash
RAM Memory 512 MB DDR3 RAM
Input Power 12VDC @ 2A
Battery Backup No
Reader Power Output Internal 12VDC @ 0.5A or External
Humidity 5% to 85% RH Non-condensing
Tamper Detection Yes
Operating Temperature 0°C to + 50°C (32°F to 122°F)
