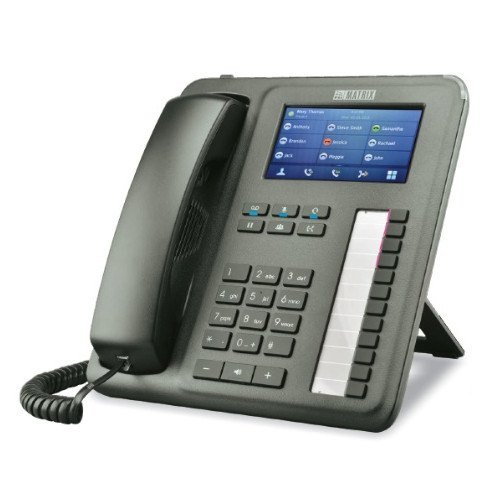

Matrix VP330E - Touch Screen IP Phone



A Desk Phone is the backbone of communication for controlling business operations. Today's efficient managers require desk phones with an elegant design, smart functionalities and multi-tasking ability as their command center. The VP330E Touch Screen IP Phone offers a perfect blend of Style and Substance for the desktop telephony experience. The VP330E is an intuitive Touch Screen IP phone integrating the traditional desk phone and a 4.3-inch vivid color display in a single device. With On-screen BLF Keys, Presence and Power over Ethernet (PoE), VP330E offers productivity features for speed of operations and collaboration. Thus, making it an ideal choice for reliable and flawless communication.

     Matrix Sparsh VP300E - Touch Screen IP Phone



Key Features



  • 4.3” Large Colour Touch Screen Display
  • Local Phonebook (500 Entries) and LDAP Client
  • Local Phonebook (500 Entries) and LDAP Client
  • Ergonomic and Modern Design
  • Ergonomic and Modern Design
  • PC and LAN Ethernet Ports
  • PC and LAN Ethernet Ports
  • Fixed Function Keys
  • Fixed Function Keys
  • Power over Ethernet (IEEE 802.3af)*
  • Power over Ethernet (IEEE 802.3af)*
  • Superior Voice Quality with High Definition Audio
  • Superior Voice Quality with High Definition Audio
  • Built-in 12 DSS Keys for Feature, Line and Extension
  • Built-in 12 DSS Keys for Feature, Line and Extension
  • On-screen BLF Monitoring - 18 Contacts
  • On-screen BLF Monitoring - 18 Contacts
  • Presence Indication
  • Presence Indication





Specifications





Audio Features
  • Full-duplex Hands-free Speakerphone with AEC
  • Codecs: G.711(A/μ), G.722, G.723, G.729,
  • AEC, AJB, AGC
Phone Features
  • Call Hold
  • Mute
  • Do Not Disturb
  • Speed Dial
  • Hotline
  • Redial
  • Call Back
  • Auto Answer
  • Call Forward
  • Call Waiting
  • Call Transfer
  • Room Monitoring
  • Conference
  • Directory
  • Call Logs
  • Paging
  • Dial-by-Name
  • BLF Soft Keys
  • Presence
Call Management
  • 18 On-screen BLF Keys
  • LED for Incoming/Ongoing Calls, Mute and Hold
  • Intuitive User Interface with Icons and Soft Keys
  • Multiple Languages
  • Caller ID with Name and Number
Display
  • 480x272 pixel Touch Screen Colour LCD
  • LED for Call and Message Waiting Indication
  • Intuitive User Interface with Icons and Soft keys
  • National Language Selection
  • Caller ID with Name and Number
Networking and Security
  • SIP v2 (RFC3261)
  • IP Assignment: Static/DHCP/PPPoE
  • QoS: 802.1p/Q Tagging (VLAN), Layer 3 ToS, DSCP
  • SRTP for Voice
  • Transport Layer Security (TLS)
  • AES Encryption for Configuration File
  • Digest Authentication using MD5
Physical Features
  • 2 x 10/100 Mbps LAN & PC Ports
  • 33 keys
  • 1 x RJ9 Handset Port
  • 1 x RJ9 Handset Port
  • 1 USB Port
  • Dimension (W x D x H): 207 X 335 X 78
Power Supply
  • Power Adapter: 5VDC/600mA (Included in the Box)
  • Power over Ethernet (IEEE 802.3af)
  • Power Consumption: 5W (Typical)
  • Connector: DC Power Jack
Mechanical
  • Weight: 840 Kgs
  • Installation: Wall Mount, Table-top
  • Colour: Black
Environmental
  • Operating Temperature Range = 0 to 45°C
  • Storage Temperature = 0 to 55°C
  • Operating and Storage Humidity = 5 to 95%, RH, Non-condensing
Certifications
  • CE, FCC-15, RoHS
