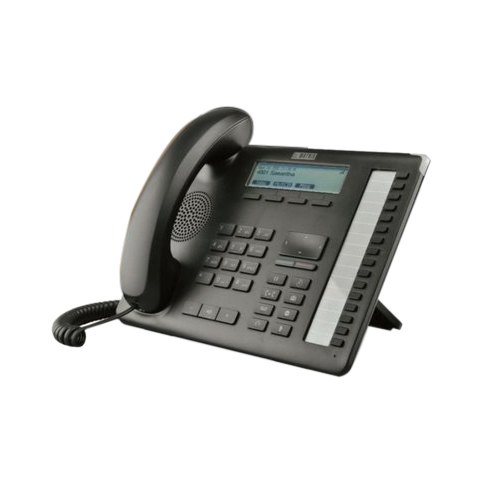

Matrix VP510E - Premium IP Phone for Business



The Matrix VP510E is a premium IP Phone pre-loaded with many VOIP phone features to serve the purpose of the most demanding businesses. The VP510E sets the benchmark for quality performance with an elegant design and crystal clear voice. The VP510E features an LCD Graphical Display, Context-Sensitive Keys, Direct Station Selection (DSS) keys, 32 Keys Expansion Module, Headset Connectivity, High-Quality Full Duplex Speaker Phone, and High Definition Audio Quality. The VP510E acts as the face of your communication system by delivering advanced features such as Multiple Call Line Appearance, Context Sensitive Soft Keys, Busy Lamp Field, Voice Mail, Speed Dial, and Corporate Directory.

     Matrix Sparsh VP510E - Touch Screen IP Phone



Key Features



  • 240*64 Pixels Graphical LCD with Backlit
  • Built-in 16 DSS Keys for Feature, Line and Extension
  • Built-in 16 DSS Keys for Feature, Line and Extension
  • 4 Context-Sensitive Keys
  • 4 Context-Sensitive Keys
  • Message Wait and Ringer Lamp
  • Message Wait and Ringer Lamp
  • Polyphonic Ring tune
  • Polyphonic Ring tune
  • Headset Interface – 3.5mm, RJ9
  • Headset Interface – 3.5mm, RJ9
  • Power over Ethernet (IEEE 802.3af)
  • Power over Ethernet (IEEE 802.3af)
  • Adjustable Desk Stand
  • Adjustable Desk Stand
  • Fixed Function Keys (with LED) –
  • Fixed Function Keys (with LED) –
  • Voice Mail, Mute, Do Not Disturb, Headset and Speaker
  • High-Quality Full Duplex Speaker Phone
  • High-Quality Full Duplex Speaker Phone





Specifications





Audio Features
  • Full Duplex Handsfree Speakerphone with AEC
  • Codecs: G.711(A/μ), G.722, G.723, G.729,
  • AEC, AGC
Phone Features
  • Auto Answer
  • Call Back
  • Call Forward
  • Call Hold
  • Call Logs
  • Call Transfer
  • Call Waiting
  • Conference
  • Dial-by-Name
  • Directory
  • Do Not Disturb
  • Hotline
  • Mute
  • Paging
  • Redial
  • Room Monitoring
  • Speed Dial
Call Management
  • Message Wait Lamp
  • Ringer Lamp
  • Voice Mail
  • Call Pickup – Group, and Selective
  • Paging
Display
  • 240*64 Pixels Graphical LCD with Backlit
  • LED for Incoming/Ongoing Call, Mute and Hold
  • Intuitive User Interface with Icons
  • Multiple Languages
  • Caller ID with Name and Number
Networking and Security
  • Proprietary SIP
  • IP Assignment: Static/DHCP/PPPoE
  • QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS and DSCP
  • SRTP for Voice
  • Transport Layer Security (TLS)
  • AES Encryption for Configuration File
  • Digest Authentication using MD5
  • 802.1x Authentication
  • MAC Cloning
Physical Features
  • 2 x 10/100 Mbps LAN and PC Ports
  • 33 keys
  • 1 x RJ9 Handset Port
  • 1 x RJ9 Handset Port
  • 1 USB Port
  • Dimension (L x B x H): 247 X 183 X 43
Power Supply
  • Power Adapter: 5VDC/600mA (Included in the Box)
  • Power over Ethernet (IEEE 802.3af)
  • Power Consumption: 5W (Typical)
  • Connector: DC Power Jack
Mechanical
  • Weight: 0.805 Kgs
  • Installation: Wall Mount, Table-top
  • Colour: Black
Environmental
  • Operating Temperature Range = 0 to 45°C
  • Storage Temperature = 0 to 55°C
  • Operating and Storage Humidity = 5 to 95%, RH, Non-condensing
Certifications
  • CE, FCC-15, RoHS





Have more questions about Matrix Telecom products or need to purchase? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
