Cosec ARC DC100P - Door Access Controller

Live Search

Tel: 410-583-1701     Email: Sales & Technical

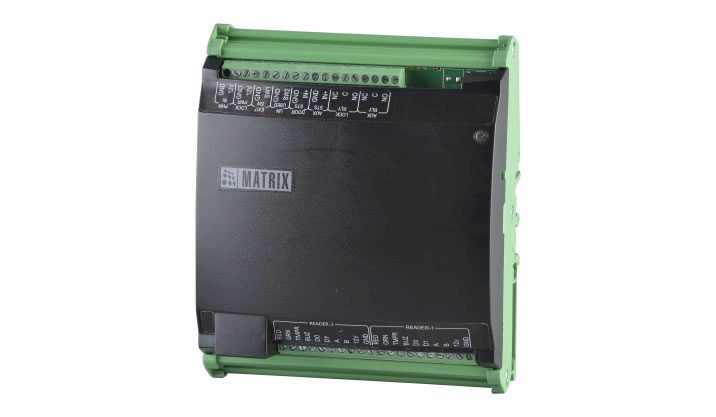

Cosec ARC DC100P - Door IP Access Controller




The COSEC ARC DC100P is an intelligent, compact IP panel with PoE for a single or double door. COSEC ARC dramatically simplifies access deployment. COSEC ARC works in two different operational modes – in Standalone Mode with COSEC PANEL LITE or in a Centralized Mode with COSEC application server. The state-of-the-art COSEC ARC can control two readers on Wiegand or RS-485, two-door locks, and other auxiliary devices, making it an ideal solution for any access control installation.



     Cosec ARC DC200S - Double Door IP Access Controller





Key Features



  • Compact Design
    -Supports 10,000 Users
    -Event Storage up to 1,00,000
    -Supports Data and Power on PoE for Readers and Door Locks
  • Modular Architecture
    -Works as a Standalone Access Control Solution
    -Ideal for Network Mode Solution at Multiple Locations
  • Easy Integration
    -Seamless Integration with Existing Third Party Wiegand Readers
    -Aux-In and Aux-Out Port to Connect Third-Party Devices







Applications



  • Access Control

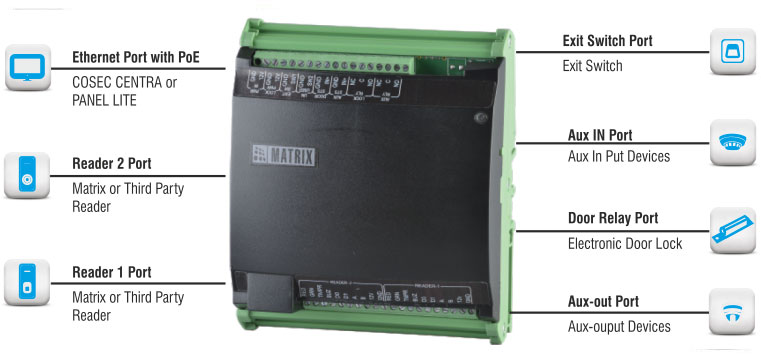

Interface Diagram



Cosec ARC DC100P - Door IP Access Controller







Technical Specifications



General
Readers Two
Door One/Two
Users 10,000
Event Buffer 1,00,000
Input Power PoE or External Power Adapter (12VDC@2A)
Communication Ethernet (with COSEC PANEL LITE or COSEC application)
CPU 32-bit Microcontroller
Flash Memory 512kB Internal Flash + 4MB External Flash
RAM Memory 128kB SRAM
LED Two (Device Status and Network Status)
Reader
Connections DATA0, DATA1, LED0, LED1, BUZZER, Tamper, Power, GND, RS-485A and RS-485B
Power 12VDC at max. 150mA per Reader
Reader Types Two Reader Ports for Wiegand or Matrix Reader
Interface Wiegand and RS-485 (for Matrix Reader only)
Max Distance 400 meters (on RS-485) and 100meters (on Wiegand)
IN/OUT
Exit Switch Port Yes
Door Status Sense          Programmable NO, NC and Supervised
Door Lock Relay Relay SPDT, Form C and Max 5A @ 24VDC
AUX-In Port Yes (Single door)/No (Double door)
AUX-Out Port Yes (Single door)/No (Double door)
