Security Routers - TC mGuard

Industrial Wireless Router

4G Industrial Wireless Routers  -  USA, Canada, and Global

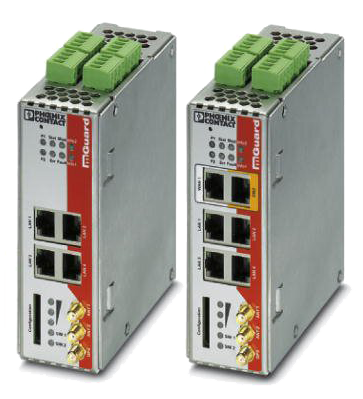

TC RS2000 and RS4000 mGuard - Industrial Wireless Router - Pulse Supply

Industrial 4G LTE security appliance, router, and VPN gateway.

The TC MGUARD RS2000 and RS4000 security appliances are industrial mobile network routers with mGuard technology. As such, the routers offer a remote maintenance infrastructure for the secure connection of machines and systems via the Internet. A high-speed mobile network interface and a 4-port switch are integrated into a compact metal housing. Secure remote communication on a global scale takes place via 4G LTE as well as UMTS and CDMA networks. With the help of an SD card as a configuration memory, the devices can be quickly and easily started up or replaced. The devices have a buffered real-time clock and Trusted Platform Module (TPM) for secure key generation and management.

SMS support is one of this product’s strongest features, allowing you to monitor certain digital alarms and obtain text messages based on input changes. It provides SMS functionality based on other alarms, such as loss of network connection via a wired interface (only TC 4000), VPN status, and other alarm notifications.

The TC mGuard RS4000 focuses on the highest level of availability for the system. It allows for a physical wired connection with the failsafe transition over to cellular networks in case of loss of connectivity.



Key Features



  • High-speed cellular interface with provider redundancy
  • 2 SIM Slots
  • Integrated 4-port switch
  • Maximum security with IPsec protocol on Layer 3
  • Web-based management, SNMP
  • Replaceable configuration memory
  • RS-232 interface with COM server function for integrating serial devices
  • Flexible routing
  • Up to 10 parallel VPN tunnels (up to 250 possible with additional license as an option)
  • Supports current certificates such as x509.v3
  • Stateful inspection firewall for dynamic filtering (Standard Firewall for RS2000 and advanced for RS-4000)
  • Extended temperature rating



Security Router TC mGuard Details

  • Central management tool
  • Easy integration with integrated Ethernet switch
  • Compatible with mGuard Secure Remote Service
  • Virtual Private Network - Secure and easy remote maintenance enables you to save on travel costs and shorten downtime, as well as improve service quality and customer loyalty. mGuard devices are VPN-compatible: All data is encrypted according to the secure IPsec standard. Access to the remote maintenance VPN tunnel is monitored and controlled by a firewall. In addition, machines and systems can be conveniently and easily networked using extensive routing functions.
  • Cellular - When sites are located in areas where a physical connection is difficult to obtain, the mGuard can provide connectivity via cellular networks around the world. The TC mGuard supports Verizon, AT&T, and international cellular carriers utilizing the latest 4G LTE technology. Utilizing carrier networks, you can access your remote sites easily and securely.
  • Powerful Firewall - mGuard devices are integrated into the network as a stand-alone system where they protect a part of the system network, a complete production cell, or an individual automation component – with no adverse effect on the system being protected. All incoming and outgoing data packets are monitored using pre-defined rules. These mGuard devices have a built-in stateful firewall for local device protection and Deep Packet Inspection (DPI) firewalls for some popular industrial protocols.
  • ComServer - In the industrial space, un-networked legacy systems are still very common. The built-in ComServer functionality allows access to serial devices using the RS232 interface, even over the mGuard Secure Cloud.
  • Router - mGuard can be used in router mode to isolate an office network from a control network, regulating the traffic that is passing through. NAT (Network Address Translation) router When identical machines are in a network in parallel, each machine must be configured individually so that it can be integrated into the higher-level communication system. Our mGuard products support the 1:1 NAT function, which means that production cells occupying an identical IP address can be used in a higher-level network. The individual configuration of standard machines is not required, saving time and making support easier.



Security Router TC mGuard Applications

  • Industrial
  • Oil & Gas
  • Factory
  • Utility
  • Energy & Transmission
  • Waste and Wastewater



Product Specifications





Product

TC mGuard RS2000 4G LTE

TC mGuard RS4000 4G LTE



Description



  • 4G LTE security device, router, and VPN gateway

  • mGuard Secure Cloud

  • Internet Connectivity

  • Secure SCADA

  • Remote Access

  • Remote Control

  • Point-to-point VPN

  • Always-on connection

  • On-demand connection

  • Industrial



  • 4G LTE security device, router, and VPN gateway

  • mGuard Secure Cloud

  • Internet Connectivity

  • Secure SCADA

  • Remote Access

  • Remote Control

  • Point-to-point VPN

  • Always-on connection

  • On-demand connection

  • Industrial

  • Critical Infrastructure

  • Advanced security

  • High performance

  • High VPN traffic



Part Numbers

1010464 - AT&T

1010462 - VZW

2903588 - Intl.

1010463 - AT&T

1010461 - VZW

2903586 - Intl.

Concurrent VPN Tunnels

2

10

Digital Inputs/Outputs

3 Inputs / 3 Outputs

3 Inputs / 3 Outputs

Number of LAN / WAN / DMZ Ports

4 / 0 / 0

4 / 1 / 1

UL Approvals

Class 1, Div II

Class 1, Div II

Carrier Approvals

AT&T, Verizon

AT&T, Verizon

Housing Type

Metal

Metal

mGuard Secure Cloud Capable



Control VPN with SMS



Control I/O with SMS



Alarms via SMS or Email





Public Internet Access





Routing Capability





Masquerading



1:1 NAT



Statefull Inspection firewall



Port Forwarding



IP Address Filtering



MAC Address Filtering



Firewall within VPN



VLAN



User Firewall



DMZ

-


WAN Redundency

-


Managed Switch

-


Redundency (Port, Firewall, VPN)**

-


Additional VPN Tunnels (up to 250)**

-


Deep Packet Inspection**

-


CIFS Integrity Monitoring**

-


Notes:
*The TC Router does not support both masquerading and 1:1 NAT at the same time
**Additional license required



DATA SHEETS


Data Sheet:  Security Routers - RS2000/RS4000 Comparison Chart

Data Sheet:  mGuard Family Brochure

Data Sheet:  Industrial Cellular Brochure

Data Sheet:  Industrial Wireless Brochure

Data Sheet:  Industrial Ethernet Brochure






Have more questions about Industrial Wireless Router solutions? Need to Purchase Pheonix Contact Industrial Wireless Router Products? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
