RAM 6000 Cellular RTUs

Industrial Wireless Router

4G LTE and 3G Industrial Cellular Routers  -  USA, Canada, and Global

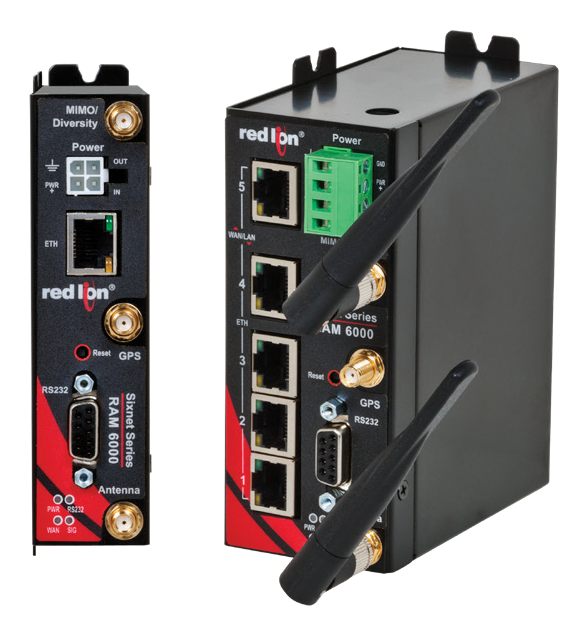

RAM 6000 Cellular RTUs - Industrial Wireless Router - Pulse Supply

Multi-Carrier RTUs with GPS and Local Control.

The Sixnet series RAM 6000 cellular RTUs with multi-carrier 4G LTE support, provide advanced control and communication in IIoT applications for remote assets and processes in extreme conditions.

RAM 6000 industrial cellular RTUs seamlessly connect Modbus and DNP3 enabled SCADA equipment via software selectable multi-carrier 4G LTE to remote networks or select Industrial Internet of Things (IIoT) Cloud platforms. Featuring a web-based event engine that can trigger I/O or send SMS text messages based on real-time operational data, RAM cellular RTUs can perform advanced local edge control and alert personnel of critical events. A built-in I/O concentrator allows the RAM to collect sensor data and optimize cellular data consumption by optionally reporting only on an exception or only transmitting relevant data points. With built-in Ethernet, serial, I/O and GPS, RAM RTUs easily integrate with existing equipment enabling remote monitoring and control for M2M applications in industries including oil and gas, water/wastewater, utility, transportation and mining.





Key Features



  • Multi-Carrier 4G LTE Connectivity
    • Select the best carrier during or post-deployment via software configuration
  • Multiple Communication Ports
    • One RS-232 serial port and up to five Ethernet ports provide seamless connectivity to remote devices
  • Rugged, Industrial Design
    • Reliable operation in extreme environments
    • -40° to 70°C operating temperature**
  • Modbus and DNP3 Support
    • Easily communicates with SCADA equipment with native protocols
  • Cloud Connectivity to IIoT Cloud Platforms
    • Allows for seamless communication with leading IIoT cloud platforms using MQTT messaging protocol
  • Out-Of-Band Management (OOBM)
    • Secure remote CLI access via serial port
    • Pre-loaded with many console port configurations
  • Secure Ethernet Connectivity
    • Routing capabilities for reliable communication
    • Stateful firewall, SSL, GRE, and VPN services reduce the risk of unwanted access
  • Advanced Event Engine Functionality
    • Easily configure control engine via drop-down menus
    • Trigger I/O, alarms and send SMS messages based on operational data
  • Low-Profile Form Factor - At 1.25 inches wide



RAM 6000 Cellular RTU Details

  • Multi-Carrier 4G LTE Connectivity (Available in 3G)
  • Natively Supports Modbus & DNP3 Protocols
  • Cloud Connectivity to IIoT Cloud Platforms
  • Routing Capabilities Provide Secure,
  • Reliable Communication
  • Active GPS Receiver Tracks Device Location
  • Event Engine can Trigger I/O or Send SMS Messages
  • Optional PoE (Powered Device) Support





RAM 6000 Cellular RTU Applications

  • Mining
  • Oil & Gas
  • Transportation
  • Utility
  • Water/Wastewater





Product Specifications

See  RAM 6000 Cellular RTUs Data Sheet (4G)

See  RAM 6000 Cellular RTUs Data Sheet (3G)

See  Supported Protocols Brochure
