MAX HD4 IP67

Industrial Wireless Router

4G LTE Mobile Outdoor Router  -  USA and Canada

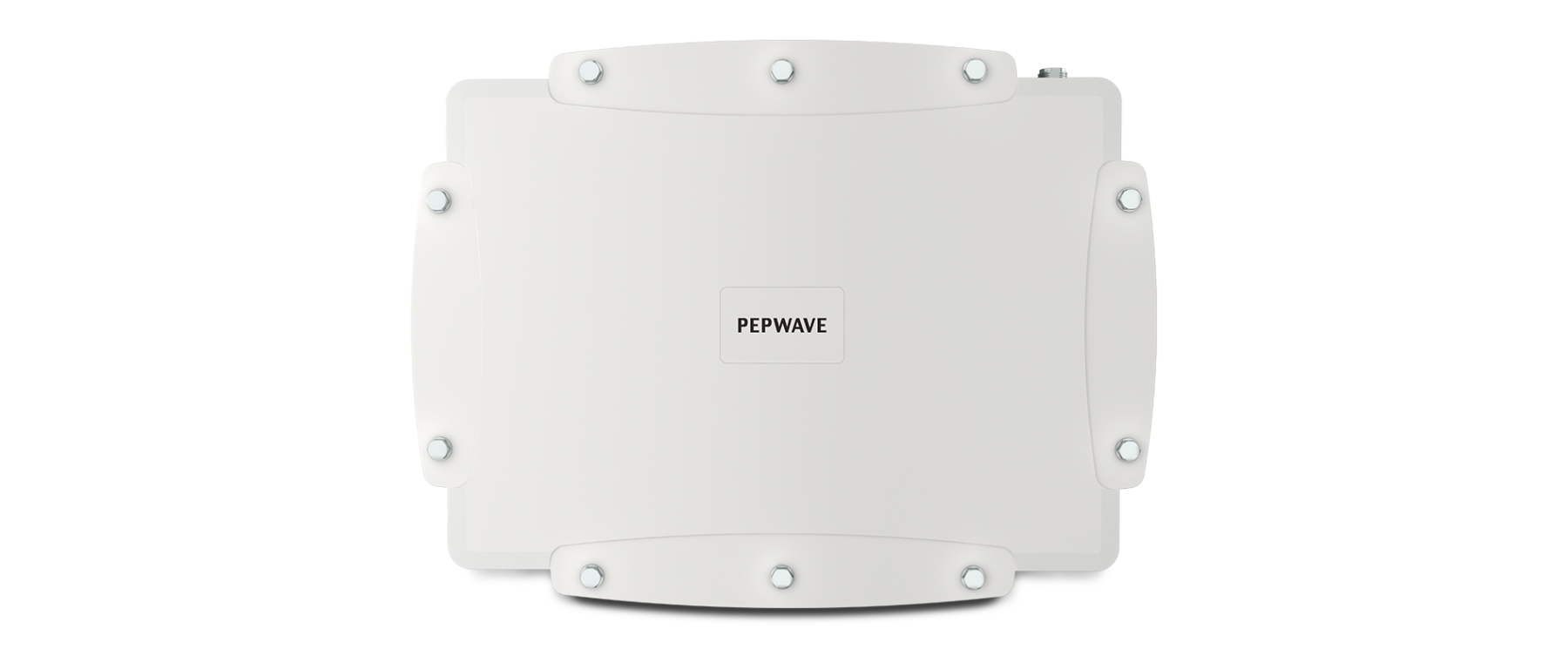

Pepwave MAX HD4 IP67 - Industrial Wireless Router - Pulse Supply

Quad 4G/3G LTE Mobile Outdoor Router.

The HD2 IP67 outdoor router offers dual embedded cellular modems and PoE+ support, all encased in a shock and vibration certified, waterproof enclosure that’s more than a match for almost any environment.

Super-Duty IP67 Enclosure. The HD4 IP67 outdoor router has a waterproof IP67 metal enclosure that stands up to dust, vibration, and inclement weather.

Quad Cellular and Redundant SIM slots for Multiple Carrier. The HD4 IP67 includes four built-in outdoor 4G LTE/3G modems and four Redundant SIM slots. It allows you to use the same or different cellular providers for bandwidth bonding or eliminating blind spots.



Key Features



  • The MAX HD4 is a Quad 4G LTE/3G Mobile Router
  • 4 Embedded LTE Modems with Redundant SIM Slot
  • 400Mbps Router Throughput
  • Up to 500 users
  • VPN Capability up to 20 users
  • Optional PoE+
  • GPS
  • Outdoor Pole or Wall Mounting
  • Low-Profile Form Factor - At 2.6 inches high



MAX HD4 IP67 Details

  • The rugged and mobile MAX HD4 IP67 is a perfect solution for outdoor events, video, and monitoring equipment
  • In addition to a rugged outdoor enclosure, HD2 IP67 has certifications on Shock and vibration resistance (EN 61373:2010) RF Port Lightning Immunity(ITU-T K.20 (+/- 1.5 kV)) Railway Applications (EN 50155) Electromagnetic Compatibility (EN 61000)
  • Fleet Tracking and Management. With built-in GPS fleet tracking and InControl cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device.

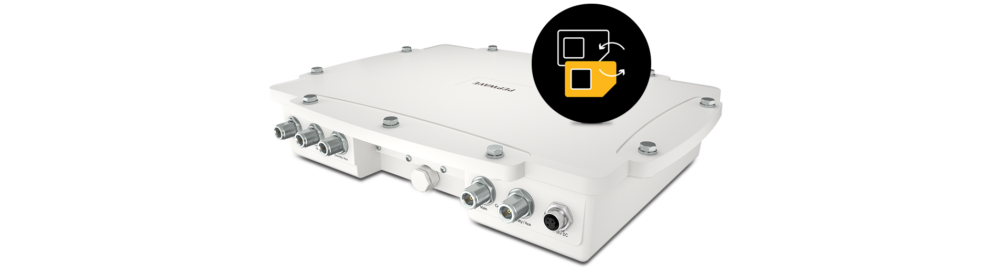

Pepwave MAX HD4 IP67 rear view -  Industrial Wireless Router - Pulse Supply



MAX HD4 IP67 Applications

  • Construction
  • Utility
  • Railway
  • Marine
  • Video Surveillance
  • Any outdoor Cellular to Ethernet Routing application





Product Specifications



See  MAX HD4 IP67 Data Sheet



Have more questions about Industrial Wireless Router solutions? Need to Purchase Peplink or Pepwave Industrial Wireless Router Products? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
