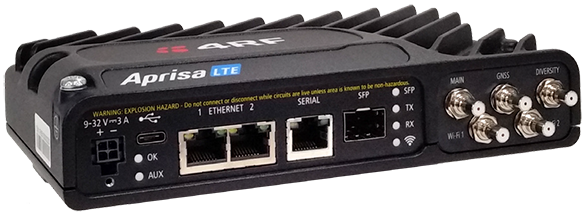

Aprisa LTE
Industrial Wireless Router
APTCRB, CBRS End Device, AT&T, Verizon Wireless, UScellular with others pending
The Aprisa LTE is a smart, secure, and hardened LTE router
The Aprisa LTE is designed for both mission and business-critical applications that need a gateway to modern high-speed public and private LTE networks, including CBRS.
Designed for infrastructure monitoring and control for the electricity, water, oil, and gas industries the Aprisa LTE has the rugged protection you need including IEEE 1613 and hazardous location certification. Take Aprisa LTE on the road, or off-road, for tough public safety and secure mobile networking.
Key Features
- LTE wireless data services: the Aprisa LTE provides broadband enhanced LTE data rates and latency.
- Secure: with its defense-in-depth approach, including AES encryption, authentication, L2 / L3 filtering, GRE VPN, IPSec, and OpenVPN® support, the Aprisa LTE protects against vulnerabilities and malicious attacks.
- Interfaces: the Aprisa LTE supports serial and Ethernet with SFP support for additional electrical and optical connections in a single, compact form factor.
- Adaptable: the Aprisa LTE integrates into a wide range of industrial and utility applications with redundant carrier connections for public and private networks. New Aprisa Power Control (APC) feature delivers ultra-low power sleep mode for solar applications.
- Advanced mobility and Wi-Fi: supports advanced remote visibility in-vehicle networks with GNSS location/navigation service and 2x2 MIMO Wi-Fi AP/client mode for workforce mobility communication.
- Advanced L2 / L3 capabilities: selectable L2 or L3 modes with VLAN, QoS, NAT, IPv4, and IPv6 transition support to maximize performance and prioritize mission-critical traffic while meeting tough security and IP network policy imperatives.
- Reliable and robust: the Aprisa LTE requires no manual component tuning and maintains its performance over a wide temperature range using full specification industrially rated components and shared Aprisa family heritage.
- Easily managed: an easy-to-use GUI supports local element management via HTTPS or via CLI with remote element management over the air via SNMP and NETCONF support to allow network-wide monitoring, control, and orchestration via a variety of supported third-party network management systems.
- Failover: single radio, dual SIM with switch over, and interface failover to provide alternate path routing on WAN or FAN failure.
Aprisa SRi Details
- Cat-6 300 Mbps and optional Cat-12 600 Mbps maximum with high-performance dual-core CPU
- Support for US Band 8, Band 14, and CBRS
- Dual SIM LTE for active / standby and roaming LTE connectivity
- Optional IEEE 802.11ac client and AP mode with 2x2 MIMO for workforce mobility
- SFP slot for optional optical fiber / additional electrical Ethernet port
- Multi-standard serial RS-232 / RS-422 / RS-485
- Global Navigation Satellite System (GNSS) GPS, GLONASS, BeiDou, Galileo, and optional QZSS real-time location tracking
- Full routing and firewall between all ports including Wi-Fi
- AT&T Dynamic Traffic Management (DTM)
- Verizon Private Network Traffic Management (PNTM)
- IPSEC / VPN / OpenVPN
- Protected key storage option
- MEMS accelerometer motion-sensing anti-tamper option
- SGS certified Class 1, Division 2 for operation in hazardous areas
- IEC 62368-1 safety standard
- IEEE 1613 and IEC 61850-3 utility substation hardening
- Ruggedized protection for operation in vehicles and other high temperature/vibration environments
- Industrial –30 to +70 °C operating temperature range
Aprisa SRi Applications
- Electricity grid: distribution automation, control, and protection
- Smart grid: DA, DFA, cap bank control
- Smart cities: traffic control, video surveillance
- Oil & gas: production metering, lift pump automation
- AMI / AMR: high-density data concentrator backhaul
- Renewables: DER, solar and wind farms, hydro automation
- Water and wastewater: flow, level, pump, and valve automation
- Public safety, utility, mining: fleet management, vehicle tracking, workforce mobility
Product Specifications
| Aprisa LTE short-form specification | |
|---|---|
| Topology | Smart, secure, industry-leading performance 3GPP LTE communications for critical infrastructure monitoring and control for the electricity, water, oil, and gas industries. Hardened LTE for both mission and business-critical applications. |
| LTE | LTE Cat-6 (300 / 50 Mbps) / Cat-12 (600 / 150 Mbps) SIM Dual Micro SIM |
| Antenna ports | Cellular Main and Cellular Diversity QMA 50 ohm female GNSS QMA 50 ohm female Wi-Fi Ant 1 (main), Ant 2 (diversity) QMA 50 ohm female |
| Wi-Fi | Frequency range 2.4 to 2.495 GHz, 5.15 to 5.825 GHz Channel 20 / 40 / 80 MHz Performance IEEE 802.11ac Wave 2 (2x2) MU-MIMO, up to 866.7 Mbps Security WPA / WPA2 Personal / Enterprise, WEP / TKIP, AES-CCMP, 802.1x Modes Access Point, Client and Access Point / Client |
| GNSS | Positioning and time GPS, GLONASS, Beidou, Galileo, and QZSS (Cat-12 option) Max Channels 30 (16 GPS, 14 GLONASS) simultaneous tracking |
| Data interfaces | Serial - single port RJ45 RS-232 / RS-422 / RS-485 Ethernet - two ports RJ45 10/100/1000Base-T SFP - single port Small Form-factor Pluggable supporting both optical and copper SFP modules Ethernet and SFP ports are configurable as L2 LAN or L3 WAN |
| Encryption | 3DES AES 128, 192, or 256 CBC/CTR/CCM8-CCM16/GCM8-GCM-16 |
| Standards | CELLULAR / LTE PTCRB and GCF-CC CBRS FCC Part 96 certified end user device (Cat-12 option) CARRIER AT&T and Verizon Wi-Fi FCC Part 15.407, 15.247 and FCC Part 2.1091 (MPE) EMC FCC CFR47 Part 15, EN 301 489-1 SAFETY Class 1 division 2, Groups ABCD for hazardous locations ENVIRONMENTAL Substation hardened to IEEE 1613 class 2 and IEC 61850-3 ETSI EN 300 019-2-4 VEHICLE designed to ISO 7637-2, ISO 16750-2 (12V Code D 24V Code E) SHOCK / VIBRATION designed to SAE J1455, EN 301 489 |
*Exact specifications vary according to the product variant and local certifications: please see the datasheet relevant to you for exact product specifications for your region.
Data Sheets
Data Sheet: Aprisa LTE (FCC)
Data Sheet: Aprisa LTE (Global)
