TX54

Industrial Wireless Router

4G Ruggedized Router  -  USA and Canada

Compact, ruggedized LTE router with Industrial feature set and Rugged, reliable, cost-effective connectivity for critical industrial applications.

The versatility and performance of the TX54 routers make them ideal for mission-critical applications requiring continuous connectivity, field longevity, and edge computing. The TX54 provides secure routing and gateway functionality across wired and wireless communication networks. Local private subnets are bridged across public networks to safeguard privacy and integrity.

The TX54 is available with dual Wi-Fi radios to segment passenger Wi-Fi from fare collection, data, video, and other applications, and offers models with both single and dual LTE-Advanced or LTE-Advanced Pro cellular modules.

Designed to meet the demands of first responders, theTX54 includes concurrent and independent dual cellular interfaces that prioritize critical communications. The industrial-grade design supports the most rugged conditions, including vibration and temperature changes. A Python development environment allows for edge computing and intelligence.

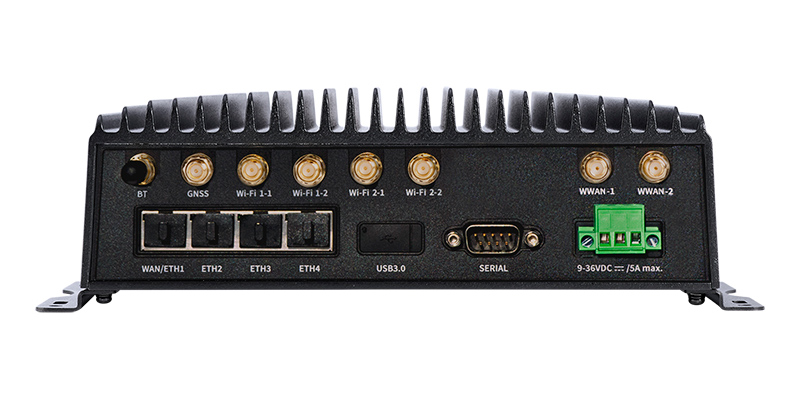

Four Gigabit Ethernet ports connect other IP-capable systems, each configurable as an isolated secure LAN, or all four can function as a Layer 2 switch. Digi TrustFence®, a suite of hardware and firmware features, ensures the integrity of the TX54 security functions. Chip-level encryption protects the onboard file system.

Key Features

• FirstNet Ready™ and global models are available in both single and dual cellular options
• Future-built with dual-core 880 MHz MIPS processor and PCIe 2.0 internal bus
• Capable of segmenting private and public data communication across dual 600 Mbps LTE-Advanced Cat 11 or LTE-Advanced Pro Cat 12 cellular modules
• High-speed 867 Mbps 802.11ac Wi-Fi for WAN or LAN service and optional dual Wi-Fi radios
• Cryptographic co-processor with secure key generation
• Digi Remote Manager® platform for easy setup, mass configuration, and management

TX54 Series Details

• Automated Network Monitoring: To keep tabs on dozens, hundreds, or thousands of active connected devices requires network monitoring software. Human eyes can't keep up. With Digi RM remote monitoring tools, you're in command. As your IoT device management platform, Digi RM watches your network for disruptions and intrusions, and lets you know when you need to take action. Set alerts for important conditions. Get reports on network performance. Check on any device, anywhere, anytime.
• Firmware Updates: Today's IoT devices are smarter, more feature-rich, and have more tasks to perform at the edge. And they are not static. You may need to update the firmware to enhance functionality, download custom scripts, keep your devices in compliance with corporate security policies, or deploy patches for threats to IoT security. Digi Remote Manager puts the network management tools in your hands to deploy firmware updates or send files to your devices in minutes, even if you have a network of many thousands of devices. Manage your dynamic network with a few clicks. Keep your devices secure.
• Configuration Management: Digi Remote Manager has what other IoT device management platforms don't: the ability to configure all of your devices at once, make individual configuration changes, and still manage those specialized configurations in groups. Create a group and individual configurations. Deploy rapidly and accurately. Let Digi RM monitor device security
• Detection and Troubleshooting: Digi RM is always on, even during your network manager’s off hours. As your network monitoring solution, Digi RM lets you know when issues arise, sending alerts and delivering reports so your team can rest easy. At any time, they can gain the insights needed on the health of the entire network or individual devices and remotely troubleshoot, test, and reboot devices as needed. Put network monitoring tools to work for you, so you can work smarter.

TX54 Series Applications

• Fleet
• Motor Vehicle
• Trucking
• Industrial
• Transportation
• Public Safety Networks
• FirstNet

Product Specifications

*Transfer rates are network operator independent

DATA SHEETS

Data Sheet:  TX54

Data Sheet:  Product Models Feature Comparison

Have more questions about Industrial Wireless Router solutions? Need to Purchase Digi Industrial Wireless Router Products? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
