IX10

Industrial Wireless Router

4G Ruggedized Router  -  USA and Canada



IX10 - Industrial Wireless Router - Pulse Supply

Compact, ruggedized LTE router with Industrial feature set and Rugged, reliable, cost-effective connectivity for critical industrial applications.

Digi IX10 is a full-featured cellular router built for trouble-free reliability over a long service life. Its flexible power and connectivity options make it a versatile and cost-effective choice for industrial, digital signage, ATMs, lottery terminals, kiosks, and other unattended retail applications that need to provide secure transactions.

Digi IX10 features an RJ-45 serial port supporting both RS-232 and RS-485, as well as built-in dual SIMs for redundant connection. It is capable of operating independently on public LTE networks, with features to assist in network control and management, such as VLAN support, load balancing between cellular and Ethernet WANs, dual APNs, and configurable APN search. Digi IX10 also offers low-touch and no-touch provisioning.

Gain critical insights into your deployed devices and manage your network with Digi Remote Manager® — the command center for your deployment. Digi Remote Manager (Digi RM) is a cloud-based solution that facilitates easy setup, mass configuration, maintenance, and support for hundreds or even thousands of remote Digi devices. Digi RM empowers you to evaluate, update and configure your Digi enterprise products while providing easy visibility into the health of your network.

In the event of an interruption to your primary network connection, Digi RM also provides secure terminal access for out-of-band management access to edge devices via Digi IX10 via serial port and command-line interface. In addition, Digi IX10 offers the convenience of a global SKU which simplifies inventory control for global distribution and deployment.

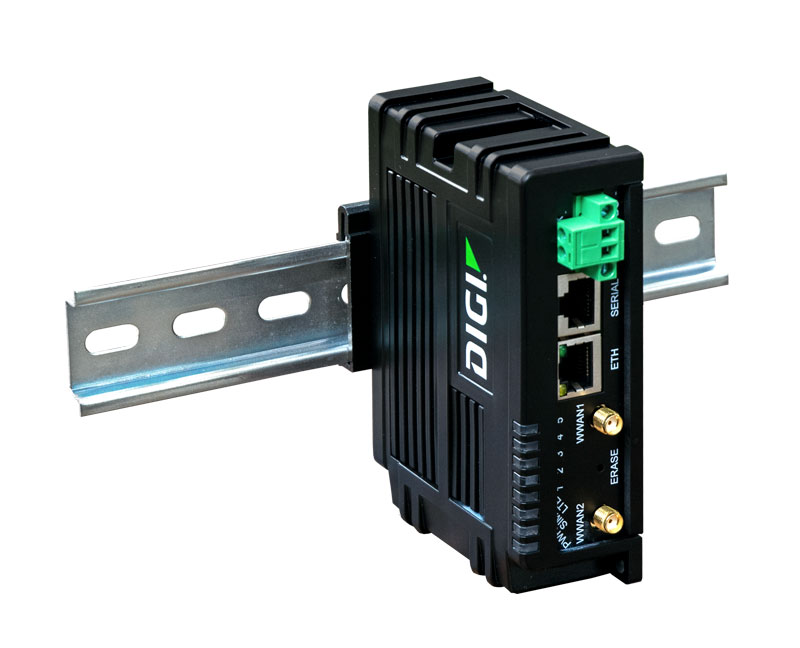

IX10 with DIN - Industrial Wireless Routers

Key Features



  • Compact and economical cellular routing platform with an industrial feature set
  • Redundant connectivity with dual SIMs and Digi SureLink®
  • Global bands and single part numbers to simplify global distribution, deployment, and management\
  • Built-in Digi TrustFence® for device security, device identity, and data privacy
  • Digi Remote Manager® platform for easy setup, mass configuration, and out-of-band management
  • Ethernet port and single RJ-45 serial port (RS-232/485)



IX10 Series Details

  • Automated Network Monitoring: To keep tabs on dozens, hundreds, or thousands of active connected devices requires network monitoring software. Human eyes can't keep up. With Digi RM remote monitoring tools, you're in command. As your IoT device management platform, Digi RM watches your network for disruptions and intrusions, and lets you know when you need to take action. Set alerts for important conditions. Get reports on network performance. Check on any device, anywhere, anytime.
  • Firmware Updates: Today's IoT devices are smarter, more feature-rich, and have more tasks to perform at the edge. And they are not static. You may need to update the firmware to enhance functionality, download custom scripts, keep your devices in compliance with corporate security policies, or deploy patches for threats to IoT security. Digi Remote Manager puts the network management tools in your hands to deploy firmware updates or send files to your devices in minutes, even if you have a network of many thousands of devices. Manage your dynamic network with a few clicks. Keep your devices secure.
  • Configuration Management: Digi Remote Manager has what other IoT device management platforms don't: the ability to configure all of your devices at once, make individual configuration changes, and still manage those specialized configurations in groups. Create a group and individual configurations. Deploy rapidly and accurately. Let Digi RM monitor device security
  • Detection and Troubleshooting: Digi RM is always on, even during your network manager’s off hours. As your network monitoring solution, Digi RM lets you know when issues arise, sending alerts and delivering reports so your team can rest easy. At any time, they can gain the insights needed on the health of the entire network or individual devices and remotely troubleshoot, test, and reboot devices as needed. Put network monitoring tools to work for you, so you can work smarter.



IX10 Series Applications

  • Industrial
  • Digital Signage
  • ATMs
  • Lottery Terminals
  • Kiosks
  • Unattended retail applications that need to provide secure transactions



Product Specifications



SPECIFICATIONS Digi IX10
CELLULAR
CERTIFICATIONS Visit https://www.digi.com/resources/certifications for latest certifications
LTE (G4) LTE Cat 4: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B38, B39, B40, B41
3G: B1, B2, B4, B5, B6, B8, B19
2G EDGE / GPRS: 850 / 900 / 1800 / 1900 MHz
CONNECTORS (2) 50 Ω SMA (center pin: female)
SIM SLOTS (2) Mini-SIM (2FF)
SIM SECURITY Behind SIM cover, secured with screw (#1 Phillips)
SOFTWARE AND MANAGEMENT
REMOTE MANAGEMENT Digi Remote Manager®; SNMP v2/v3 (user-installed/managed)
LOCAL MANAGEMENT WebUI (HTTP/HTTPS); CLI (Telnet, SSH)
MANAGEMENT / TROUBLESHOOTING TOOLS FTP client, SCP; protocol analyzer with PCAP for Wireshark; event logging with syslog and SMTP client; NTP/SNTP; Nagios, Intelliflow, iPerf, Dynamic DNS, ping, traceroute
MEMORY 256 MB RAM, 256 MB flash
ETHERNET
PORTS (1) RJ-45; 10/100 Mbps (auto-sensing)
SERIAL
PORTS (1) RJ-45 10-pin (10P10C); RS-232/485; software selectable
- RS-232 DTE (RXD, TXD, RTS, CTS, DTR, DCD, DSR, RI)
- RS-485 (TX/RX+; RX/TX-); half-duplex
PHYSICAL
DIMENSIONS (L x W x H) 118 mm x 88 mm x 35 mm (4.65 in x 3.46 in x 1.38 in)
WEIGHT 0.39 kg (0.86 lb)
STATUS LEDs Power, Internet, SIM 1, SIM 2, SIM fail, LTE, signal strength (5)
ENCLOSURE Glass-filled polyphenylene sulphide (PPS) / IP30
POWER REQUIREMENTS
POWER INPUT 9 - 30 VDC, 1.0 A maximum
POWER CONSUMPTION 2.5 W typical (idle); 6 W typical (peak Tx/Rx)
ENVIRONMENTAL
OPERATING TEMPERATURE -40° C to 70° C (-40° F to 158° F); device performance may be impacted above 50° C (122° F)
RELATIVE HUMIDITY 5% to 95% (non-condensing)
APPROVALS
CELLULAR Visit https://www.digi.com/resources/certifications for latest cellular certifications
SAFETY IEC62368-1, CB, EN62311
ENVIRONMENTAL ROHS3
EMISSIONS / IMMUNITY CE; RED; FCC Part 15, Subpart B; ICES-003; AU/NZS CISPR32
WARRANTY
PRODUCT WARRANTY 3-year*
*Standard 3-year warranty upgradeable to 5 years with purchase of a Digi Remote Manager Premier 5-year subscription applicable to the product purchased only at the time of product purchase and with product registration at that time in Digi Remote Manager.

ENTERPRISE SOFTWARE Description
PROTOCOL SUPPORT HTTPS, FTP client, SSL, TLS v1.2, SCP (client and server), SFTP, SMTP client for use by scripts and the command line, SNMP (v2/v3), SSH; remote management via Digi Remote Manager®; protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS; dynamic DNS client compatible with BIND9/No-IP/DynDNS; captive portal, Intelliflow; Nagios, DNS server, NTP server, multicast, mDNS, IPerf
SECURITY IP filtering, stateful firewall, custom firewall rules (iptables), address and port translation, TLS 1.2 and above, OpenVPN client and server, VPN tunnels; Authentication: RADIUS, TACACS+; certificates; MAC address filtering; VLAN support
VPN IPSec with IKEv1, IKEv2, NAT Traversal; OpenVPN client and server; GRE VPN tunnels; Cryptology: SHA-1/256/384/512, MD5, RSA; Encryption: 3DES and AES up to 256-bit (CBC mode for IPsec); Diffie Hellman: DH groups 1-32 (CURVE448)
ROUTING/FAILOVER IP pass-through; NAT, NAPT with IP port forwarding; GRE; multicast routing; Routing protocols: RIP (v1, v2) OSPF, BGP; IP failover: VRRP; automatic failover, Digi SureLink®
OTHER PROTOCOLS DHCP; dynamic DNS client compatible with No-IP/DynDNS





DATA SHEETS


Data Sheet:  IX10 Rail

Data Sheet:  Product Models Feature Comparison






Have more questions about Industrial Wireless Router solutions? Need to Purchase Digi Industrial Wireless Router Products? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
