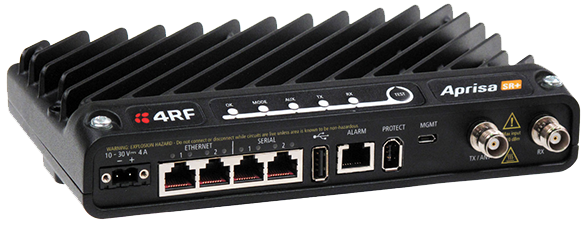

Aprisa SR+
Industrial Wireless Router
FCC, IC, UHF, VHF Bands - Point to Multi-Point
Smart, Secure, Point-To-Multipoint Radio
Smart, secure, industry-leading speed licensed point-to-multipoint SCADA communications for industrial monitoring and control for the electricity, water, oil, and gas industries – now with 256 QAM.
The Aprisa SR and Aprisa SR+ are distance-engineered and optimized for SCADA and telemetry applications, providing reliable, robust performance however demanding the conditions: what we call ‘real world radio’. RF performance is unbeatable, with attention paid to every element of the design: transmitter, receiver, modulation, and efficiency. The receiver maintains exceptional low noise operation via excellent sensitivity for greater distance and high selectivity and intermodulation suppression for superior protection from interference. This performance is complemented by fast switching circuitry and high transmit power ensuring long-distance operation with exceptional system reliability and availability.
Key Features
- High capacity: to meet the growing number of data-intensive applications in the SCADA environment, the Aprisa SR+ provides data rates of up to 576 Secure: with its defense-in-depth approach, including AES encryption, authentication, address filtering, and user access control including RADIUS, the Aprisa SR+ protects against vulnerabilities and malicious attacks.
- Future-proof: the Aprisa SR+ supports dual serial and dual Ethernet ports in a single, compact form factor, designed to cryptographically secure legacy serial, protect existing device investment, and enable new applications. Old and new application protocols can be run side by side.
- Advanced L2 / L3 capabilities: selectable L2 bridge, L3 router, or advanced gateway router combination L2/L3 modes with VLAN, QoS, NAT, and filtering attributes to maximize capacity in constrained bandwidth and prioritize mission-critical traffic while meeting tough security and IP network policy imperatives.
- Adaptable: the Aprisa SR+ integrates into a range of network topologies, with each unit configurable as a master station, repeater, or remote station; connect multiple RTUs / PLCs to a single radio.
- Flexible interfaces: the data interfaces can be configured for serial or Ethernet operation; a range of options are supported, including two serial and two Ethernet, one serial and three Ethernet, or four Ethernet ports. Support for NMEA GPS receiver option.
- Link efficiency: Adaptive Coding and Modulation (ACM) and forward error correction maintain the integrity of the wireless connection while an effective channel access scheme and IP routing ensure efficient transfer of data across the Aprisa SR+ network. Advanced payload and Ethernet / IP / TCP / UDP header compression.
- Reliable and robust: the Aprisa SR+ requires no manual component tuning and maintains its performance over a wide temperature range using full specification industrially rated components and shared Aprisa family heritage.
- Easily managed: an easy to use GUI supports local element management via HTTPS and remote element management over the air and SNMP support allows network-wide monitoring and control via a variety of supported third-party network management systems.
*Use of the 100 kHz channel mode is supported in the 700 and 900 MHz bands. Use of 256 QAM has not yet been authorized as required by the rules of the Federal Communications Commission. This device mode is not, and may not be, offered for sale or lease, or sold or leased until authorization is obtained.
Aprisa SR+ Details
- F135–175, 215–240, 400–520, 757–758 and 787–788, 896–902, and 928–960 MHz
- RS-232 and IEEE 802.3 with multiple port options
- Software selectable 12.5 kHz, 15 kHz, 25 kHz, 30 kHz, 50 kHz, and 100 kHz channel sizes (frequency band dependent)
- Full and half-duplex operation, single or dual frequency
- Data rates of up to 576 kbit/s half-duplex / 1,152 kbit/s full duplex
- 256, 192, or 128 bit AES encryption
- AES-CCM to NIST SP 800-38C
- Adaptive Coding and Modulation: QPSK to 256 QAM
- Advanced forward error correction
- Ethernet and IP / TCP / UDP header compression (ROHC) and payload compression
- Software selectable dual/single antenna port operation
- Transparent to all common SCADA protocols
- Dedicated alarm port and optional GPS for radio coordinates
- Protected station and remote station options
- Power optimized option
- Layer 2 bridge (VLAN aware), layer 3 Router, and advanced gateway router combination L2/L3 modes
- VLAN tagging and Q-in-Q
- Flexible QoS priority enforcement – by port or traffic type, VLAN, PCP/DSCP, rule including SMAC/DMAC, IP address and IP protocol, and EtherType
- L2 / L3 / L4 filtering
- MEMS accelerometer motion-sensing anti-tamper option
- IEEE 1613 and IEC 61850-3 substation protection
- 30 kV ESD antenna protection
- Class 1, Division 2 for hazardous protection
- –40 to +70 °C operational temperature without fans
- 210 mm (W) x 130 mm (D) x 41.5 mm (H)
- FCC and IC standards compliant
Aprisa SR Applications
- Electricity grid: distribution automation control and protection in MV / HV distribution / transmission
- Smart grid, DA, DFA, DER, cap bank control
- Oil & Gas: production metering, lift pump automation
- AMI / AMR: high-density data concentrator backhaul
- Renewables: wind farm, tidal, hydro automation
- Water and wastewater: flow, level, pressure modulation automation, and pump status
Product Specifications
| Aprisa SR+ short-form specification | |
|---|---|
| Topology | Point-to-Point (PTP) or Point-to-Multipoint (PMP) operation |
| Operating mode | Base Station, Remote Station, Repeater Station or Base- repeater Station |
| Licensed frequency bands | VHF 135 135-175 MHz VHF 220 215-240 MHz UHF 320 320-400 MHz UHF 400 400-470 MHz UHF 450 450-520 MHz UHF 700 757-806 MHz UHF 896 896-902 MHz UHF 928 928-960 MHz |
| Channel sizes | 12.5 kHz, 20 kHz, 25 kHz, 50 kHz and 100 kHz (software selectable) |
| Gross data rates (frequency band dependent) |
QPSK Up to 20 kbit/s in 12.5 kHz, 40 kbit/s in 25 kHz, 80 kbit/s in 50 kHz, 144 kbit/s in 100 kHz 16 QAM Up to 40 kbit/s in 12.5 kHz, 80 kbit/s in 25 kHz, 160 kbit/s in 50 kHz, 288 kbit/s in 100 kHz 64 QAM Up to 60 kbit/s in 12.5 kHz, 120 kbit/s in 25 kHz, 240 kbit/s in 50 kHz, 432 kbit/s in 100 kHz 256 QAM Up to 80 kbit/s in 12.5 kHz, 160 kbit/s in 25 kHz, 320 kbit/s in 50 kHz, 576 kbit/s in 100 kHz |
| Modulation / FEC | Adaptive Coding and Modulation (ACM) QPSK to 256 QAM with advanced FEC |
| RF operation | Half duplex or full duplex RF operation |
| Antenna ports | Software selectable dual / single antenna port options |
| Data interface ports | Ethernet - 2, 3 or 4 port RJ45 10/100Base-T switch Serial - 2, 1 or 0 port RJ45 RS-232 (Additional RS-232 port via USB converter) |
| Transmit average output power | 0.01 – 10.0 W (modulation dependent) |
| Compression | Ethernet header and IP / TCP / UDP ROHC header compression Ethernet and serial payload compression to increase the narrow band radio capacity |
| Protocols | Ethernet - IEEE 802.3 IEEE 802.3, 802.1d/q/p with L2 Bridge or L3 Router modes Serial - Legacy RS-232 transport |
| VLAN support | IEEE 802.1Q VLAN support with single and double VLAN tagged |
| Encryption and authentication | Data encryption and authentication using 128,192 and 256 bit AES and CCM security standards |
| Protection | Fully monitored, hot standby, hot swappable |
| International standards | RF, EMC, safety, and environmental EN 60950 Class 1 Division 2 for hazardous locations ETS 300 019 Class 3.4, Ingress Protection IP51 Substation hardened to IEEE 1613 class 2 and IEC 61850-3 |
| Compliance | ETSI, FCC and IC |
*Exact specifications vary according to the product variant and local certifications: please see the datasheet relevant to you for exact product specifications for your region.
DATA SHEETS
Data Sheet: Aprisa SR+ (FCC)
Data Sheet: Aprisa SR+ (Global)
Have more questions about Industrial Wireless Router solutions? Need to Purchase 4RF Aprisa Products? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
