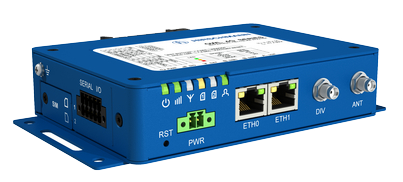

OWL 4G + WLAN

Industrial Wireless Router

4G Ethernet Gateway  -  USA and Canada



OWL 4G + WLAN - Industrial Wireless Router - Pulse Supply

The OWL 4G + WLAN is Cellular Router and Gateway. Optimized for distributed 4G applications with edge pre-computing



The OWL 4G family of routers and gateways enable secure, high-speed wireless connectivity and remote access for industrial applications in an increasingly connected world.

Edge computing configuration reduces infrastructure costs by providing an effective way to monitor and troubleshoot machines – without going on-site or creating connections where wired networks are not feasible.

The expanded OWL 4G family covers all global frequencies. With variants for Europe, North America, and Australia, organizations will be equipped to break into new markets with the ability to establish a secure connection anywhere in the world.



Key Features



  • High-speed wireless connectivity through 4G, LTE, HSPA+, UMTS, EDGE, or GPRS technology
  • Two Ethernet 10/100 Mbit/s ports, RS232 and RS485 interfaces, and built-in digital I/O connectivity
  • Robust metal cover with DIN and wall mount options
  • Operating temperature range of -40°C to +70°C
  • Embedded GPS and optional dead-reckoning functionalities for innovative navigation and location tracking
  • Fast VPN tunnel creation to ensure safe communications
  • Optional built-in Wi-Fi module compatible with IEEE 802.11 a/b/g/n/ac standards
  • Configurable web interface with customizable functionalities



OWL 4G + WLAN Details

  • Two-in-one solution offering both routing and security capabilities
  • Hardened for substations
  • EN 301 511, EN 301 908-1/-2/-13, E8, EN 60 950 and CE compliant
  • Operating environment of -40 °C to +70 °C
  • Advanced routing and networking functions
  • Dual SIM cards use two different network operations in combination with the automatic switchover function
  • Rich set of interfaces (RS232, USB interface, Digital I/Os, SD card slot and an integrated GPS module)
  • Open LINUX platform for scripting and extensive device configuration
  • Secure VPN Tunneling (OpenVPN, IPsec VPN) through X.509 authentication
  • Supports functions: DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, control by SMS



OWL LTE 4G + WLAN Applications

  • Cellular Remote Connectivity for Machine Builders, Discrete Manufacturing, Utilities, and Automotive
  • Custom logic functions written in languages like C, C++, Lua, Python, NodeJS, or Node-Red for edge compute function on the device
  • Reliable communications with geographically dispersed sites
  • Suitable for oil and gas plants, water and wastewater stations, and discrete manufacturing facilities
  • ProSoft CONNECT with IT-secure features such as single sign-on, one-time-use passwords, 256-Bit AES encryption, virtual Lockout-Tagout (vLOTO™)
  • Cloud support
  • Whitelisting for limiting remote asset access



Product Specifications





Product description


Type

OWL-L02.01-W02.01-F02-U01-A02-VXX.X.XX

Name

OWL 4G North America + WLAN

Description

Industry 4.0 and Industrial IoT Cellular Router and Gateway. Optimized for 4G distributed applications with edge pre-computing. VPN and open extendable Linux. Integrated WLAN 802.11ac.

Availability

Available

Port type and quantity

2x Ethernet, 2x Antenna, 1x GPS, 2x SIM, 1x Power, 2x I/O, 2x Serial, 2x WLAN

Serial

On 10-pin panel socket (connector included): RS485, RS232, Serial2TCP, Serial2UDP

Radio protocol

IEEE 802.11ac Wave 2 (2x2 MIMO), 802.11d, 802.11e, 802.11h, 802.11i, 802.11r

Country certification

USA, Canada

Processor

ARMv7

Hard disk space

Flash memory (512MB User data storage, 830MB User module storage)

RAM

512MB


More Interfaces


SIM Cards

2x 2FF (3V, 1.8V), only one active at a time, can be configured independently, automatic switch-on connection failure

Ethernet

2x Ethernet: 10/100 Mbit/s (RJ45)

Power Supply

Via 2-pin terminal block 3.5mm (included)

Signaling contact

On 10-pin panel socket (connector included): Digital Input, Digital Output


Radio technology


Antenna connector

3 x SMA Female (Cellular, Diversity, GPS), 2x RP-SMA Female (WLAN)

Frequency band

WCDMA: 850(Band 5) / 1700(Band 4) / 1900(Band 2) MHz, LTE (4G): 600(Band 71) / 700(Bands 12,13,14) / 850(Band 5) / 1700(Band 4,66) / 1900(Band 2) MHz

Transmission rate

LTE Category 4: 150Mbps Download, 50 Mbps Upload

Additional radio features

GNSS (GPS, GLONASS)


Power requirements


Current consumption

Idle 2.5 W, Average 4 W, Maximum 11 W

Operating Voltage

9 V DC to 36 V DC

Redundancy functions

Dual VRRPv2 (with ping probes), Dual VRRPv3 (with ping probes), multiple routed interfaces (ping monitoring, failover and load balancing), PPPoE bridge mode


Diagnostics features


Monitoring

Syslog (UDP), SNMPv1/2c/3


Security features


Authentication

User Management (local, RADIUS, TACACS+, mixed)

Stateful inspection firewall

Static Firewall IPv4/IPv6 with Incoming and Forwarding Ruleset, DoS protection


Service


Other services

DHCP Server (IPv4/IPv6, dynamic and static leases, IPv6 Prefix Delegation, DNS proxy) , DynDNS client , PPPoE , FTP server , E-Mail via SMTP , SMS (notifications and commands) , Telnet server


Software


Operating system

Custom embedded Linux with Busybox Shell

VPN

OpenVPN, IPSec, GRE, L2TP, PPTP

Switching

VLAN (via Scripting), tunneled VLANs (via Scripting) , IGMP

Management

HTML5, SSH, SNMPv1/2c/3, Automatic configuration and firmware fetch from a web- or FTP server, backup and restore with drag & drop

Diagnostics

One-click support report package, System log, Linux kernel log, reboot log, signal strength history (60 days), SSH Linux shell, Signal strength LED indicators

Configuration

Simple to edit text file configuration, HTTP, HTTPS, SMS, SSH, Telnet, 4 Configuration Profiles, automatic via web/ftp, SNMPv1/2c/3

Security

HTTPS, SSH, Authentication with RADIUS or TACACS+, activate cellular interface with SMS, Ethernet 802.1X (EAP-PEAP/MsCHAPv2 or EAP-TLS)

Time synchronization

SNTP Client, SNTP Server, Battery for RTC (CR1225), GPS

Routing

Static unicast routing, Multinetting, IP masquerading, Port forwarding, Multiple routes with priority and load sharing, 1:1 NAT

Dynamic routing

Dual VRRPv2 (with ping probes), Dual VRRPv3 (with ping probes), multiple routed interfaces (ping monitoring, failover and load balancing)


Ambient conditions


MTBF (MIL-HDBK-217F-2, parts count)

55.2 Years

Operating temperature

-40-+65 °C

Storage/transport temperature

-40-+85 °C

Relative humidity (non-condensing)

0-95 %

Dimensions (WxHxD)

145x32x105 mm

Weight

520 g

Housing

Metal

Mounting

DIN Rail and Wall mounting

Protection class

IP30


Approvals


Safety of industrial control equipment

UL/EN/AS/NZS 62368-1:2014 (formerly EN 60950-1)

Transportation

E8 (vehicles) , EN 45545-1 (fire) , EN 45545-2 HL1/HL2/HL3

Radio

PTCRB, AT&T, Verizon (pending), FCC CFR-47:2017 Part 15 Subpart B Class A, FCC CFR-47:2016 Part 22 Subpart H, FCC CFR-47:2016 Part 24 Subpart E


WLAN Access Point


Access Point Functionality

Yes, open and secured (WEP, WPA-PSK, WPA-Enterprise, WPA2-PSK, WPA2-Enterprise, 802.1X - Radius with EAP-PEAP/MsCHAPv2 or EAP-TLS), AP and Client function can be used in parallel (only on the same channel, AP channel takes priority)

Number of SSIDs

1


WLAN Client


Client / STA Functionality

Yes, open and secured (WEP, WPA-PSK, WPA-Enterprise, WPA2-PSK, WPA2-Enterprise, 802.1X - Radius with EAP-PEAP/MsCHAPv2 or EAP-TLS), AP and Client function can be used in parallel (only on the same channel, AP channel takes priority)


Scope of delivery and accessories


Modules and components

User modules pre-installed: GPS, User modules as a separate download: Lua, Python, NodeRED

Accessories

942042105 Indoor LTE Antenna, 942042108 Indoor GPS antenna, 942117001 50Ohm terminators for cellular antenna, 943981015 2x2 WLAN Through-hole antenna, 943662015 Rail Power Supply

Scope of delivery

The device, DIN rail clip, wall mount wings, 2-pin power connector, 10-pin connector for I/O and RS232/RS485


Further Instructions


Update and Revision

Revision Number: 0.59 Revision Date: 06-29-2021





DATA SHEETS


Data Sheet:  OWL 4G + WLAN
