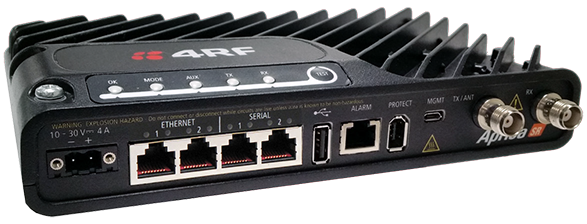

Aprisa SR (New)
Industrial Wireless Router
FCC and IC Bands - Point to Multi-Point
smart, secure, point-to-multipoint SCADA communications for oil, gas, and utility monitoring and control
The Aprisa SR and Aprisa SR+ are distance-engineered and optimized for SCADA and telemetry applications, providing reliable, robust performance however demanding the conditions: what we call ‘real world radio’. RF performance is unbeatable, with attention paid to every element of the design: transmitter, receiver, modulation, and efficiency. The receiver maintains exceptional low noise operation via excellent sensitivity for greater distance and high selectivity and intermodulation suppression for superior protection from interference. This performance is complemented by fast switching circuitry and high transmit power ensuring long-distance operation with exceptional system reliability and availability.
Key Features
- Secure: with its defense-in-depth approach, including AES encryption, authentication, address filtering, and user access control including RADIUS, the Aprisa SR protects against vulnerabilities and malicious attacks.
- Future-proof: the Aprisa SR supports dual serial and dual Ethernet ports in a single, compact form factor, designed to cryptographically secure legacy serial, protect existing device investment, and enable new applications. Old and new application protocols can be run side by side.
- Advanced L2 / L3 capabilities: selectable L2 bridge, L3 router, or advanced gateway router combination L2 / L3 modes with VLAN, QoS, NAT, and filtering attributes to maximize capacity in constrained bandwidth and prioritize mission-critical traffic while meeting tough security and IP network policy imperatives.
- Flexible: the Aprisa SR integrates into a range of network topologies, with each unit configurable as a base station, repeater, or remote unit. Support for NMEA GPS receiver option.
- Link efficiency: forward error correction maintains the integrity of the wireless connection while an effective channel access scheme and IP routing ensure efficient transfer of data across the Aprisa SR network. Automatic Transmit Power Control maintains the minimum transmit power required for effective communications enhancing both frequency reuse and power savings. Advanced payload and Ethernet /IP / TCP / UDP header compression.
- Reliable and robust: the Aprisa SR requires no manual component tuning and maintains its performance over a wide temperature range using full specification industrially rated components and shared Aprisa family heritage.
- Easily managed: an easy-to-use GUI supports local element management via HTTPS and remote element management over the air and SNMP support allows network-wide monitoring and control via a variety of supported third-party network management systems.
Aprisa SR Details
- Frequency bands of 135 – 175, 215 – 240, 400 – 520, 896 – 902, and 928 – 960 MHz
- RS-232 and IEEE 802.3 protocols
- Software selectable 12.5 kHz, 15 kHz, 25 kHz, 30 kHz, 50 kHz, and 100 kHz (note 2) channel sizes (frequency band dependent)
- Data rates of up to 144 kbit/s
- QPSK modulation with adaptive coding
- Selectable error correction of min, max, or no FEC
- AES-CCM to NIST SP 800-38C
- Ethernet and IP / TCP / UDP header compression (ROHC) and payload compression
- Software selectable dual/single antenna port operation
- Transparent to all common SCADA protocols
- Dedicated alarm port and optional GPS for radio coordinates
- Power optimized option
- Layer 2 bridge (VLAN aware), layer 3 Router, and advanced gateway router combination L2/L3 modes
- VLAN tagging and Q-in-Q
- Flexible QoS priority enforcement – by port or traffic type, VLAN, PCP/DSCP, rule including SMAC/DMAC, IP address and IP protocol, and EtherType
- L2 / L3 / L4 filtering
- MEMS accelerometer motion-sensing anti-tamper option
- Fully compatible with Aprisa SR+ in ‘SR mode’
- Substation hardened to IEEE 1613 class 2 and IEC 61850-3
- 30 kV ESD antenna protection
- Class 1, Division 2 for hazardous protection
- –40 to +158 °F operational temperature
- 8.27” (W) x 5.12” (D) x 1.63” (H)
- FCC and IC standards compliant
Aprisa SR Applications
- Offshore rigs and onshore pump jacks
- Transmission pipelines
- Electricity generation plants and turbines
- Power storage and distribution
- Water and waste processing plants
Product Specifications
| Aprisa SR short-form specification | |
|---|---|
| Topology | Point-to-Multipoint (PMP) operation |
| Operating mode | Base Station, Remote Station, Repeater Station or Base- repeater Station |
| Licensed frequency bands | VHF 135 135-175 MHz VHF 220 215-240 MHz UHF 320 320-400 MHz UHF 400 400-470 MHz UHF 450 450-520 MHz UHF 896 896-902 MHz UHF 928 928-960 MHz |
| Channel sizes | 12.5 kHz, 25 kHz, and 50 kHz (software selectable) |
| Gross data rates | QPSK ETSI 20 kbit/s in 12.5 kHz, 40 kbit/s in 25 kHz, 80 kbit/s in 50 kHz QPSK FCC / IC 20 kbit/s in 12.5 kHz, 32 kbit/s in 25 kHz, 72 kbit/s in 50 kHz |
| Modulation / FEC | QPSK with advanced FEC |
| RF operation | Half-duplex RF operation |
| Antenna ports | Dual / single antenna port product options |
| Data interface ports | Ethernet - 2 ports RJ45 10/100Base-T switch Serial - 2 ports RJ45 RS-232 (Additional RS-232 port via USB converter) |
| Transmit average output power | 0.01 – 5.0 W |
| Compression | Ethernet header and IP/TCP/UDP ROHC header compression Ethernet and serial payload compression to increase the narrowband radio capacity |
| Protocols | Ethernet - IEEE 802.3 IEEE 802.3, 802.1d/q/p with L2 Bridge or L3 Router modes Serial - Legacy RS-232 transport |
| VLAN support | IEEE 802.1Q VLAN support with single and double VLAN tagged |
| Encryption and authentication | Data encryption and authentication using 128,192 and 256 bit AES and CCM security standards |
| Protection | Fully monitored, hot standby, hot-swappable |
| International standards | RF, EMC, safety, and environmental EN 60950 Class 1 Division 2 for hazardous locations ETS 300 019 Class 3.4, Ingress Protection IP51 Substation hardened to IEEE 1613 class 2 and IEC 61850-3 |
| Compliance | ETSI, FCC, and IC |
*Exact specifications vary according to the product variant and local certifications: please see the datasheet relevant to you for exact product specifications for your region.
DATA SHEETS
Data Sheet: Aprisa SR (FCC & IC)
Data Sheet: Aprisa SR (Global)
