MAX HD2

Industrial Wireless Router

4G LTE Industrial Cellular Router  -  USA and Canada

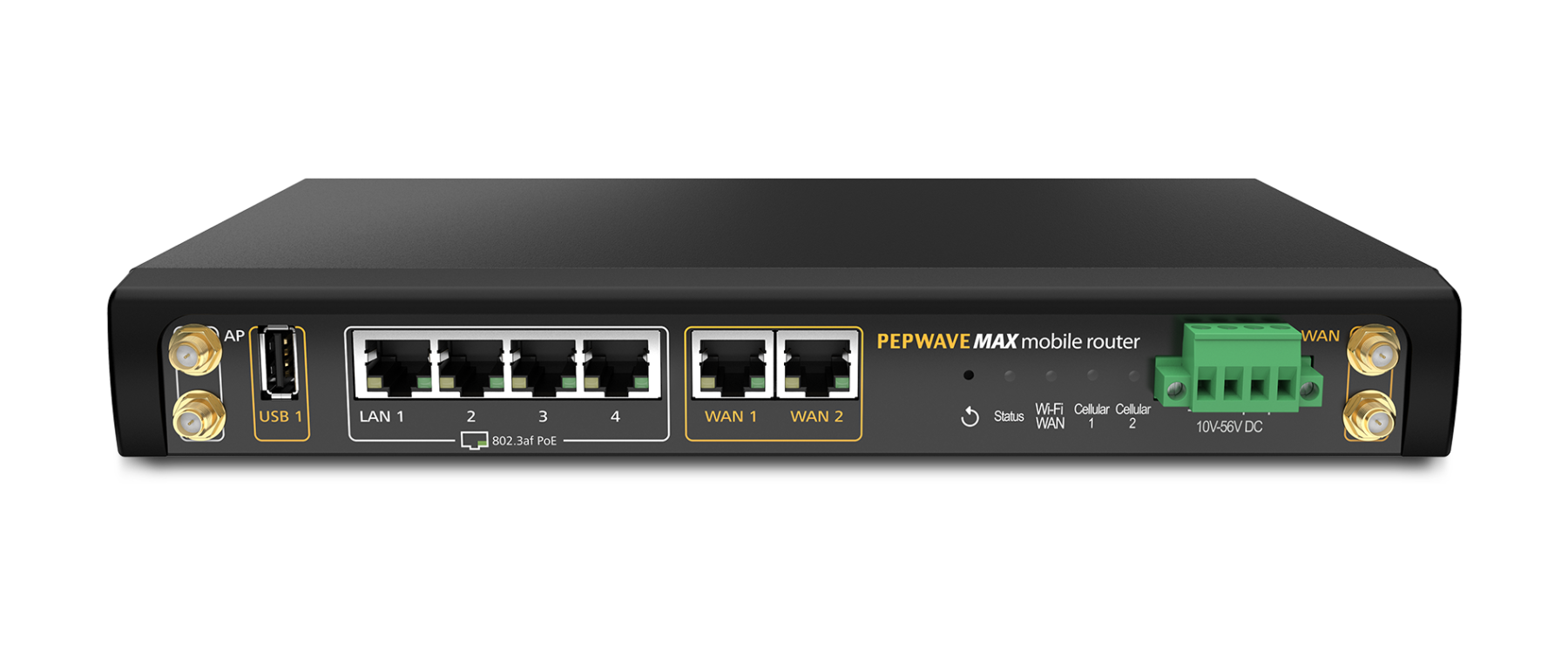

Pepwave MAX HD2 - Industrial Wireless Router - Pulse Supply

Dual 4G LTE Mobile Router.

The HD2 gives you blazing-fast connectivity on the road with dual embedded cellular modems, SpeedFusion bandwidth bonding, simultaneous dual-band 11ac Wi-Fi, and a built-in 4-port GE switch with PoE capability.

SpeedFusion Bandwidth Bonding and Seamless Failover SpeedFusion bandwidth bonding technology bonds all connected bandwidth into a single superfast stream, using the same or different cellular providers.

Dual Cellular and Redundant SIM Slots. Dual Cellular and Redundant SIM slots allow you to use the same or different cellular providers for bandwidth bonding, data overage protection, or eliminating blind spots.



Key Features



  • The MAX HD2 is a Dual 4G LTE Mobile Router
  • 2 Embedded LTE Modems with Redundant SIM Slots
  • 400Mbps Router Throughput
  • 802.11ac/a/b/g/n, 1166 Mbps 2x2 MIMO Wi-Fi WAN and/or AP Simultaneous Dual-Band
  • Up to 150 users
  • VPN Capability up to 20 users
  • 802.3at PoE+ (56V Pepwave Passive PoE Input is Needed for full 1x 802.3at PoE+ LAN Output#) (Requires ACW-622)
  • GPS
  • Low-Profile Form Factor - At 1.6 inches high



MAX HD2 Details

  • The rugged and mobile MAX HD2 is a perfect solution for transportation and fleet tracking applications
  • FirstNet Ready
  • In addition to a rugged metal enclosure, HD2 has certifications on Shock and vibration resistance (EN 61373:2010) RF Port Lightning Immunity(ITU-T K.20 (+/- 1.5 kV)) Railway Applications (EN 50155) Electromagnetic Compatibility (EN 61000)
  • Customize Captive Portal. Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS.
  • Fleet Tracking and Management. With built-in GPS fleet tracking and InControl cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device.

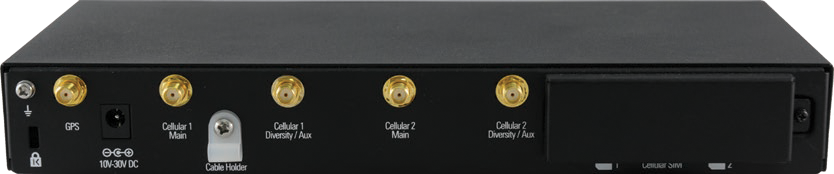

Pepwave MAX HD2 rear view -  Industrial Wireless Router - Pulse Supply



MAX HD2 Applications

  • Transportation
  • Bussing
  • Fleets
  • Police and Rescue
  • Railway
  • Marine
  • Events & Temporary Connectivity





Product Specifications



See  MAX HD2 Data Sheet
