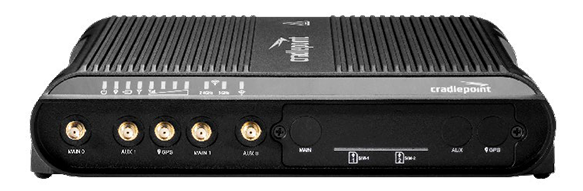

IBR1700 Series
Industrial Wireless Router
4G and 5G Ready Ruggedized Router - USA and Canada
Ruggedized Gigabit-Class LTE router for the most demanding in-vehicle networking applications
Cradlepoint endpoints provide industry-leading, Gigabit-Class LTE connectivity as well as Ethernet and Wi-Fi. These purpose-built endpoints are sold with a subscription to NetCloud Service for Mobile which provides streamlined configuration and continuous cloud, modem, and router software feature enhancements.
NetCloud Service is delivered in an all-in-one subscription included with the IBR1700. It is a complete cloud management platform providing specialized features for connecting, tracking, managing, and troubleshooting in-vehicle networks.
Key Features
- World’s first mobile router with Gigabit-speeds for LTE, Wi-Fi, and Ethernet delivering best-in-class enterprise-grade performance
- Field-upgradable with the second modem for continuous connectivity (with second wireless carrier)
- Precision GPS with dead-reckoning enables advanced location-based applications
- OBD-II support with accessory cable for vehicle health and diagnostics reporting\
- Extensibility with GPIOs, NetCloud SDK, and API for customizable solutions
- Unified edge security including multi-zone firewalls, IDS/IPS, and Internet security
- FIPS 140-2 Inside versions available
- Certified on multiple public safety networks
- 5G ready and able to act as a controller for external 5G adapters
IBR1700 Series Details
- Stateful Firewall Throughput: 940 Mbps
- WAN Connectivity: 4G Cat 11 or Cat 18, GbE
- LAN Connectivity: Wi-Fi 5, GbE
- Management: NetCloud
IBR1700 Series Applications
- Purpose-built to withstand extreme environments, the IBR1700 is an all-in-one mobile networking solution ideally suited for installations within a wide range of vehicles including metro transit buses, school buses, commercial fleets, as well as first responder vehicles such as police, fire, ambulance, and mobile command trailers.
Product Specifications
 |
Category |
Mobile |
 |
Cloud Management |
Yes |
 |
Wireless Connectivity |
Gigabit-Class LTE |
 |
5G Status |
5G Ready |
 |
Form Factor |
Ruggedized Metal |
 |
Ethernet Ports |
5 GbE (LAN/WAN switchable) |
 |
Console Ports |
1 |
 |
Serial Ports |
1 |
 |
Dual-Modem Support |
Yes |
 |
Network Operator Standards |
PTCRB (U.S.), GCF (global) |
 |
Network Operator Certifications |
AT&T, Verizon |
 |
Regions |
North America, Europe, Africa & Middle East, Asia-Pacific |
 |
Public Safety Networks |
ESN, FirstNet ReadyTM, Verizon Frontline |
 |
Throughput |
940 Mbps (Firewall) |
 |
VPN Tunnel Count |
10 |
 |
Wi-Fi |
Dual-band, tri-radio Wi-Fi; 802.11ac Wave 2 (Wi-Fi 5) |
 |
GNSS/GPS |
Active |
 |
PoE |
No |
 |
Operating Temperature |
-30 °C to 70 °C (-22 °F to 158 °F) |
 |
Rack Mountable |
Yes |
 |
Private Cellular Network |
Yes |
