IX15

Industrial Wireless Router

4G Ruggedized Router  -  USA and Canada



IX15 - Industrial Wireless Router - Pulse Supply

Compact, ruggedized LTE router with Industrial feature set and Rugged, reliable, cost-effective connectivity for critical industrial applications.

The versatile IX15 device functions as both gateway and router for customers seeking lower-cost, quicker-to-market alternatives to chip-down DIY designs for networking operations. The IX15 is an industrial-grade IoT gateway that connects XBee® modules to cloud applications over cellular or Ethernet, providing the easiest path to Internet connectivity for the XBee Ecosystem of hardware, software, services, and award-winning tools.

With certification for Class 1 Division 2 deployment and rugged enclosure, the IX15 is ideal for the harsh environments found in oil and gas, water/wastewater, solar, agriculture, and other industrial applications. For developers needing a highly secure, common platform to cut costs and time-to-market, the IX15 reduces risk and drives project efficiencies.

The IX15 IoT gateway includes a simple, open-source Python development environment that enables custom applications to perform edge computing locally while providing the most optimal, resilient connectivity between your XBee network and cloud-based applications.

In the event of an interruption to your primary network connection, Digi RM also provides secure terminal access for out-of-band management of edge devices via serial port and command-line interface.

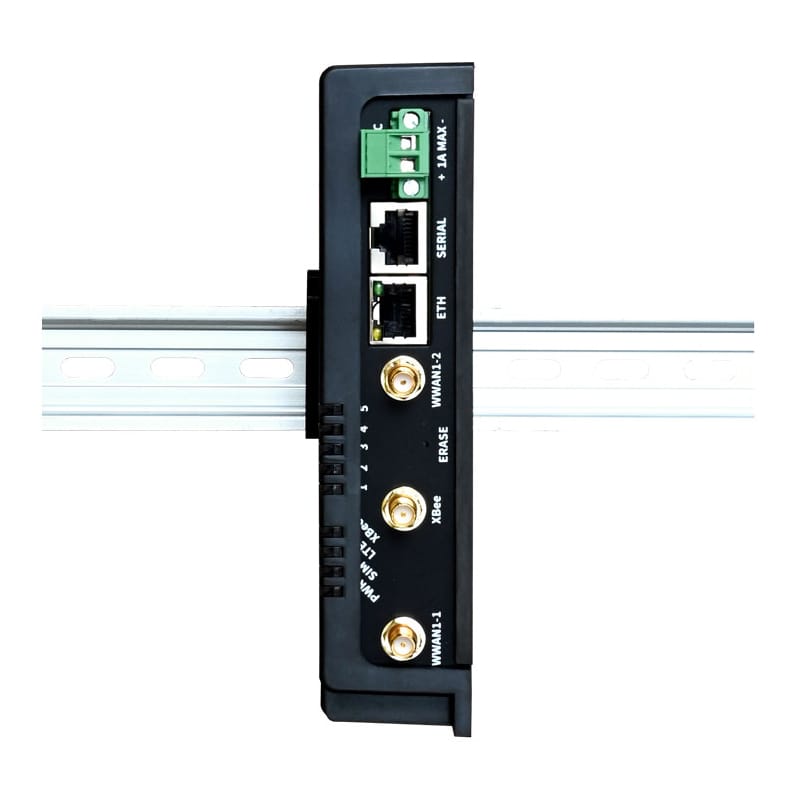

IX15 with DIN - Industrial Wireless Routers

Key Features



  • Digi XBee®, (Zigbee®, DigiMesh®, 802.15.4), Bluetooth® 5.0 and RS-232/485 for connection to local devices
  • Open source Python environment for custom application development
  • LTE Cat 4 cellular and 10/100 Ethernet WAN connectivity
  • Digi Remote Manager® platform for easy setup, mass configuration/firmware updates, remote device management, and out-of-band management
  • Full-featured industrial cellular routing platform
  • Redundant connectivity with dual SIMs and Digi SureLink®
  • Built-in Digi TrustFence® for device security, device identity and data privacy



IX15 Series Details

  • Automated Network Monitoring: To keep tabs on dozens, hundreds, or thousands of active connected devices requires network monitoring software. Human eyes can't keep up. With Digi RM remote monitoring tools, you're in command. As your IoT device management platform, Digi RM watches your network for disruptions and intrusions, and lets you know when you need to take action. Set alerts for important conditions. Get reports on network performance. Check on any device, anywhere, anytime.
  • Firmware Updates: Today's IoT devices are smarter, more feature-rich, and have more tasks to perform at the edge. And they are not static. You may need to update the firmware to enhance functionality, download custom scripts, keep your devices in compliance with corporate security policies, or deploy patches for threats to IoT security. Digi Remote Manager puts the network management tools in your hands to deploy firmware updates or send files to your devices in minutes, even if you have a network of many thousands of devices. Manage your dynamic network with a few clicks. Keep your devices secure.
  • Configuration Management: Digi Remote Manager has what other IoT device management platforms don't: the ability to configure all of your devices at once, make individual configuration changes, and still manage those specialized configurations in groups. Create a group and individual configurations. Deploy rapidly and accurately. Let Digi RM monitor device security
  • Detection and Troubleshooting: Digi RM is always on, even during your network manager’s off hours. As your network monitoring solution, Digi RM lets you know when issues arise, sending alerts and delivering reports so your team can rest easy. At any time, they can gain the insights needed on the health of the entire network or individual devices and remotely troubleshoot, test, and reboot devices as needed. Put network monitoring tools to work for you, so you can work smarter.



IX15 Series Applications

  • Industrial
  • Oil and Gas
  • Water/Wastewater
  • Solar
  • Agriculture
  • Unattended retail applications that need to provide secure transactions



Product Specifications



SPECIFICATIONS Digi IX15
DIGI XBEE®
XBEE MODULE Standard: Digi XBee® 3 Zigbee 3.0 MMT (XB3-24Z8UM-J)
PRO: Digi XBee® 3 PRO Zigbee 3.0 MMT (XB3-24Z8UM)
XBEE STACK Zigbee® Standard and Zigbee PRO versions available
ZIGBEE TRANSMIT POWER Standard: 6.3 mW (8 dBm); PRO: 63 mW (18 dBm)
ZIGBEE RECEIVER SENSITIVITY -102 dBm
XBEE CONNECTOR (1) 50 Ω RP-SMA (center pin: male)
CELLULAR
CERTIFICATIONS Visit www.digi.com/resources/certifications for latest certifications
BANDS LTE Cat 4: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B38, B39, B40, B41
3G: B1, B2, B4, B5, B6, B8, B19
2G EDGE / GPRS: 850 / 900 / 1800 / 1900 MHz
CONNECTORS (2) 50 Ω SMA (center pin: female)
SIM SLOTS (2) Mini-SIM (2FF)
SIM SECURITY Behind SIM cover, secured with screw (#1 Phillips)
SOFTWARE AND MANAGEMENT
PYTHON Python 3
REMOTE MANAGEMENT Digi Remote Manager®; SNMP v2/v3 (user installed/managed)
LOCAL MANAGEMENT WebUI (HTTP/HTTPS); CLI (Telnet, SSH)
MANAGEMENT / TROUBLESHOOTING TOOLS FTP client, SCP; protocol analyzer with PCAP for Wireshark; event logging with syslog and SMTP client; NTP/SNTP; Nagios, Intelliflow, iPerf, Dynamic DNS, ping, traceroute
ETHERNET
PORTS (1) RJ-45; 10/100 Mbps (auto-sensing)
SERIAL
PORTS (1) RJ-45 10-pin (10P10C); RS-232/485; software selectable
- RS-232 DTE (RXD, TXD, RTS, CTS, DTR, DCD, DSR, RI)
- RS-485 (TX/RX+; RX/TX-); half-duplex
PHYSICAL
DIMENSIONS (L x W x H) 157 mm x 106 mm x 35 mm (6.18 in x 4.17 in x 1.38 in)
WEIGHT 0.39 kg (0.86 lb)
STATUS LEDs Power, SIM, LTE/Internet, XBee, signal strength (5)
ENCLOSURE Glass-filled polyphenylene sulphide (PPS) / IP30
POWER REQUIREMENTS
POWER INPUT 9 - 30 VDC, 1.0 A maximum
POWER CONSUMPTION 2.5 W typical (idle); 6 W typical (peak Tx/Rx)
ENVIRONMENTAL
OPERATING TEMPERATURE -40° C to 74° C (-40° F to 165° F); device performance may be impacted above 60° C (140° F)
RELATIVE HUMIDITY 5% to 95% (non-condensing)
APPROVALS
CELLULAR AND REGULATORY Visit www.digi.com/resources/certifications for the latest cellular and regulatory approvals
SAFETY UL60950-1, IEC62368-1, CB, EN62311, UL 121201/CSA 213 (Class 1, Div 2)
ENVIRONMENTAL ROHS3
EMISSIONS / IMMUNITY CE; RED; FCC Part 15, Subpart B*; ICES-003; AU/NZS CISPR32
WARRANTY
PRODUCT WARRANTY 3-year**
*Compliant to limits for a Class A digital device when tested with power supply 76002104.

**Standard 3-year warranty upgradeable to 5 years with the purchase of a Digi Remote Manager Premier 5-year subscription applicable to the product purchased only at the time of product purchase and with product registration at that time in Digi Remote Manager.

ENTERPRISE SOFTWARE Description
PROTOCOL SUPPORT HTTPS, FTP client, SSL, TLS v1.2, SCP (client and server), SFTP, SMTP client for use by scripts and the command line, SNMP (v2/v3), SSH; remote management via Digi Remote Manager®; protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS; dynamic DNS client compatible with BIND9/No-IP/DynDNS; captive portal, Intelliflow; Nagios, DNS server, NTP server, multicast, mDNS, IPerf
SECURITY IP filtering, stateful firewall, custom firewall rules (iptables), address and port translation; TLS 1.2 and above, OpenVPN client and server; VPN tunnels; authentication: RADIUS, TACACS+; certificates; MAC address filtering; VLAN support
VPN IPSec with IKEv1, IKEv2, NAT Traversal; OpenVPN client and server; GRE PN tunnels; cryptology: SHA-1/256/384/512, MD5, RSA; encryption: 3DES and AES up to 256-bit (CBC mode for IPsec); Diffie Hellman: DH groups 1-32 (CURVE448)
ROUTING/FAILOVER IP pass-through; NAT, NAPT with IP port forwarding; GRE; multicast routing; routing protocols: RIP (v1, v2) OSPF, BGP; IP failover: VRRP; automatic failover, Digi SureLink®
OTHER PROTOCOLS DHCP; dynamic DNS client compatible with No-IP/DynDNS





DATA SHEETS


Data Sheet:  IX15

Data Sheet:  Product Models Feature Comparison
