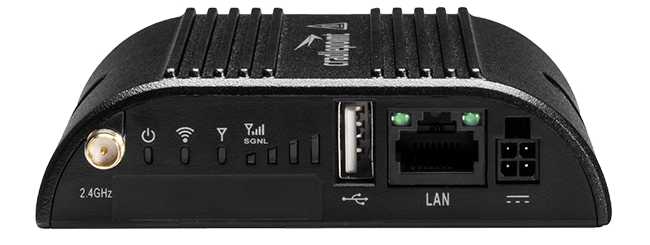

IBR200 Series

Industrial Wireless Router

4G Semi-Ruggedized Router  -  USA and Canada



IBR200 Series - Industrial Wireless Router - Pulse Supply

Semi-ruggedized, compact 4G LTE router for IoT applications

Cradlepoint’s NetCloud Service for IoT with the IBR200 router is a purpose-built, IoT networking solution with industry-leading features. With its compact size, external cellular and Wi-Fi antennas, and the capability to operate in a wide temperature range, the Cradlepoint IBR200 is ideal for use in IoT applications including plant and machinery controls, surveillance cameras, digital signs, kiosks, and ATMs.

The semi-ruggedized Cradlepoint IBR200 Series IoT router is designed for secure, cloud-managed IoT networking. The IBR200 enables the use of low-cost M2M/IoT data plans from cellular carrier/operators, and with NetCloud Perimeter, addresses the biggest gap in IoT: security.

With compact size, external mobile broadband and Wi-Fi antennas, and the capability to operate in a wide temperature range, the Cradlepoint IBR200 is ideal for use in IoT applications like plant and machinery controls, surveillance cameras, digital signs, kiosks, and ATMs.





Key Features



  • Low-cost with industry-leading security features for value-driven IoT networking solution
  • NetCloud Perimeter and advanced security for PCI-compliant networking of vulnerable IoT devices
  • Embedded Category 1 modem for cost-effective connectivity
  • Semi-ruggedized for wider deployment options
  • Comprehensive 24x7 support included for business-critical applications
  • Extensibility with GPIOs and NetCloud SDK and API for custom solutions



IBR200 Series Details

  • Stateful Firewall Throughput: 60 Mbps
  • WAN Connectivity: 4G Cat 1
  • LAN Connectivity: Wi-Fi 4, 10/100
  • Management: NetCloud



IB200 Series Applications

  • Plant and Machinery Controls
  • Surveillance Cameras
  • Digital Signs,
  • Kiosks
  • ATMs.



Product Specifications



Category

IoT

Cloud Management

Yes

Wireless Connectivity

LTE

5G Status

None

Form Factor

Metal

Ethernet Ports

1 FE (LAN only)

Console Ports

1

Serial Ports 0
Dual-Modem Support

No

Network Operator Standards

PTCRB (U.S.), GCF (global)

Network Operator Certifications

AT&T, Verizon

Regions

North America, Latin America, Europe, Africa & Middle East, Asia-Pacific

Public Safety Networks

Verizon Frontline

Throughput

60 Mbps (Firewall)

VPN Tunnel Count

2

Wi-Fi

802.11 b/g/n (Wi-Fi 4)

GNSS/GPS

Passive

PoE

No

Operating Temperature

-20 °C to 60 °C (-4 °F to 140 °F)





DATA SHEETS


Data Sheet:  IBR200 Series
