WR21

Industrial Wireless Router

3G/4G Ruggedized Router  -  USA and Canada

(recommend IX20 as a replacement as of 11/2021)

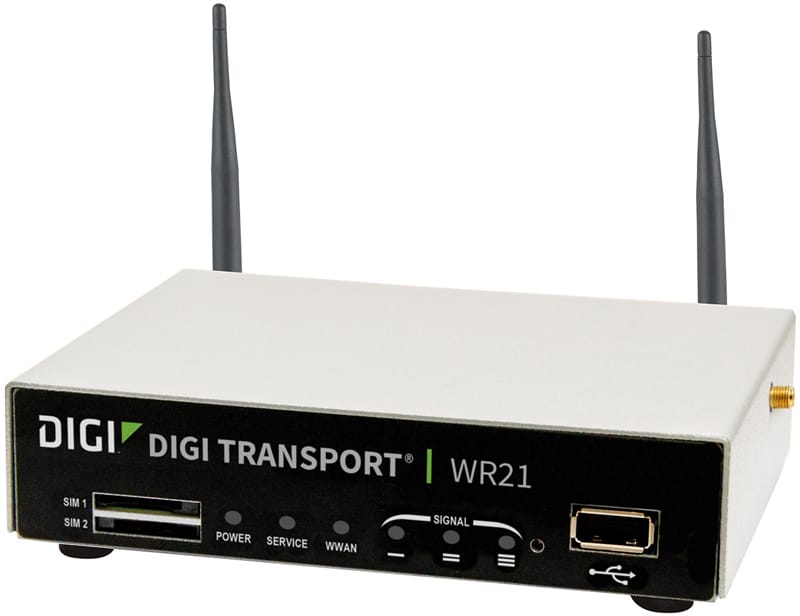

WR21 - Industrial Wireless Router - Pulse Supply

Compact, semi ruggedized LTE router with Industrial feature set and reliable, cost-effective connectivity for critical industrial applications.

The TransPort WR21 is a full-featured cellular router offering the flexibility to scale from basic connectivity applications to enterprise-class routing and security solutions. With its high-performance architecture, The TransPort WR21 provides primary and backup WWAN connectivity over 3G/4G/LTE. The platform includes software selectable multi-carrier and regional LTE variants.

Flexible power and connectivity options, along with extended temperature ranges make the TransPort WR21 a versatile product for both commercial and industrial environments. The TransPort WR21 supports enterprise software features for advanced security (stateful firewall, MAC filtering, VPN), redundancy (VRRP+, SureLink®), and management (SNMP, event logging, analyzer trace, and QoS), enabling the product to be used in PCI or NERC-CIP compliant applications.

Gain critical insights into your deployed devices and manage your network with Remote Manager® (Digi RM)— the command center for your deployment that facilitates easy setup, mass configuration, maintenance, and support for hundreds or even thousands of remote Digi devices. Digi RM lets you evaluate, update and configure your Digi enterprise products — and the health of your network — at scale after deployment.





Key Features



  • Compact, low-cost, flexible cellular routing platform with an enterprise feature set
  • Enterprise software with advanced routing protocols,
  • VPN and stateful firewall
  • High-performance architecture, flexible power, and extended operating temperature
  • 3G/4G cellular interface supporting LTE and HSPA+ networks worldwide
  • Redundant connectivity with dual SIMs and Digi SureLink
  • Digi Remote Manager platform for easy setup, mass configuration and management



WR21 Series Details

  • Automated Network Monitoring: To keep tabs on dozens, hundreds, or thousands of active connected devices requires network monitoring software. Human eyes can't keep up. With Digi RM remote monitoring tools, you're in command. As your IoT device management platform, Digi RM watches your network for disruptions and intrusions, and lets you know when you need to take action. Set alerts for important conditions. Get reports on network performance. Check on any device, anywhere, anytime.
  • Firmware Updates: Today's IoT devices are smarter, more feature-rich, and have more tasks to perform at the edge. And they are not static. You may need to update the firmware to enhance functionality, download custom scripts, keep your devices in compliance with corporate security policies, or deploy patches for threats to IoT security. Digi Remote Manager puts the network management tools in your hands to deploy firmware updates or send files to your devices in minutes, even if you have a network of many thousands of devices. Manage your dynamic network with a few clicks. Keep your devices secure.
  • Configuration Management: Digi Remote Manager has what other IoT device management platforms don't: the ability to configure all of your devices at once, make individual configuration changes, and still manage those specialized configurations in groups. Create a group and individual configurations. Deploy rapidly and accurately. Let Digi RM monitor device security
  • Detection and Troubleshooting: Digi RM is always on, even during your network manager’s off hours. As your network monitoring solution, Digi RM lets you know when issues arise, sending alerts and delivering reports so your team can rest easy. At any time, they can gain the insights needed on the health of the entire network or individual devices and remotely troubleshoot, test, and reboot devices as needed. Put network monitoring tools to work for you, so you can work smarter.



WR21 Series Applications

  • Industrial
  • Commercial
  • Enterprise



Product Specifications



SPECIFICATIONS Digi TransPort WR21
WIRELESS INTERFACES
CELLULAR*
CERTIFICATIONS Visit https://www.digi.com/resources/certifications for latest certifications
LTE - NORTH AMERICA (M5) LTE Cat 4: 700(B12,13)/850(B5)/AWS(B4)/1900(B2)
3G HSPA+: 850/1900 MHz
Transfer rate (max): 150 Mbps down, 50 Mbps up
Approvals: PTCRB, AT&T, Telus (pending)
LTE - EMEA/APAC (M7) LTE Cat 4: 800(B20)/900(B8)/1800(B3)/2100(B1)/2600(B7)
HSPA: 900/2100 MHz
EDGE: 900/1800 MHz
Transfer rate (max): 150 Mbps down, 50 Mbps up
LTE 450 - EMEA/APAC (M2) LTE Cat 3: 450(B31)/800(B20)/1800(B3)/2600 (B7)
HSPA+: 900/2100 MHz
EDGE: 900/1800 MHz
Transfer rate (max): 100 Mbps down, 50 Mbps up
GLOBAL HSPA+ (U9) 3G HSPA+: 850/900/1700AWS/1900/2100 MHz
2G EDGE/GPRS: 850/900/1800/1900 MHz
Transfer rate (max): 21 Mbps down, 5.76 Mbps up
Approvals: PTCRB
EMEA CDMA EV-DO (D5) 3G EVDO Rev B: 450 MHz
2G 1XRTT: 450 MHz
Transfer rate (max): 14.7 Mbps down, 5.4 Mbps up
GSM-R (R5) 900/1800/1900 MHz (TRM-5); GPRS Class 10; transfer rate (max): 42.8 Kbps up, 85.6 Kbps down
CONNECTORS (2) 50 Ω SMA (center pin: female)
SIM SLOTS (2) Mini-SIM (2FF)
SIM SECURITY Optional SIM slot cover plate
GPS**
CHANNELS 12 channel, continuous tracking
SENSITIVITY Tracking1: -161 dBm; Acquisition2 (Assisted, non-LTE): -158 dBm; Acquisition (Assisted, LTE): -153 dBm; Acquisition (Standalone): -145 dBm
PROTOCOL NMEA 0183 V3.0
COLD START < 0.2 m/s
HORIZONTAL ACCURACY < 2 m (50%); < 5 m (90%)
VELOCITY ACCURACY < 0.2 m/s
OTHER
ADDITIONAL FEATURES Send GPS via UDP/IP, TCP/IP (up to two destinations) or serial; Customize and/or send data using Python; GPS status query; Time source capable
WIRED INTERFACES
SERIAL
PORTS (1) DB-9; DCE
DTE/DCE DCE
SIGNAL SUPPORT TXD, RXD, RTS, CTS, DTR, DCD, DSR, RI
FLOW CONTROL Software (XON/XOFF), hardware supported
ETHERNET
PORTS (2) RJ-45; 10/100 Mbps (auto-sensing)
USB
PORTS (1) USB 2.0 Type A
MANAGEMENT
REMOTE MANAGEMENT Digi Remote Manager (cloud-based); SNMP v1/v2c/v3 (user-installed/managed)
LOCAL MANAGEMENT Web interface (HTTP/HTTPS); CLI (Telnet, SSH, SMS, serial port)
MANAGEMENT/
TROUBLESHOOTING TOOLS		 FTP, SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog and SMTP; NTP/SNTP
MEMORY 128 MB NAND Flash/128 MB DDR2 SDRAM
POWER
INPUT 9 – 30 VDC, 18 W min power source required
CONSUMPTION 4 W typical (Idle); 12 W typical (Peak Tx/Rx)
CONNECTOR Depending on model: locking barrel or screw-down removable terminal block
PHYSICAL
DIMENSIONS (L X W X H) 100 mm x 131 mm x 32 mm (3.9 in x 5.2 in x 1.3 in)
WEIGHT 0.49 kg (1.08 lb)
STATUS LEDS Power, service, WWAN, 3x signal strength
ENCLOSURE MATERIAL/RATING Industrial (metal)/ IP30
MOUNTING Brackets for wall mount & DIN rail sold separately
ENVIRONMENTAL
OPERATING TEMPERATURE *** -35° C to 70° C (-31° F to 158° F); reduced cellular performance may occur above +50° C (122° F)
STORAGE TEMPERATURE -40° C to 85° C (-40° F to 185° F)
RELATIVE HUMIDITY 0% to 95% (non-condensing) @ 25° C (77° F)
ETHERNET ISOLATION 1.5 kV RMS
SERIAL PORT PROTECTION (ESD) 15 kV
HAZARDOUS (CLASS 1 DIV 2) Models with serial (RS-232/422/485) compliant to ANSI/ISA-12.12.01-2015
APPROVALS
CELLULAR PTCRB, NAPRD.03, GCF-CC, R&TTE, EN 301 511
SAFETY UL 60950, CSA 22.2 No. 60950, EN60950
EMISSIONS/IMMUNITY CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55022 Class B
WARRANTY
PRODUCT WARRANTY 3-year****
*Optional hardware. Lead time and/or minimum order quantity may apply. Contact Digi Sales for details.
**Transfer rates are theoretical and network operator dependent
***Standard temperature power supplies may reduce temperature range.
****Standard 3-year warranty upgradeable to 5 years with the purchase of a Digi Remote Manager Premier 5-year subscription applicable to the product purchased only at the time of product purchase and with product registration at that time in Digi Remote Manager.


ENTERPRISE SOFTWARE DESCRIPTION
PROTOCOL SUPPORT HTTP, HTTPS, FTP, SFTP, SSL, SMTP, SNMP (v1/v2c/v3), SSH, Telnet and CLI for web management; remote management via Digi Remote Manager; SMS management, protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS; Dynamic DNS client compatible with BIND9/No-IP/DynDNS
SECURITY/VPN Stateful inspection firewall with scripting, address and port translation; VPN: IPSec with IKEv1, IKEv2, NAT Traversal; SSL, SSLv2, FIPS 197, open VPN client and server; PPTP, L2TP; (5) VPN tunnels (not upgradable); Maximum VPN tunnels available: 5; Cryptology: SHA-1, MD5, RSA; Encryption: DES, 3DES and AES up to 256-bit (CBC mode for IPsec); Authentication: RADIUS, TACACS+, SCEP for X.509 certificates; Content filtering (via 3rd party); MAC address filtering; VLAN support; Ethernet port isolation
ROUTING/FAILOVER IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; GRE; Multicast routing; Routing protocols: PPP, PPPoE, RIP (v1, v2) OSPF, SRI, BGP, iGMP routing (multicast); IP failover: VRRP, VRRP+TM; Automatic failover/failback to second GSM network/standby APN; Verizon NEMO/DMNR for primary wireless access
OTHER PROTOCOLS DHCP; Dynamic DNS client compatible with BIND9/No-IP/DynDNS; QoS via TOS/DSCP/WRED; Modbus UDP/TCP to serial; X.25 including XOT, SNA/IP, TPAD and PAD; protocol switch; Modbus bridging for connecting diverse field assets





DATA SHEETS

Data Sheet:  WR21

Data Sheet:  Product Models Feature Comparison
