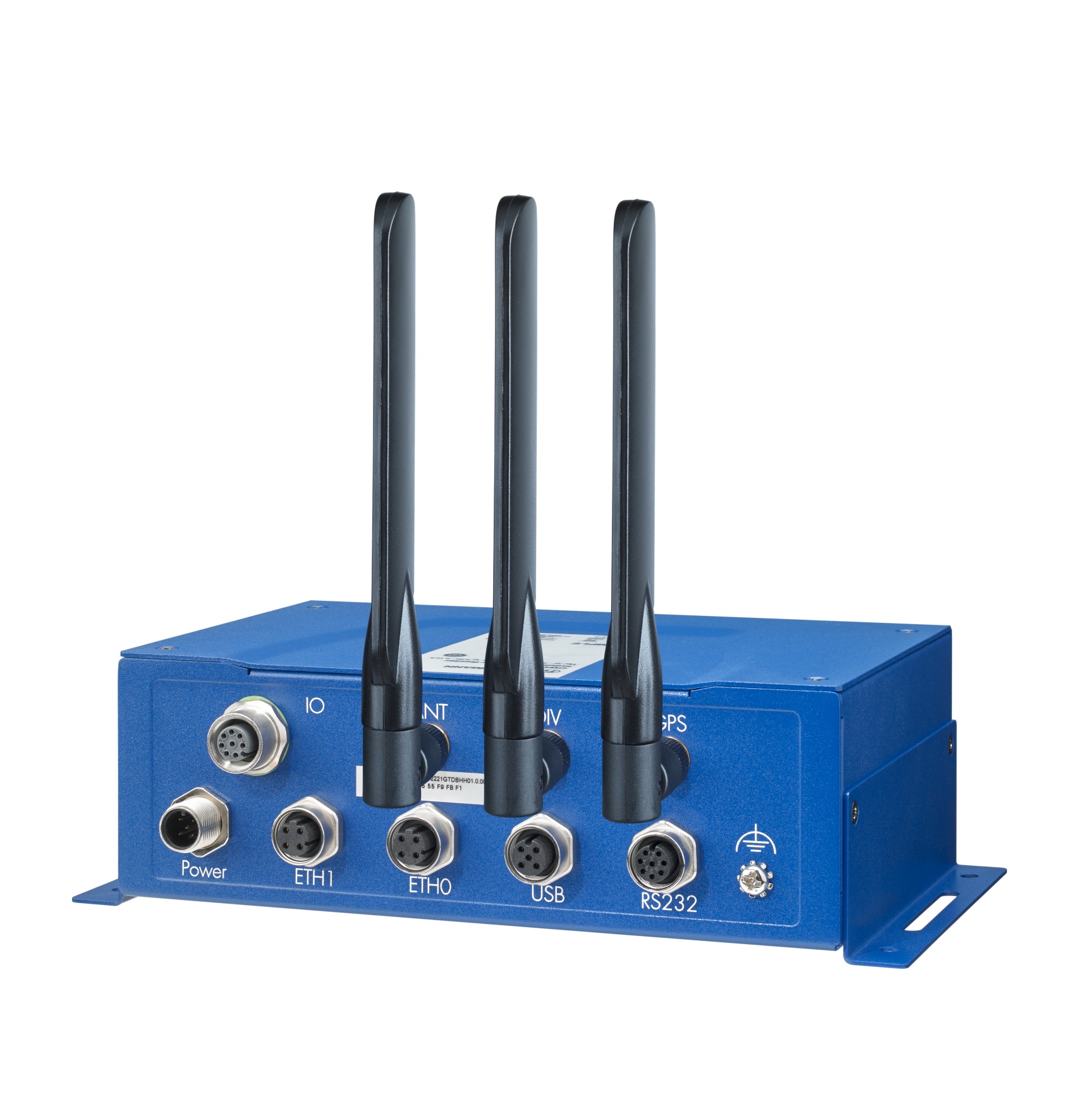

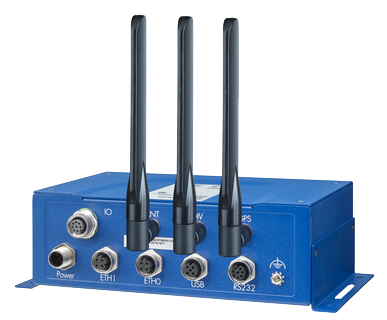

OWL LTE M12

Industrial Wireless Router

4G Ethernet Gateway -  Europe Certification


OWL LTE M12 - Industrial Wireless Router - Pulse Supply

The OWL LTE M12 is Cellular Router and Gateway. Optimized for distributed 4G applications with edge pre-computing



Transportation EN50155 Cellular Router and Gateway. Optimized for 4G applications with edge pre-computing. VPN and openly programmable and extendable Linux. VRRP for router redundancy. The unit supports dead reckoning for GPS even inside tunnels.

The OWL LTE M12 is a single box cellular router with a rich set of features that provide wireless connectivity, internet, and remote access solutions to transportation settings using high-speed cellular technologies and embedded GPS functionality.



Key Features



  • Fast wireless connectivity and reliable remote access – provide the best wireless experience and manage networks remotely through fast and reliable wireless cellular technologies, including LTE, UMTS/HSPA+, and GSM/GPRS/EDGE technologies.
  • Optimal performance – achieve high network availability in harsh environmental settings with this ruggedly designed, feature-rich cellular router.
  • Easy to configure and customize – install and adjust this device with minimal product knowledge. Its open LINUX platform also allows for advanced customization.



OWL LTE M12 Details

  • Enables high-speed wireless connectivity through LTE, UMTS/HSPA+ and GSM/GPRS/EDGE technologies
  • Operates as a single box Ethernet / WWAN gateway (cellular router)
  • Offers many features and interfaces, including two LAN ports (10/100BASE-TX), an RS232 interface, a USB interface, two digital inputs, one digital output, and an SD card slot
  • Provides embedded GPS and optional dead-reckoning functionalities for innovative navigation and location tracking purposes
  • Executes GSM calls via session initiation protocol (SIP)
  • Enables a configurable web interface with customizable functionalities through scripting and application-specific software modules
  • Withstands harsh conditions with a robust, vibration-proof design
    – Wall mountable
    – Extended temperature range from -40°C to +75°C
    – IP40 metal housing
    – M12 connectors
  • Meets various standards and approvals including those for the transportation industry:
    – Safety of Industrial Control Equipment: EN 60950-1
    – Radio: EN 301 511, Radio Requirements GSM
  • EN 301 908-1 and EN 301 908-2, Radio Requirements UMTS/HSPA
  • EN 62311, Human Exposure restrictions for EM-Fields
    – Transportation: EN 50155, EN 50121-4, EN 45545-2 HL3, E8
    – Environmental: EN 61000-6-2, EN 301 489, EN 61131 for use in an automation environment



OWL LTE M12 Applications

  • This industrial cellular router is ideal for any application where high-speed wireless and reliable remote access are critical, despite exposure to harsh industrial conditions. It offers specific value in the railway and public transportation sectors. The feature set also makes it useful in mobile applications, such as on robots or cranes, where exposure to the elements or heavy vibration is common.



Product Specifications



Product description

Type

OWL LTE M12-S20T5A12221GTDBHHXX.X.XX

Name

OWL LTE M12

Description

Transportation EN50155 Cellular Router and Gateway. Optimized for distributed 4G applications with edge pre-computing. VPN and open extendable Linux. VRRP for router redundancy. Dead reckoning for GPS even inside tunnels.

Availability

Available

Port type and quantity

2x Ethernet, 2x Antenna, 1x GPS, 2x SIM, 1x Power, 4x I/O, 1x USB, 1x Serial, 1x MicroSD

Serial

8-port M12 A-Coded (connector NOT included): RS232 , Serial2TCP , Serial2UDP

Country certification

Europe (Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech, Denmark, Estonia, Finland, France, Germany, Great Britain, Greece, Hungary, Ireland, Italy, Latvia, Lituania, Luxembourg, Malta, Netherland, Poland, Portugal, Romania, Sweden, Slowakia, Slowenia, Spain), Iceland, Liechtenstein, Norway, Switzerland, Turkey

Hard disk space

Can be extended with MicroSD (up to 64GB)

More Interfaces

USB interface

1 x 5-pin M12 A-coded socket (connector NOT included)

SIM Cards

2x 2FF (3V, 1.8V), only one active at a time, can be configured independently, automatic switch-on connection failure

Ethernet

2x Ethernet: 10/100 Mbit/s (M12 D-Coded)

Power Supply

M12 A-coded 5-pin (connector NOT included)

Signaling contact

8-port M12 A-Coded (connector NOT included): 2x Digital Input, 2x Digital Output

Radio technology

Antenna connector

3 x SMA Female (Cellular, Diversity, GPS)

Frequency band

GPRS/EDGE (2G): 900(Band 8) /1800(Band 3) MHz, UMTS/HSPA+ (3G): 900(Band8) /2100(Band 2) MHz, LTE (4G): 800(Band 20) /900(Band 8) /1800(Band 3) /2100(Band 1) /2600(Band 7) MHz

Transmission rate

LTE Category 4: 150 Mbit/s Download, 50 Mbit/s Upload

Additional radio features

GNSS (GPS, GLONASS, Galileo, QZSS), Dead Reckoning

Power requirements

Current consumption

Idle 2.5 W, Average 4 W, Maximum 11 W

Operating Voltage

12 V DC to 36 V DC, PoE PD on request

Power consumption

4 to 11 W

Redundancy functions

Dual VRRPv2 (with ping probes), Dual VRRPv3 (with ping probes), multiple routed interfaces (ping monitoring, failover and load balancing), PPPoE bridge mode

Diagnostics features

Monitoring

Syslog (UDP), SNMPv1/2c/3

Security features

Authentication

User Management (local, RADIUS, TACACS+, mixed)

Stateful inspection firewall

Static Firewall IPv4/IPv6 with Incoming and Forwarding Ruleset, DoS protection

Service

Other services

DHCP Server (IPv4/IPv6, dynamic and static leases, IPv6 Prefix Delegation, DNS proxy), DynDNS client, PPPoE, FTP server, E-Mail via SMTP, SMS (notifications and commands), Telnet server

Software

Operating system

Custom embedded Linux with Busybox Shell

VPN

OpenVPN, IPSec, GRE, L2TP, PPTP

Switching

VLAN (via Scripting), tunneled VLANs (via Scripting) , IGMP

Management

HTML5, SSH, SNMPv1/2c/3, Automatic configuration and firmware fetch from a web- or FTP server, backup and restore with drag & drop

Diagnostics

One-click support report package, System log, Linux kernel log, reboot log, signal strength history (60 days), SSH Linux shell, Signal strength LED indicators

Configuration

Simple to edit text file configuration, HTTP, HTTPS, SMS, SSH, Telnet, 4 Configuration Profiles, automatic via web/FTP, SNMPv1/2c/3

Security

HTTPS, SSH, Authentication with RADIUS or TACACS+, activate cellular interface with SMS, Ethernet 802.1X (EAP-PEAP/MsCHAPv2 or EAP-TLS)

Time synchronization

SNTP Client, SNTP Server, GPS

Routing

Static unicast routing, Multinetting, IP masquerading, Port forwarding, Multiple routes with priority and load sharing, 1:1 NAT

Dynamic routing

Dual VRRPv2 (with ping probes), Dual VRRPv3 (with ping probes), multiple routed interfaces (ping monitoring, failover, and load balancing)

Ambient conditions

MTBF (MIL-HDBK 217F: Gb 25 ºC)

38 Years

Operating temperature

-40-+70 °C

Storage/transport temperature

-40-+85 °C

Relative humidity (non-condensing)

0-95 %

Protective paint on PCB

Yes (conformal coating)

Dimensions (WxHxD)

203x62x127 mm

Weight

960

Housing

Metal

Mounting

Wall mounting

Protection class

IP40

Approvals

Safety of industrial control equipment

EN 60950-1

Safety of information technology equipment

EN 60950-1

Environmental

EN 61000-6-2, EN 301 489, EN 61131 for use in an automation environment

Transportation

EN 50155 (Onboard), EN 50121-4 (Trackside), EN 45545-2:2013 + A1:2015 HL3 (Fire)

Radio

EN 301 511, EN 301 489(-1,-7,-24), EN 301 908(-1,-2,-13)

Scope of delivery and accessories

Modules and components

User modules pre-installed: GPS, User modules as a separate download: GPS Dead Reckoning, Lua, Python, NodeRED

Accessories

942042105 Indoor LTE Antenna, 942042108 Indoor GPS antenna, 942087001 Terminal cable M12 to DB9, 933170100 M12 A-coded connector (Power/USB), 934637655 Ethernet M12-D to RJ45 (4 meters) , 107521 Single-Ended M12-A (5 meters) for I/O or RS232, 943662015 Rail Power Supply

Scope of delivery

A device, Wall mount brackets

Further Instructions

Update and Revision

Revision Number: 0.88 Revision Date: 06-29-2021





Have more questions about Industrial Wireless Router solutions? Need to Purchase Belden Industrial Wireless Router Products? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
