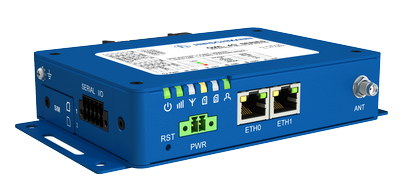

OWL LPWAN
Industrial Wireless Router
4G Ethernet Gateway - USA and Canada
The Industry 4.0 and Industrial IoT Cellular Router and Gateway. Optimized for 4G Low Power WAN applications (LTE Cat. M1) with edge pre-computing. VPN and openly programmable and extendable Linux
The OWL 4G family of routers and gateways enable secure, high-speed wireless connectivity and remote access for industrial applications in an increasingly connected world.
Edge computing configuration reduces infrastructure costs by providing an effective way to monitor and troubleshoot machines – without going on-site or creating connections where wired networks are not feasible.
The expanded OWL 4G family covers all global frequencies. With variants for Europe, North America, and Australia, organizations will be equipped to break into new markets with the ability to establish a secure connection anywhere in the world.
Key Features
- High-speed wireless connectivity through 4G, LTE, HSPA+, UMTS, EDGE, or GPRS technology
- Two Ethernet 10/100 Mbit/s ports, RS232 and RS485 interfaces, and built-in digital I/O connectivity
- Low Power WAN - Less than 11 Watt total power consumption
- Robust metal cover with DIN and wall mount options
- Operating temperature range of -40°C to +65°C
- Fast VPN tunnel creation to ensure safe communications
- Configurable web interface with customizable functionalities
OWL LPWAN Details
- Two-in-one solution offering both routing and security capabilities
- Hardened for substations
- Operating environment of -40 °C to +65 °C
- Advanced routing and networking functions
- Dual SIM cards use two different network operations in combination with the automatic switchover function
- Rich set of interfaces (RS232, USB interface, Digital I/Os,)
- Open LINUX platform for scripting and extensive device configuration
- Secure VPN Tunneling (OpenVPN, IPsec VPN) through X.509 authentication
- Supports functions: DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, control by SMS
OWL LPWAN Applications
- Cellular Remote Connectivity for Machine Builders, Discrete Manufacturing, Utilities, and Automotive
- Custom logic functions written in languages like C, C++, Lua, Python, NodeJS, or Node-Red for edge compute function on the device
- Reliable communications with geographically dispersed sites
- Suitable for oil and gas plants, water and wastewater stations, and discrete manufacturing facilities
- ProSoft CONNECT with IT-secure features such as single sign-on, one-time-use passwords, 256-Bit AES encryption, virtual Lockout-Tagout (vLOTO™)
- Cloud support
- Whitelisting for limiting remote asset access
Product Specifications
