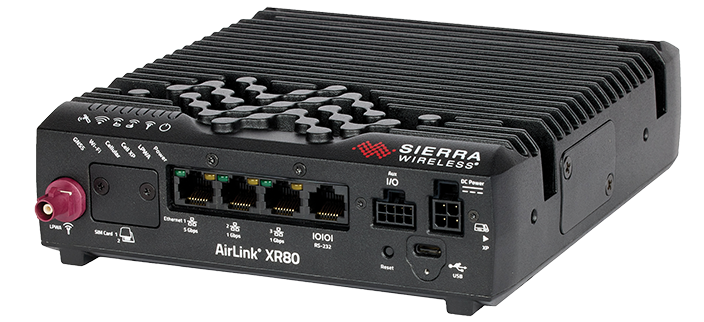

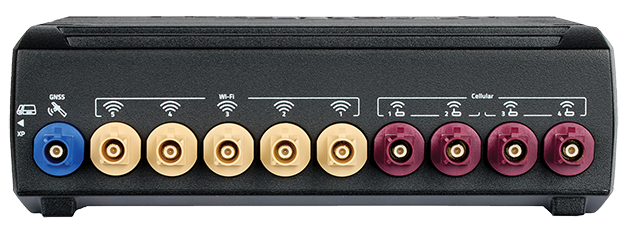

XR80

Industrial Wireless Router

5G/4G LTE  Industrial Cellular Router  -  USA, Canada, and Global

5G High-Performance Multi-Network Router for Public Safety, Field Service Fleets, and Mission-Critical Fixed Applications.

The supercharged AirLink XR80 is optimized for fixed and mobile applications. The available dual-5G cellular radio and 4X5 MIMO Wi-Fi 6 deliver flexibility for customized configurations. The AirLink XR80 supports complete device-to-cloud security, reduces your total cost of ownership with ALMS Out-of-Band management, and with the cartridge-based design, enables long-term expandability and upgradability.

The AirLink XR80 is a fully-supported, out-of-the-box solution complete with integrated device management and 24/7 technical support..

Key Features

• The XR80 is a High Speed 5G LTE Wireless Router
• Dual Cellular Modems with up to 4.14Gbps download (single radio option available)
• Dual SIM Slots
• FirstNet Ready
• Up to 10 VPN Tunnels
• Integrated with ACM VPN Server
• IPsec protocol with IKEv1/IKEv2 Encryption: 3DES/AES128/AES256
• Hashing: MD5/SHA1/SHA256/SHA512
• Key Exchange: DHGroup2/5/14/15/16/17
• FIPS 140-2
• Wi-Fi - 4x4 MIMO Wi-Fi 6 AP/STA up to 2.4Gbps 1x1 MIMO Wi-Fi 6 STA Rx only Support for 128 clients and WPA2/3Enterprise High output power 23 dBm (per chain) (Wi-Fi is Opitonal)
• Up to 4 Ethernet Ports
• Dual RS-232 Serial Port - RJ-45
• Auxiliary Port - GPIO
• One USB 3.2 Port
• GPS
• Power Port with Ignition Sensing
• Low-Profile Form Factor - At 2.1 inches short

XR80 Details

• Designed for fixed and mobile mission and business-critical applications that require ultimate connectivity and reliability Real-time connectivity with unmatched uplink and downlink speeds using 5G, LTE, Wi-Fi-6, and 5 Gbps Ethernet technology
• “Always-on” connectivity delivers consistent primary and backup connectivity for public and private networks using AirLink Cognitive Wireless
• Simplified set up and useability with new AirLink OS and upgraded AirLink Management Service (ALMS)
• New AirLink Premium with ALMS Out-of-Band Management provides zero-touch setup and reduced service calls
• Ready for your Edge computing workloads

XR80 Applications

• Ambulance/EMS
• Law Enforcement
• Utility Bucket Trucks
• Commercial Fleets
• Manufacturing
• Fixed Utility Applications
• Pipeline monitoring
• Remote Learning
• Retail, Digital Signage, and Security

Product Specifications

See  XR80 Data Sheet

See  XR80 Info Sheet

Have more questions about Industrial Wireless Router solutions? Need to Purchase Sierra Wireless Industrial Wireless Router Products? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
