LR54

Industrial Wireless Router

3G/4G Ruggedized Router  -  USA and Canada

Compact, semi ruggedized LTE router with Industrial feature set and reliable, cost-effective connectivity for critical industrial applications.

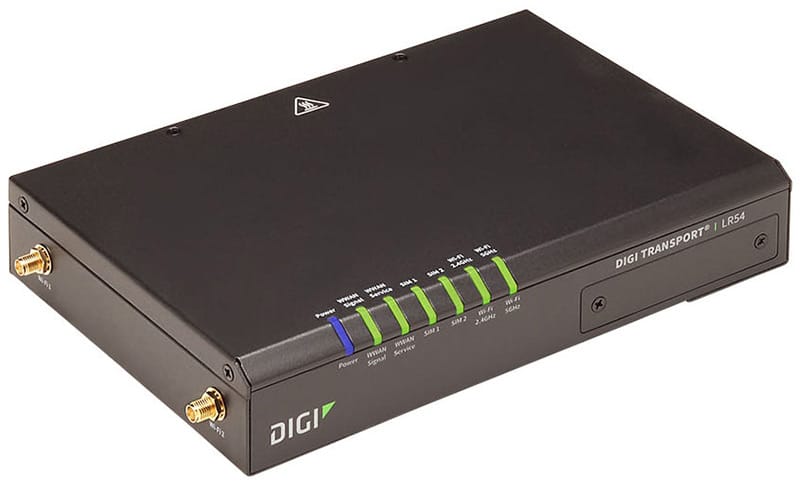

The TransPort LR54 is a high-speed LTE-Advanced networking platform designed for retail, commercial, and managed networking applications across distributed enterprises. Each device features an LTE-Advanced Cat 6 modem with speeds up to 300 Mbps and support for global deployments with a single hardware version, as well as a 4-port Gigabit Ethernet switch and serial port for console access. The routers include license-free enterprise software features like VPN, firewall, and SNMP.

The two FIPS models make use of an embedded FIPS 140-2 validated cryptographic module for all encryption and authentication functions. The LR54 FIPS model is often used as a VPN gateway to bridge local private subnets through public or untrusted networks, ensuring message privacy and integrity.

The Wi-Fi variant features dual-band, dual-concurrent 5 GHz and 2.4 GHz radios, personal/enterprise security, and multiple SSIDs for maximum range and throughput performance in M2M applications.

Key Features

• High-speed LTE Advanced (300 Mbps downlink) for digital content and business networking applications
• Optional 802.11 b/g/n/ac Wi-Fi supporting captive portal and content filtering
• Ability to run 2.4 GHz and 5.0 GHz Wi-Fi concurrently
• Automated fail-over/fail-back between Ethernet, Cellular (dual SIMs), and IPsec tunnels
• On-board Python environment for custom programming
• Digi Remote Manager® provides mass configuration, device management, and troubleshooting tools
• Digi TrustFence® security: authenticated boot, dedicated security co-processor, encrypted data storage, unique

LR-54 Series Details

• Automated Network Monitoring: To keep tabs on dozens, hundreds, or thousands of active connected devices requires network monitoring software. Human eyes can't keep up. With Digi RM remote monitoring tools, you're in command. As your IoT device management platform, Digi RM watches your network for disruptions and intrusions, and lets you know when you need to take action. Set alerts for important conditions. Get reports on network performance. Check on any device, anywhere, anytime.
• Firmware Updates: Today's IoT devices are smarter, more feature-rich, and have more tasks to perform at the edge. And they are not static. You may need to update the firmware to enhance functionality, download custom scripts, keep your devices in compliance with corporate security policies, or deploy patches for threats to IoT security. Digi Remote Manager puts the network management tools in your hands to deploy firmware updates or send files to your devices in minutes, even if you have a network of many thousands of devices. Manage your dynamic network with a few clicks. Keep your devices secure.
• Configuration Management: Digi Remote Manager has what other IoT device management platforms don't: the ability to configure all of your devices at once, make individual configuration changes, and still manage those specialized configurations in groups. Create a group and individual configurations. Deploy rapidly and accurately. Let Digi RM monitor device security
• Detection and Troubleshooting: Digi RM is always on, even during your network manager’s off hours. As your network monitoring solution, Digi RM lets you know when issues arise, sending alerts and delivering reports so your team can rest easy. At any time, they can gain the insights needed on the health of the entire network or individual devices and remotely troubleshoot, test, and reboot devices as needed. Put network monitoring tools to work for you, so you can work smarter.

LR-54 Series Applications

• Retail branch sites
• Self-service kiosks
• Remote offices/equipment
• Digital media installations
• Security monitoring equipment
• Guest and employee Wi-Fi users

Product Specifications

DATA SHEETS

Data Sheet:  LR54 Rail

Data Sheet:  Product Models Feature Comparison
