M2400 - Mobile Backhaul Router
With three option slots, DZS's EXK-M2400 Mobile Backhaul access/aggregation CSR (Cell Site Router) 1U height chassis provides a variety of solutions to configure the unit according to the network environment.

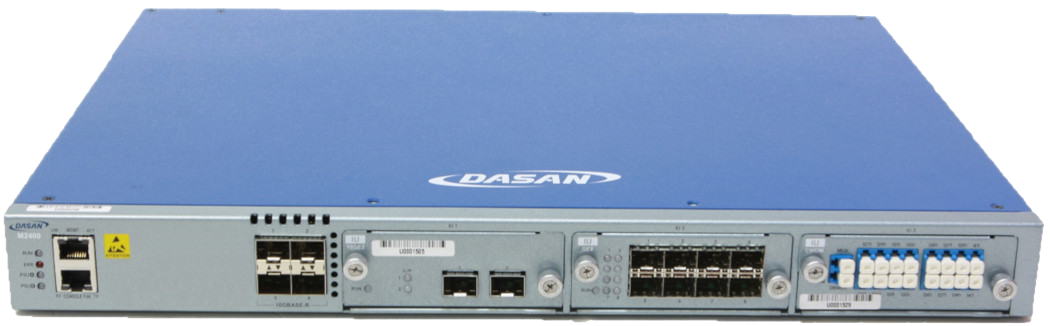

With three option slots, DZS's EXK-M2400 Mobile Backhaul access/aggregation CSR (Cell Site Router) 1U height chassis provides a variety of solutions to configure the unit according to the network environment. The EXK-M2400 provides four 10-gigabit Ethernet ports (SFP+, fixed) and 3 option slots; the option slots support 2x10GBase-R(SFP+), 8x100/1000Base-T (RJ45), 8x100/1000Base-X(SFP) or CWDM Filter(LC) modules, which can be used for uplinks or downlinks.
The option boards are compatible with the EXK-M1200 (except for the CWDM Filter).
Key Features
- Small footprint as Cell Site Router product
- Small footprint as Cell Site Router product
- IP/MPLS based network topology supplied
- Network management via OAM (802.1ag/Y.1731)
- Ethernet Ring Protection(G.8032)
- SNMPv1/v2/v3 with RMON, Alarms
- Improved QoS and differentiated traffic service
Service Scenario
The EXK-M2400 service interface connection points are located on the front, while the power connection points are located on the back to ensure equipmentlevel reliability with a redundant power source, the EXK-M2400 provides two PSU (Power Supply Units) in the back for DC or AC power modules.
Data Sheet
M2400 - Mobile Backhaul Router
