M1100 - Mobile Network/Mobile Backhaul

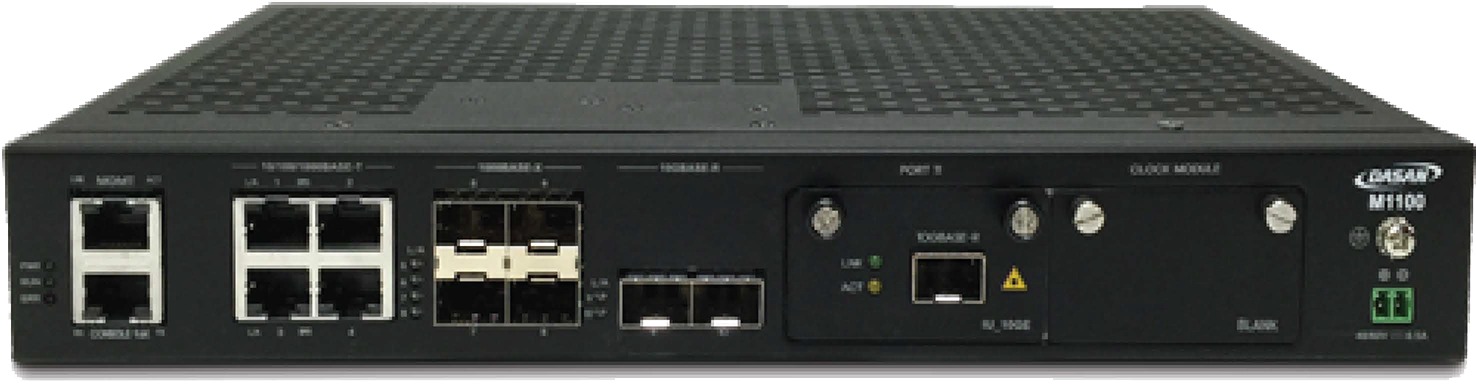

The M1100, a 1 U height & 10 inches width chassis with 1 option slot, is a total access switch optimized for expanding networks.

The  M1100, a 1 U height & 10 inches width chassis with 1 option slot, is a total access switch optimized for expanding networks. It provides 8-gigabit ethernet ports (4 electric, 4 optic, and 2 1 OGE fixed) with 1 option slot. By making use of the option slot, the user can configure the unit according to the network environment. The variety of options can be used as a 1x10GBase-R(SFP+) or 1xXGS-PON(SFP+) or GPON(SFP) as MDU. Moreover, M 1100 supports Clock Synchronization(1588v2).





     Zhone -  M1100 - Mobile Network, Mobile Backhaul



Key Features

  • At least two 10-Giga Ethernet port small footprint
  • At least two 10-Giga Ethernet port small footprint
  • 1 option for 10-Giga Ethernet
  • 1 option for XGS-PON or GPON
  • Fault Management(802.1 ag/Y.1731) Function
  • SNMPv1/v2/v3 with RMON, Alarms
  • Improved QoS and differentiated traffic service
  • RADIUS, TACACS+ Authentication
  • Realtime network traffic monitoring and analyzing
  • TWAMP Reflection function
  • IEEE1588v2 TC/BC, Synchronous Ethernet
  • Power: 1 PSU(-48VDC) Input
  • Hardern Environment : XGS-PON [-20'c-50'c] & 1 0GE/GPON [-40'C-65'C]
  • Outdoor Enclosure for IP65 with Fan-less



Pseudowire Services-TOM Migration to IP

The M1100 is compact in size, 19 inches in width and 10 inches in width, with a back-to-back design, all ports, and works on front. The M 1100 provides DC power input on the front panel with the DC power module mounted in the chassis. This ensures equipment-level reliability with a redundant power source.




Data Sheet

M1100 - Mobile Network/Mobile Backhaul




Have more questions about Zhone/DZS Broadband Connectivity products or need to purchase? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
