V2724 - Point-to-Point Switch (P2P)




V2724 1/10 Gigabit Ethernet Access Switches - 24 port Layer2 Access Switches with 1/10G optical or electrical subscriber interfaces and up to 100 Gbps total uplink capacity.

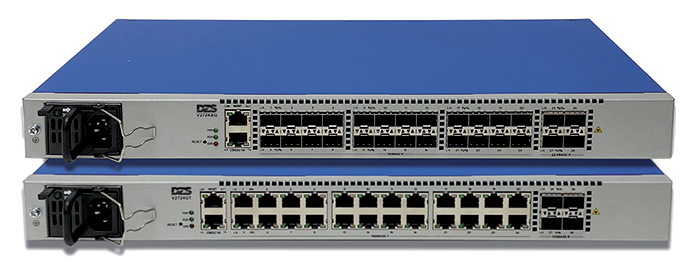

The V2724 is a compact Ether-net access switch optimized to enable network operators to off er high-speed broadband services easily and cost-effectively in P2P FTTH or FTTB architecture. The switch comes in four variants, either with optical or electrical interfaces, and either 1G or 10G subscriber interfaces.

Easy and Flexible Deployment - At only 1 HU and 240 mm deep, the V2724 can easily be deployed in new or existing installations. Due to its extended temperature range, this switch can also be installed in outdoor enclosures – all connections and service LEDs are easily accessible on the front panel. Both AC and DC power options are supported.

Features & Benefits -  Extensive access switch functionality for residential as well as business subscribers is supported, which allows Triple Play services (Internet access, video, and VoIP) as well as business services.
A wide range of Layer 2 features such as for example VLAN tagging, VLAN translation, private VLAN, multicast features, QoS, L2 control transparency, rate limiting, and security features are provided.



     Zhone - V2724 1/10 Gigabit Ethernet Access Switches



Key Features

  • Variants with 24x optical single fibre interfaces (1/10GE, SFP) or 24x 10/100/1000 Base-T (RJ45)
  • Uplinks via 4x 25G or 4x 10G with ring protection and link aggregation
  • Extensive Layer2 access switch functions with non-blocking switching architecture
  • Compact 1 HU chassis suitable for indoor and outdoor deployments, with AC & DC variants
  • Management via CLI or SNMPv2/v3, plus NETCONF /YANG enabled for SDN net-work



Non-blocking Switching Architecture - The V2724 offers a non-blocking switching architecture with a capacity of 340 Gbps (10G variants) or 88 Gbps (1G variants). This means that even at full capacity, it always has enough power reserves to transmit data at wire speed, thus providing subscribers with unlimited Internet access.

Backhaul - Four dedicated ports are provided in the form of SFP28/SFP+ cages, supporting 25G or 10G backhaul links. The V2724XG/XT switch variants offer 4 ports for 25GBase-R connections. Backhaul resilience and/or load sharing can be configured via RSTP/MSTP or link aggregation across all 4 ports.

Management - Unit management can be implemented via local serial or Ether-net management ports, as well as inband management. Telnet (CLI) and SNMP v1/v2/ v3 are supported for integration with operators’ network management platforms.




Data Sheet

V2724 - P2P Switch
