2425A1 - GPON ONT with RF Video




G-Series ONT with RF video enables subscribers to enjoy bandwidth-intensive multimedia services with DZS leading-edge GPON technology.

The DZS 2425A1 is an advanced, GPON compliant Optical Network Terminal (ONT) able to support service provider requirements for high-speed data, voice, and RF video in a cost-effective design. The ONT is fully compliant with ITU-T G.984 GPON standard with integrated, Class B+ on-board optics supporting 1310nm and 1490nm wavelengths. The 2425A1 offers data rates of 2.5Gbps downstream and 1.25Gbps upstream able to deliver access edge services and a full range of residential and business use cases required. With unique DZS’s software management features, subscribers can enjoy hyper-connected multimedia services much easier, faster, and more reliably than ever before.

The 2425A1 GPON ONT provides four 10/100/1000 Mbps LAN ports, two FXS Voice ports, and one RF Video port. The ONT supports wire-speed L2 bridging and L3 gateway features, with carrier-grade voice services.

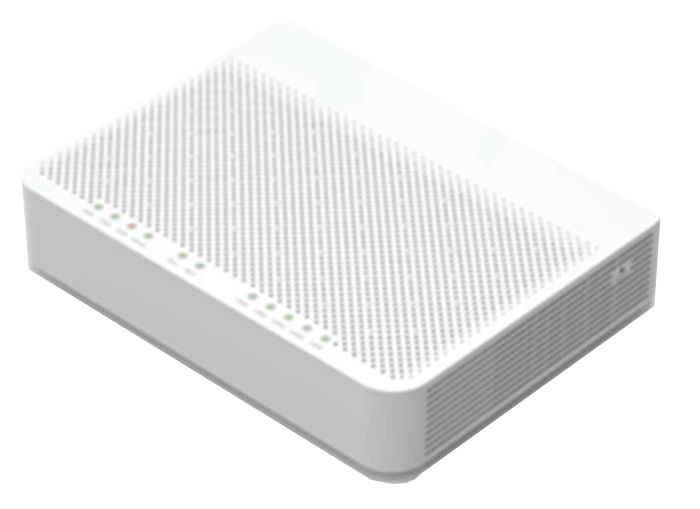

     Zhone -2425A1 GPON ONT with RF Video



Key Features

  • Supports 2.5Gbps/1.25Gbps (Downstream/Upstream) with integrated GPON WAN interface
  • Four gigabit multi-rate 10/100/1000M Ethernet interfaces
  • Two POTS interfaces compliant to SIP and MGPC telephony standards
  • One RF F-connector interface with a wide RF passband of 47 – 1,000MHz



Service Scenario

The GPON network consists of an Optical Line Termination (OLT) located at the Central Office, and a set of residential Single-Family Unit (SFU) and Multi-Dwelling Unit (MDU) locations with Optical Network Terminals (ONTs). Between them is the optical distribution network (ODN) comprised of fibers, passive optical splitters, and couplers. RF Video is combined with the GPON signals with modulated 1550nm wavelength and de-multiplexed at the ONT into RF signals.

The 2425A1 ONT supports 2.5G capable downlinks using the GPON standard. Services include High-Speed Internet (HIS), Packet Voice, IPTV, RF and OTT video, and cloud-enabled services to multi-media devices.




Data Sheet

2425A1 - GPON ONT with RF Video - Residential Gateway
