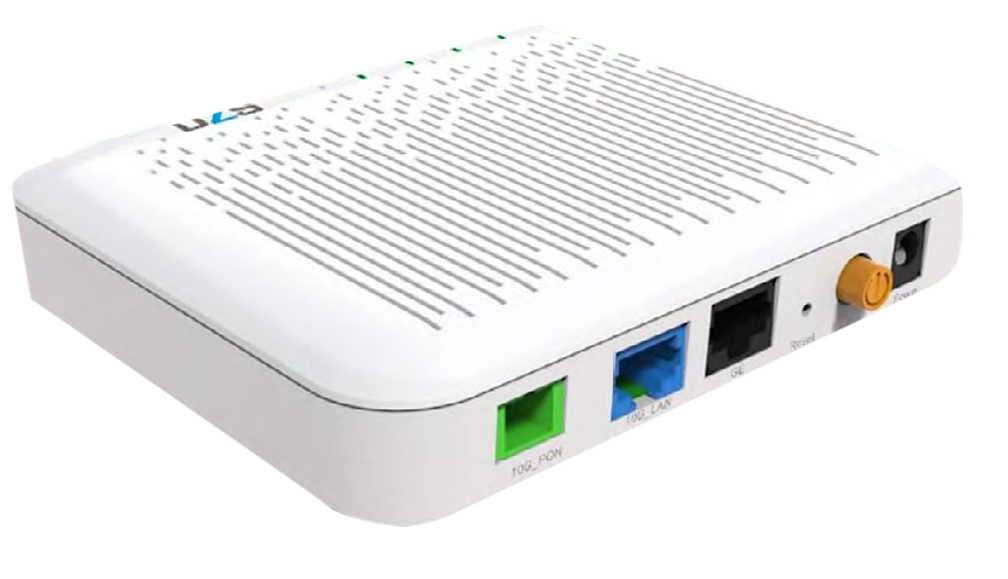

5302 - XGS-PON ONT




Cost-optimized 10 Gigabit X-Series ONT enables subscribers to enjoy bandwidth-intensive multimedia services with leading-edge XGS-PON technology.

The DZS 5302 is a high-performance, XGS-PON compliant Optical Network Terminal (ONT) able to support service provider requirements for high-speed data and voice in a cost-effective design. The ONT is fully compliant with ITU-T G.9807.1 XGS-PON standard with integrated, onboard optics supporting 1270nm and 1577nm wavelengths. The 5302 offers symmetrical data rates of 10Gbps downstream and 10Gbps upstream able to deliver access edge.

The DZS 5302 ONT is ideal for FTTH or small business deployments in bridging-only applications where high-speed data must be transported reliably. With unique DZS’s software management features, subscribers can enjoy hyper-connected multimedia services faster, easier, faster, and more reliably.



     Zhone - 5302 - XGS-PON ONT  - Residential Access



Key Features

  • Supports 10Gbps/10Gbps (Downstream/Upstream) with integrated XGS-PON WAN interface
  • High capacity multi-rate 1G/2.5G/5G/10G Ethernet interface
  • One gigabit multi-rate 10/100/1000M Ethernet interfaces



The 5302 ONT features 100M/1G/2.5/5/10Gbps and 100M/1G/2.5Gbps auto-sensing LAN Ports in a compact enclosure for indoor use. The ONT may be wall-mounted inside the home or placed on a desktop.

The XGS-PON network consists of an Optical Line Termination (OLT) located at the Central Office, and a set of residential Single-Family Units (SFU) and Multi-Dwelling Unit (MDU) locations with Optical Network Terminals (ONTs). Between them is the optical distribution network (ODN) comprised of fibers, passive optical splitters, and couplers. The 5302 ONT support 10 Gigabit symmetrical data using the XGS-PON standard. Services include High-Speed Internet (HIS), Packet Voice, IPTV, OTT video, and cloud-enabled services to multi-media devices.




Data Sheet

5302 - XGS-PON ONT - Residential Gateway
